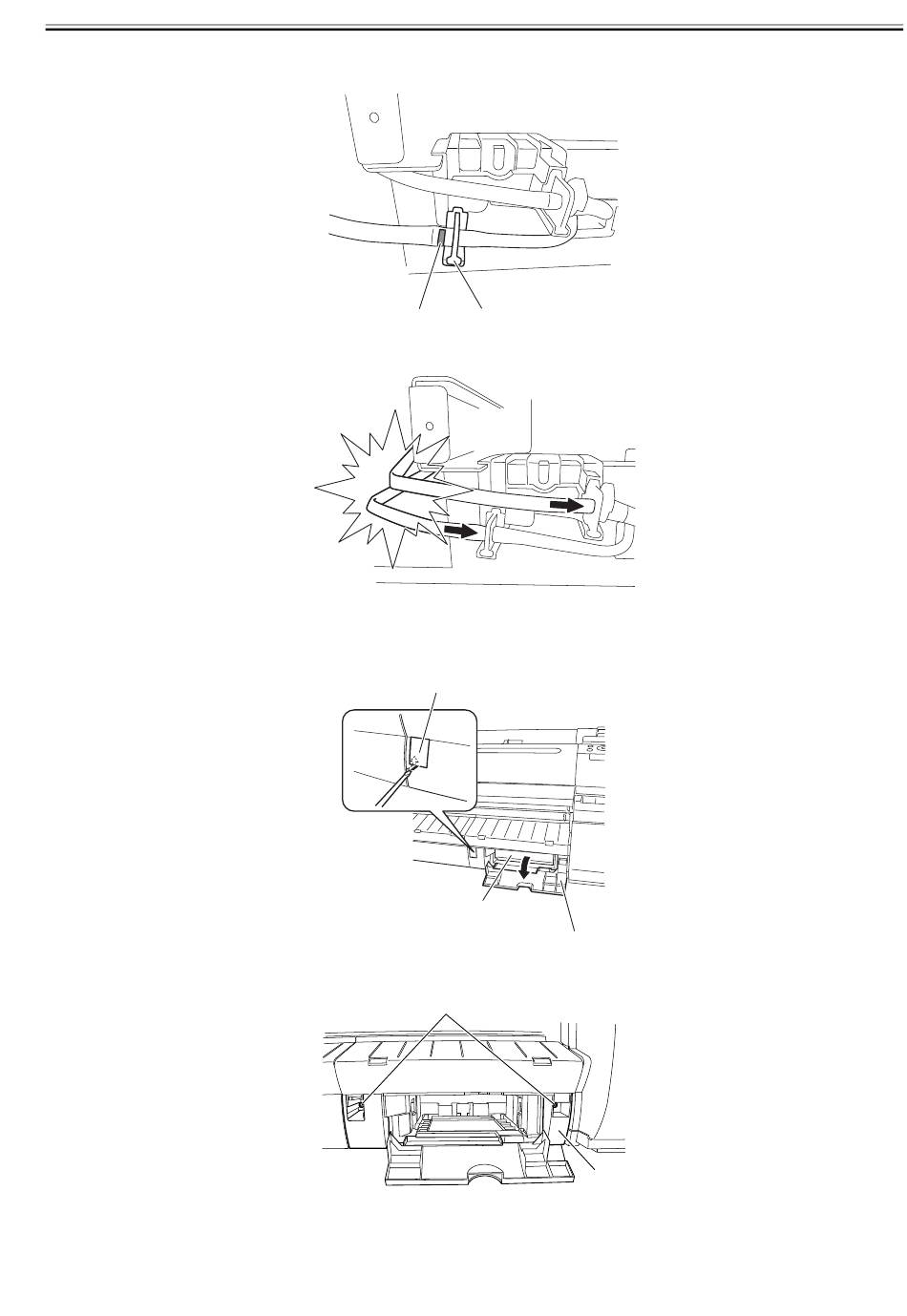

- When installing the waste ink tubes, attach the tube that painted the white mark [1] to the near edge (i.e.; the length of the tube is the shorter) to the left joint [2].

- When installing the waste ink tubes, attach the tubes surely until end of the joint. And check that the tubes are not buckled.

b) Drain ink tube joint (CL)

Removing the drain ink tube joint (CL)

1) Open the maintenance cartridge cover [1] to remove the maintenance cartridge [2], and then remove the face cover [3] by inserting a flat head screwdriver in the

slit.

2) Remove two screws [1], and then remove the output guide (right) [2].

[2]

[1]

F-4-58

F-4-59

[3]

[2]

[1]

F-4-60

[1]

F-4-61
