2) Unlock the carriage unit. Refer to "Disassembly/Reassembly > Points to Note on Disassembly and Reassembly > Opening the Cap/Moving the Wiper Unit".

3) Remove the front cover.

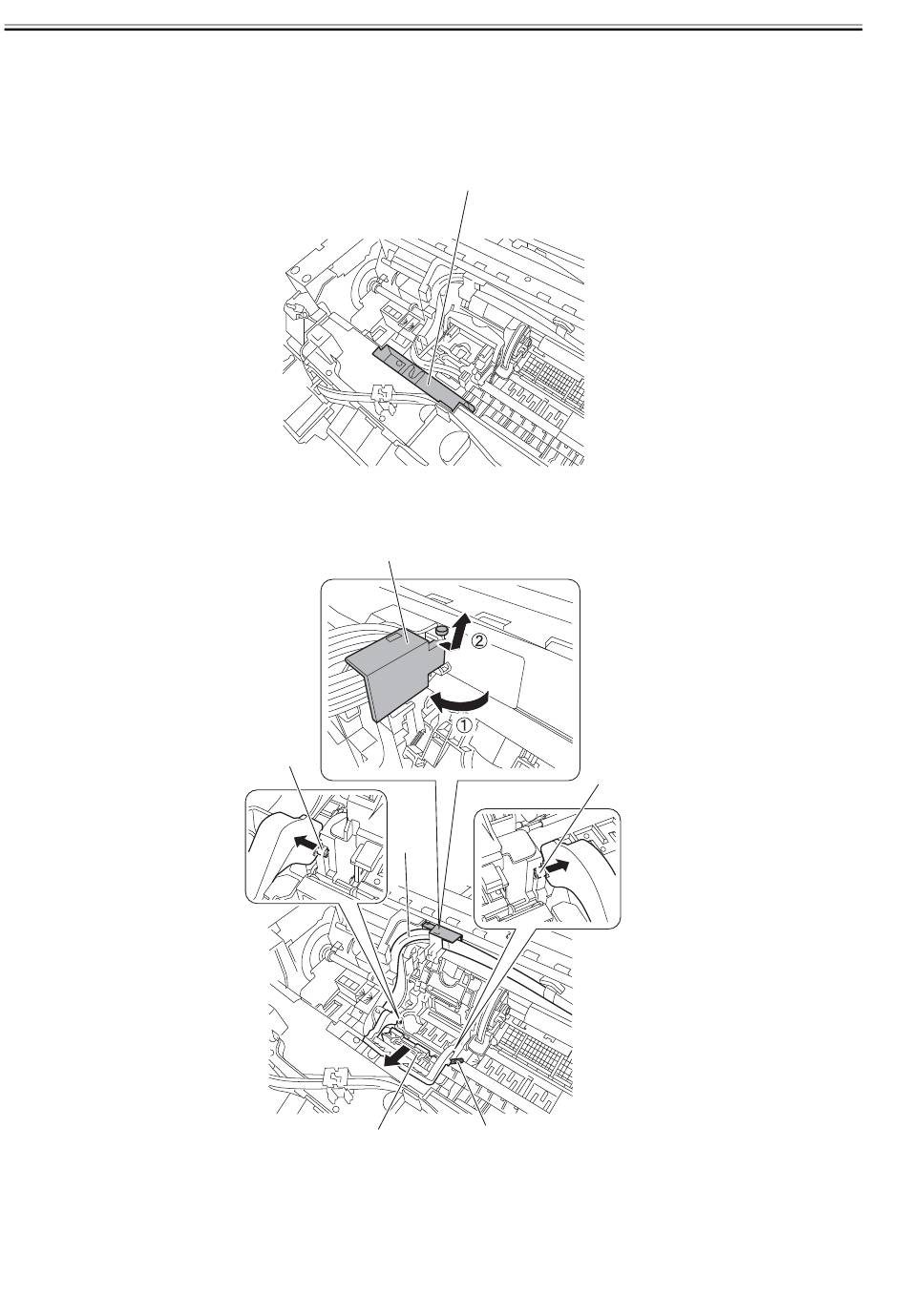

4) Move the carriage to the position where there is a notch [1] at the front of the platen as shown below.

5) Remove the printhead.

6) Open the tube guide [1] an angle of 90 degrees frontward, and then remove the tube guide [1] together with the ink tube.

Remove the ink tube [2] from the carriage guide and one spring [3], release two hooks [4], and then remove the joint base [5] together with the printhead fixer lever.

4-34

F-4-76

[1]

[4]

[2]

[5]

F-4-77

[1]

[4]

[3]
