1.5 Names and Functions of Components

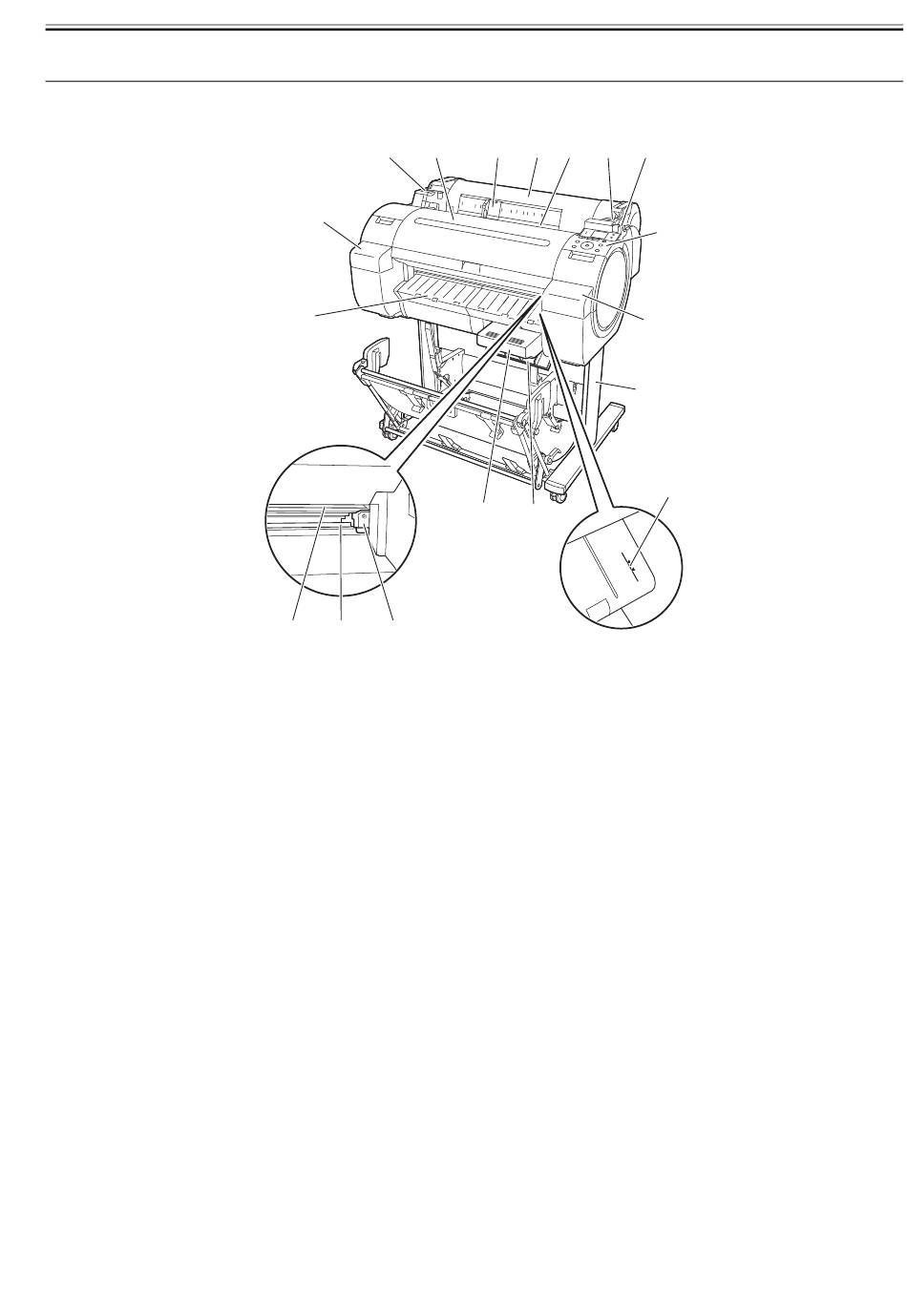

1.5.1 Front
[1] Roll media cover
Open this cover, and then load roll media.
[2] Media loading slot
Insert media in this slot to load it.
[3] Roll media temporary table
When loading roll media, place the roll holder here and then insert the media in the roll holder slot.
[4] Release lever
When releasing the paper retainer, press this lever backward.
[5] Operation panel
Use this panel to operate the printer or check the printer status.
[6] Ink tank cover
Open this cover to replace the ink tank.
[7] Media alignment line
This orange line is used to align media.
[8] Maintenance cartridge cover
Open this cover to replace the maintenance cartridge.
[9] Maintenance cartridge
This cartridge absorbs the ink used for maintenance. (Replace it when it becomes full of ink.)
[10] Cutter unit
This cutter with a round blade is used to cut roll media automatically.
[11] Cutter rail
The cutter unit moves on this rail to cut media.
[12] Paper eject slot
All printouts are ejected from this slot.
[13] Output guide
A printout is ejected along this guide.
[14] Upper cover
Open this cover to install the printhead or remove the media jammed inside the printer.
[15] Width guide
When loading cassette paper, move this guide according to the paper size.
[16] Stand
Install the printer on this stand. This stand has casters for easy relocation.
[3]
[14]
[6]
[13]
[10]
[12] [11]
[15] [1] [2] [3]
[9]
[8]
F-1-28
[4]
[5]
[6]
[16]
[7]
Chapter 1
0023-5230
1-13
