Canon imagePROGRAF iPF670 Service Manual page 158

Chapter 4

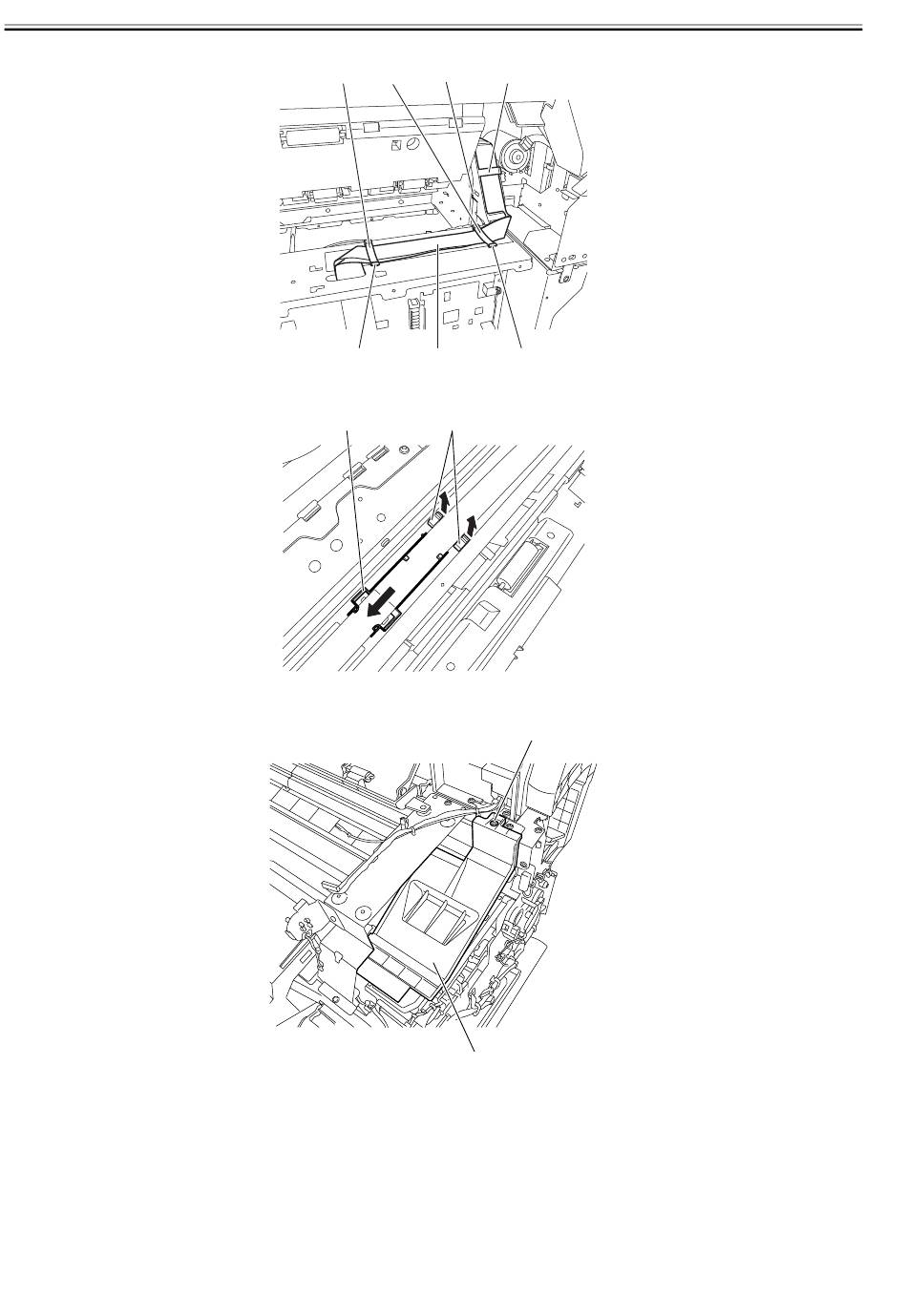

13) Release two hooks [1], and then remove the flexible cable [4] from the flexible cable retainer [2] and flexible guide [3].
14) While releasing the hook with the guide [1] lifted, slide the flexible cable retainer [2] to remove it.
15) Remove one screw [1], and then remove the carriage upper cover [2].
4-22
[2]
[2] [3]
[2]
[1] [4]
F-4-45
[2] [1]
F-4-46
[2]
F-4-47
[1]
[1]
