Canon imagePROGRAF iPF670 Service Manual page 174

Chapter 4

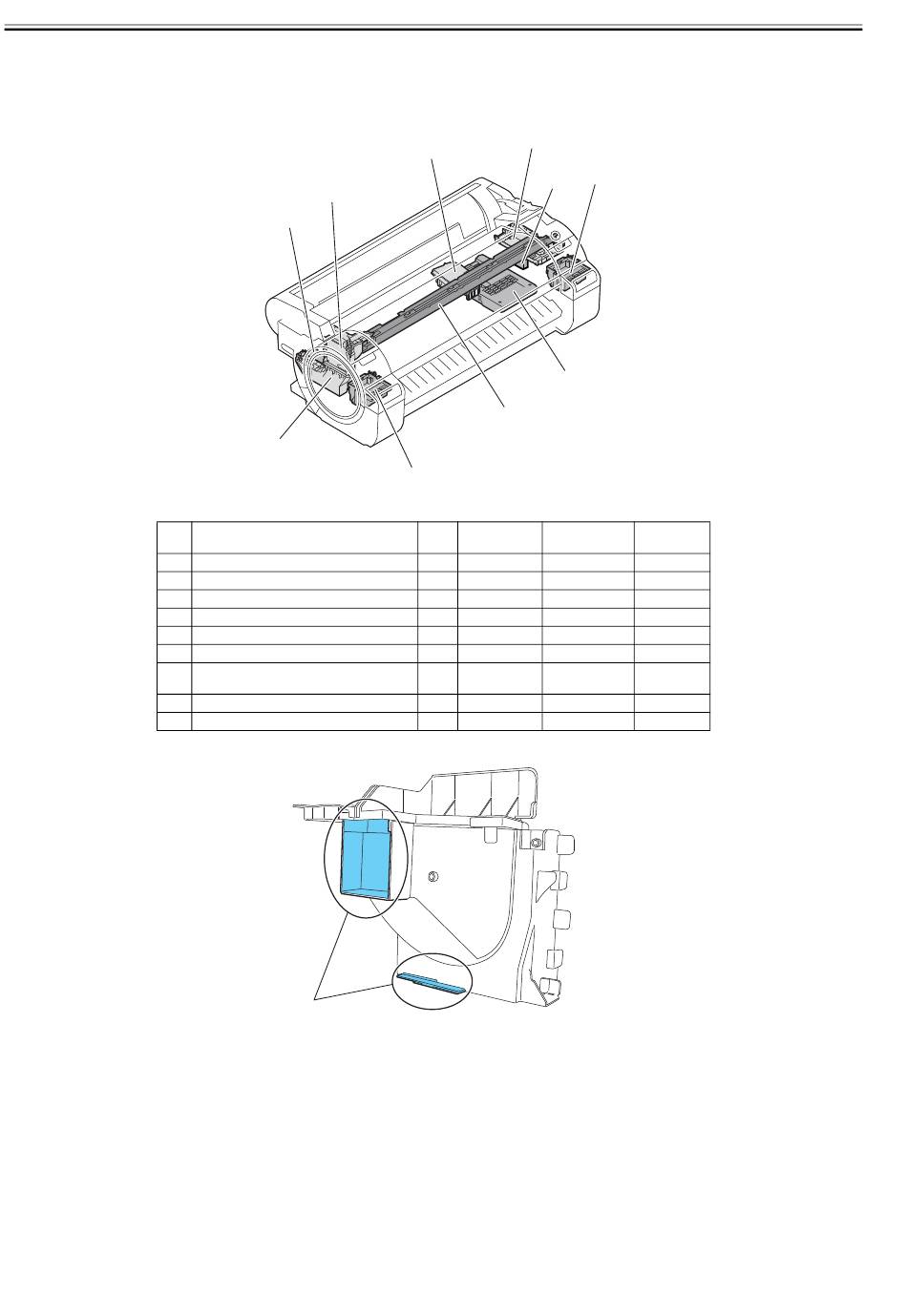

4.3.11 Waste Ink Collection Unit
When disassembling the waste ink collection unit, pay attention to the ink leaking from the disassembled parts. Put the parts of the disassembled waste ink collection
unit in a plastic bag or the like with care given to the ink leaking from the portion [A] enclosed in a circle.
The service parts packing box may include a plastic bag for packing replacement parts. Use it for putting consumable parts of the waste ink collection unit.
No
[1]
[2]
[3]
[4]
[5]
[6]
[7]
[8]
[9]
[1] Mist Fan
4-38
[1]
[4]
[2]
Name
Mist Fan
Mist Exhaust Duct
Platen Suction Fan
Platen Exhaust Duct
Head Management Sensor
Maintenance Cartridge
Ink Tank Unit Waste Ink Tray
Purge Unit Waste Ink Tray
Front Duct
[A]
[8]
[3]
[5]
[6]
[9]
[7]
F-4-86
Q'ty Part number Consumables
1 QM4-2798 Yes
1 QM4-2797 Yes
1 QM4-2817
1 QM4-2753 Yes
1 QM4-2767 Yes
1 -
1 QM4-2873/
QM4-2876
1 -
1 -
F-4-87
[7]
Service Mode
(PARTS xx)
Mi-1
Mi-1
WF-2
HMa-1
0032-0594
