Canon imagePROGRAF iPF670 Service Manual page 159

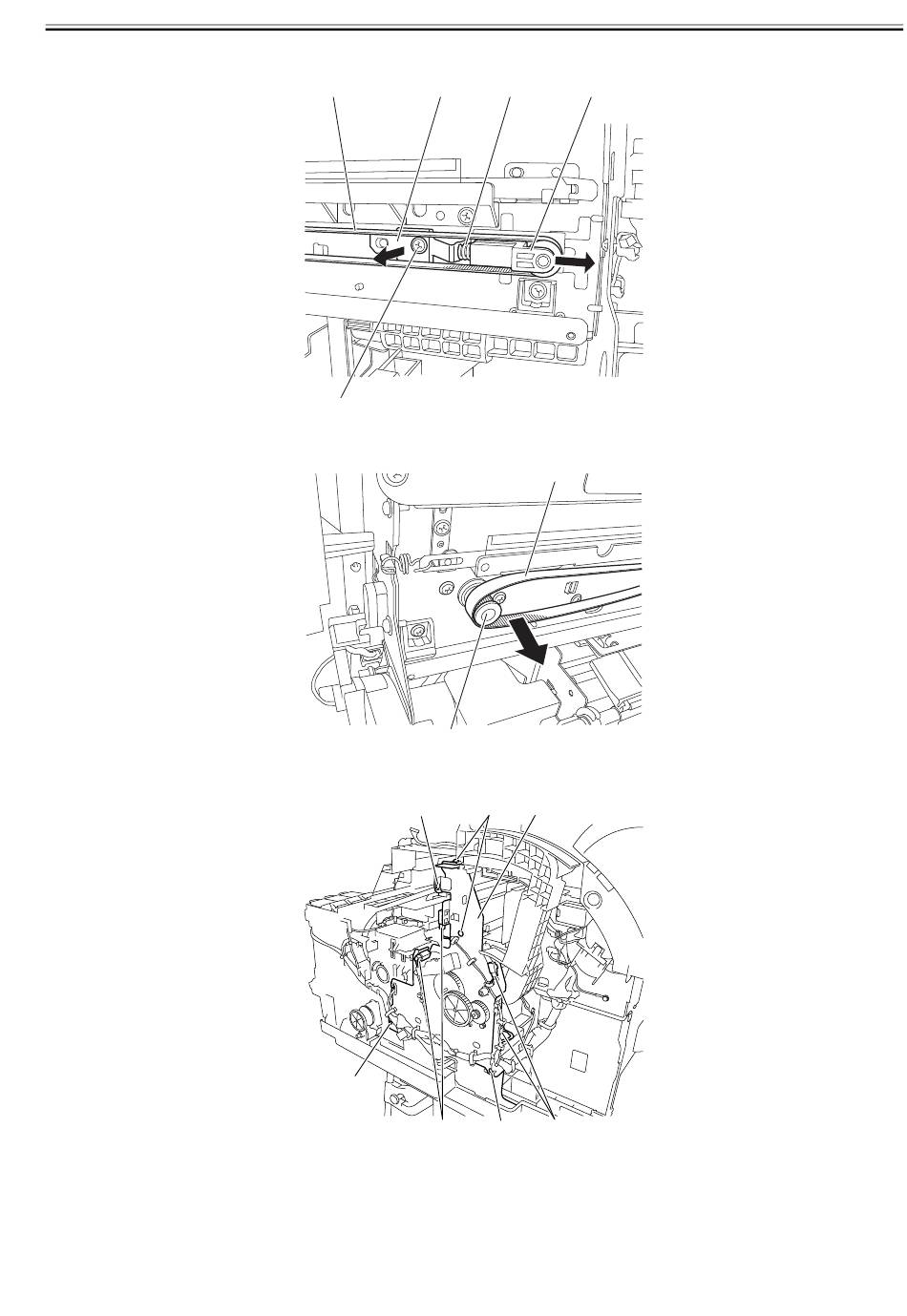

16) Remove one screw [1], the pulley retainer [2], and spring [3] to loosen the carriage belt [4]. Remove the belt [4] from the pulley unit [5], and then remove the
pulley unit [5].
17) Remove the carriage belt [1] from the carriage motor pulley [2].
18) Remove five screws [1] and disconnect four connectors [2], and then remove the cable from the cable guide to remove the right side plate unit [3].
[4] [2]
[1]
F-4-48
[2]
F-4-49
[1] [1]
[1]
[2]
F-4-50
[3] [5]
[1]
[3]
[1]
[2]
Chapter 4
4-23
