A photoreflective type sensor. When a media is fed from the manual feed unit and roll feed unit, this sensor detects the presence of media by receiving the light

reflected from the media.

Cutter HP sensor

The photointerrupter-type sensor detects the presence of the cutter at the home (rightmost) position.

Cutter left position sensor

The photointerrupter-type sensor detects the presence of the cutter at the leftmost position.

Pinch roller pressure release switch

A micro switch type pinch roller pressure release switch detects the application/release of pinch roller pressure. The pinch roller pressure release switch is depressed

when the media release lever is set and detects the pressure of the pinch roller.

2-54

Paper Detection Sensor

Cutter HP Sensor

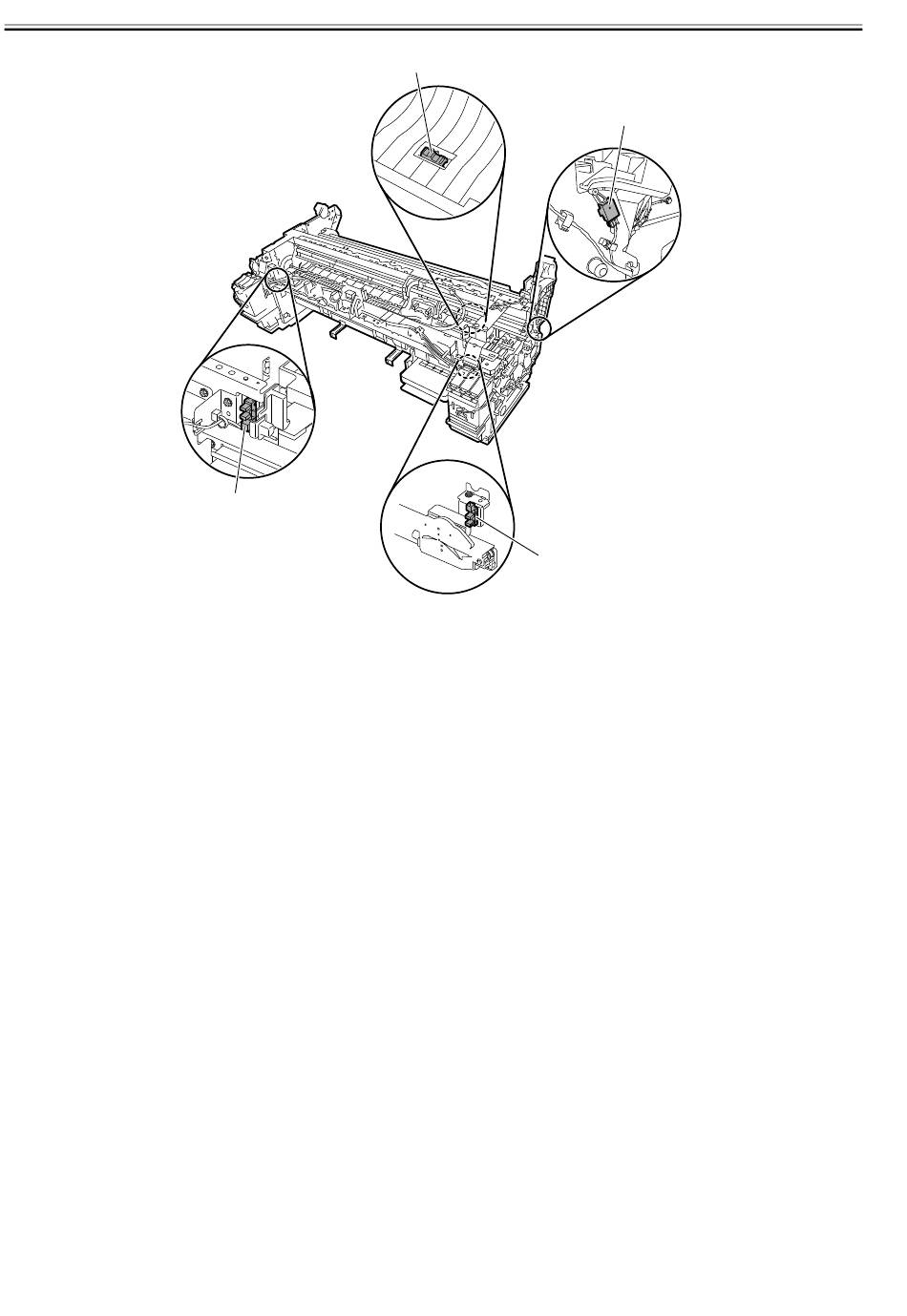

F-2-45

Pinch Roller Pressure

Release Switch
