4.3.9 Ink Tank Unit

a) Ink Tank Unit
Removing the Right Ink Tank Unit
1) Perform ink drainage. Refer to "Disassembly/Reassembly > Points to Note on Disassembly and Reassembly > Draining the ink".
2) Remove the right cover, right ink tank cover, and front cover.

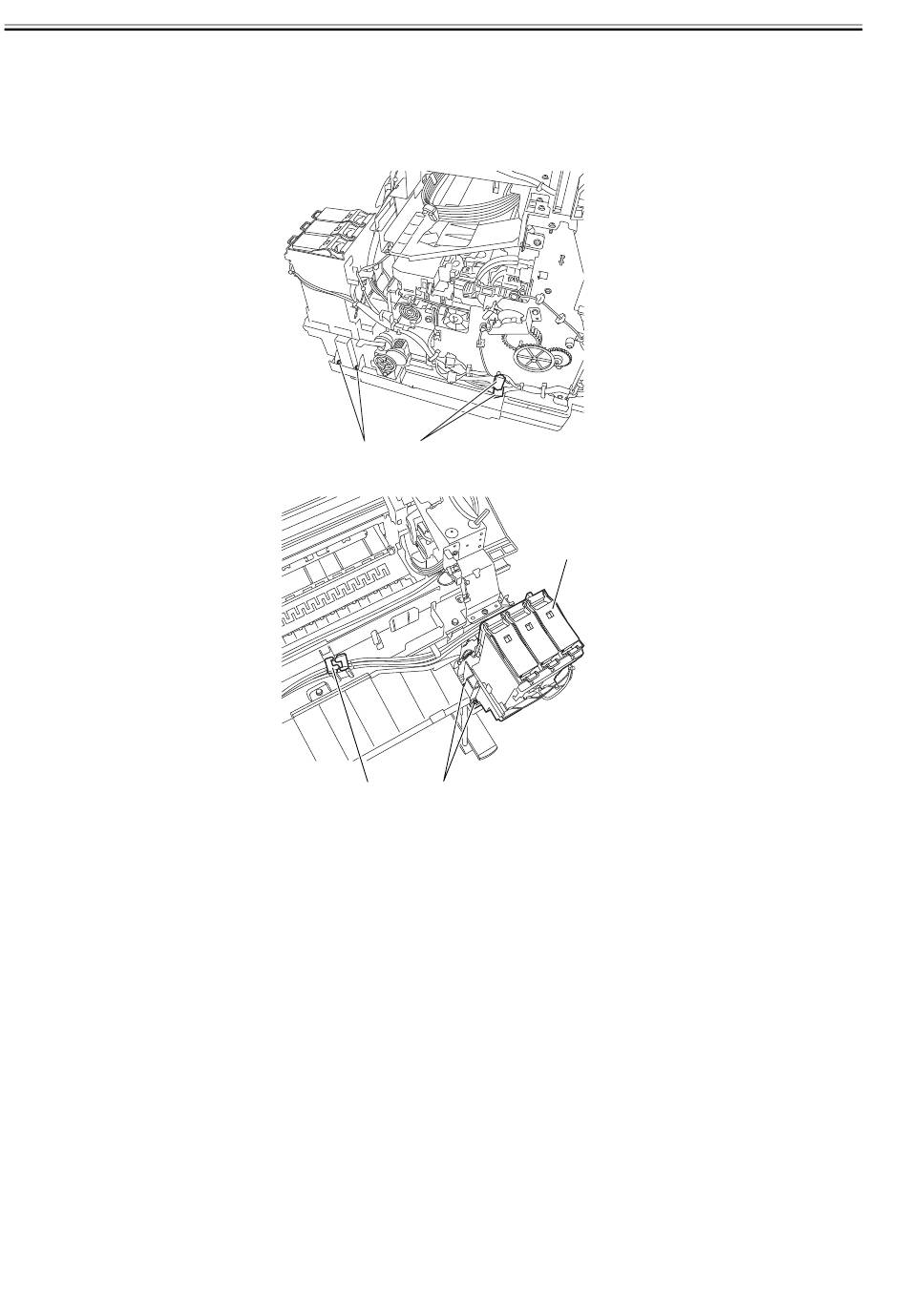

3) Remove four screws [1] and disconnect two connectors [2], and then remove the cable from the cable guide.
4) Remove the joint [3] between the ink tube unit and ink tank unit carefully, the ink tube from the guide, and then remove the right ink tank unit [4].
4-30
[1] [2]
F-4-67
[3] [1]
F-4-68
[4]
