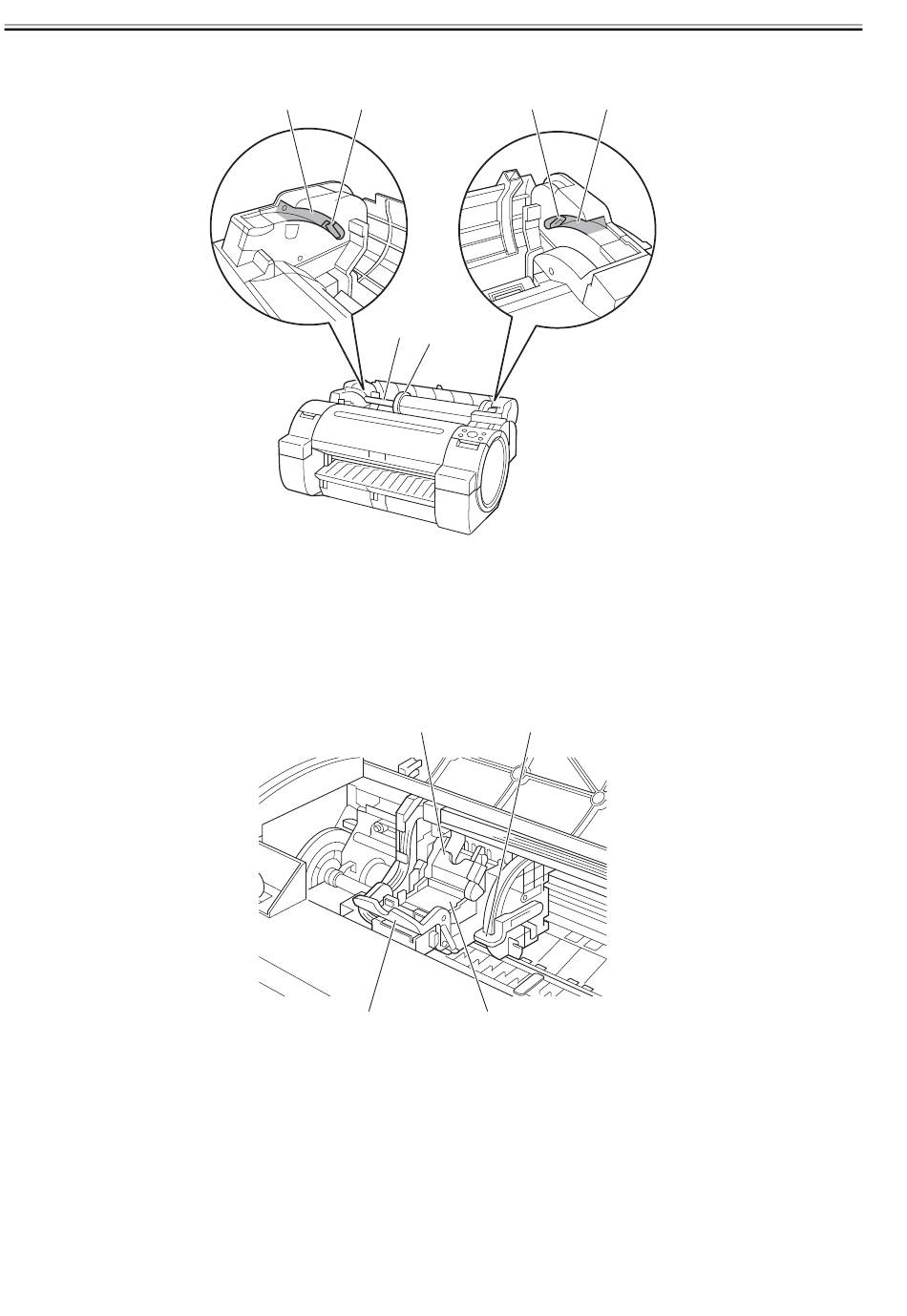

1.5.4 Roll Unit Cover (Inside)
[1] Roll holder
Load roll media in this holder.
[2] Holder stopper
Use this part to secure roll media to the roll holder.
[3] Slide guide
Move the roll holder along this guide.
[4] Roll holder slot
Fit the roll holder in this slot.
1.5.5 Carriage
[1] Slant adjusting lever
This lever is used to fine adjust slant of rules lines.
[2] Printhead
The printhead has nozzles. It is an important component used to perform printing.
[3] Printhead fixer lever
This lever is used to lock the printhead fixer cover.
[4] Printhead fixer cover
This cover is used to secure the printhead.
