Getting to Know the ADSL Barricade

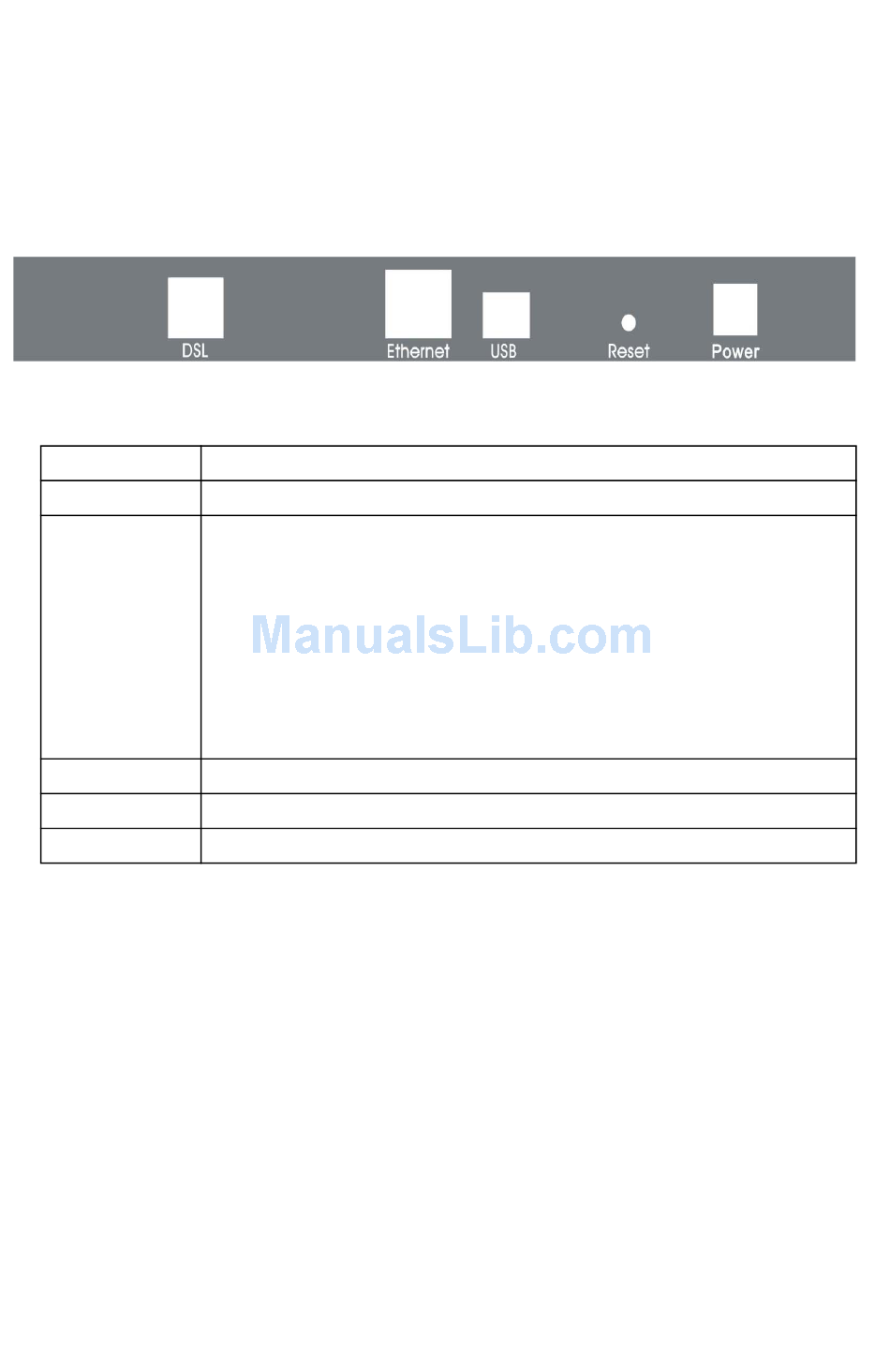

Rear Panel
The rear panel contains the ports for the unit's data and power
connections.
LABEL
DSL
Ethernet
USB (optional) For connection to the USB port on your PC.
Reset
Power
6
FUNCTION
Connects the device to a telephone jack for DSL communication.
Connects the device to your PC's Ethernet port, or to the uplink port
on your LAN's hub, using the cable provided.
Yellow LED:
On: 10M LAN link established and active.
Off: No 10M LAN link.
Green LED:
On: 100M LAN link established and active.
Off: No 100M LAN link.
Resets the device to the factory default configuration.
For connection to the supplied power adapter.
Table 2. Rear Panel Connections
