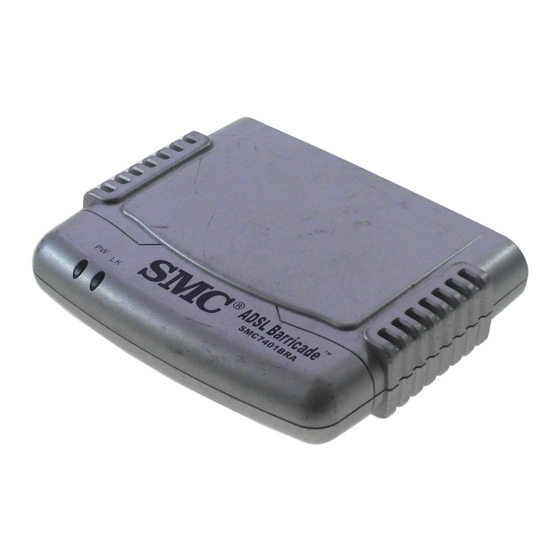

SMC Networks Barricade SMC7401BRA User Manual

2-port broadband router with built-in adsl modem
Hide thumbs Also See for Barricade SMC7401BRA:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual, Manual
2-Port Broadband Router
with Built-in ADSL Modem
N Compatible with all leading DSLAMs
N Supports DMT line modulation
N Supports full-rate ADSL (G.992.1 & T1.413, Issue 2)
- Up to 8 Mbps downstream and 640 Kbps upstream
N Supports G.lite ADSL (G.992.2)
- Up to 1.5 Mbps downstream and 512 Kbps upstream
N Supports DSL handshaking (G.994.1)
N Multiple user Internet access with a single user account
N Plug & Play installation
N Web-based management

User Guide

SMC7401BRA

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Barricade SMC7401BRA and is the answer not in the manual?

Questions and answers

Related Manuals for SMC Networks Barricade SMC7401BRA

Summary of Contents for SMC Networks Barricade SMC7401BRA

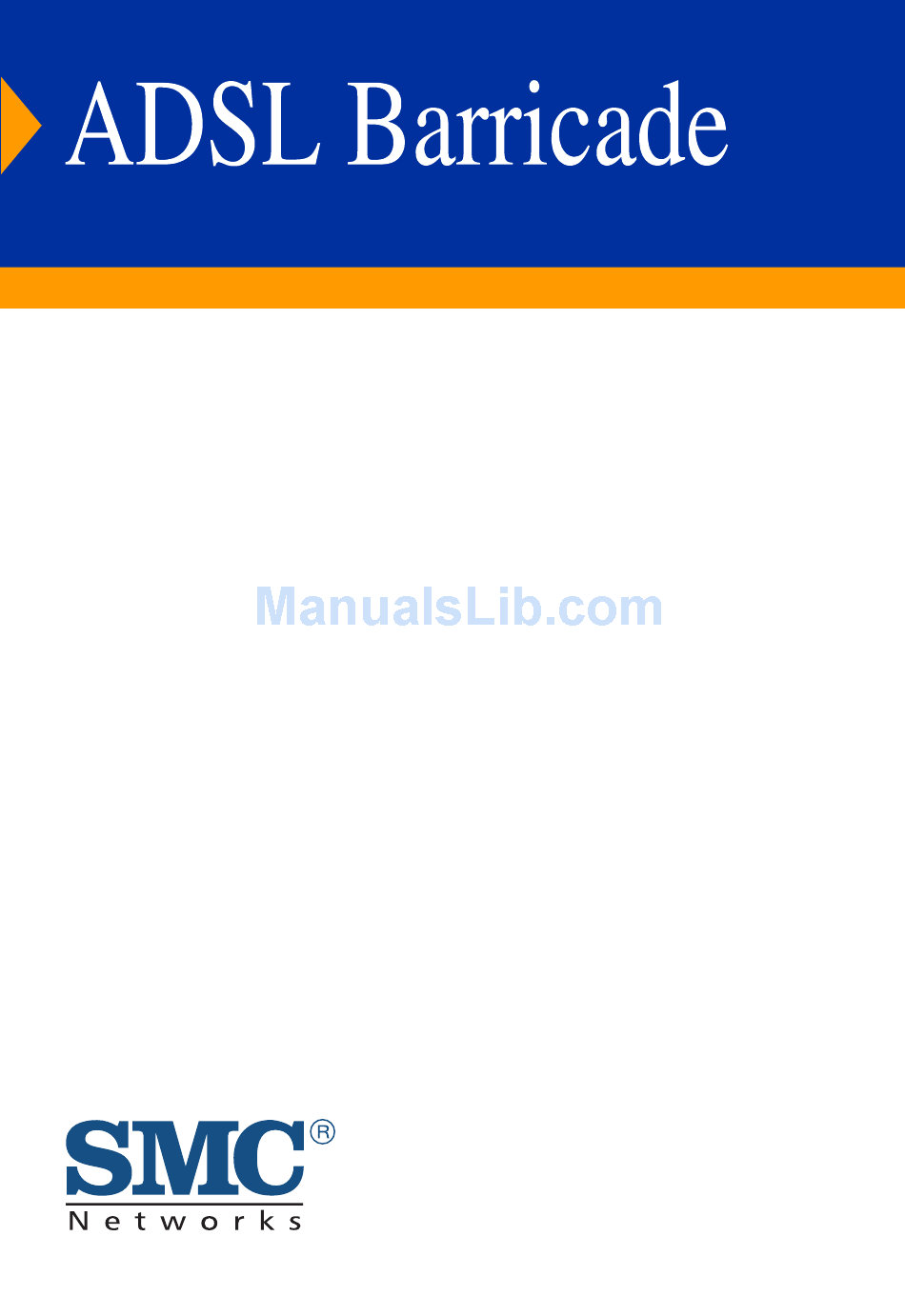

  • Page 1: User Guide

    N Supports G.lite ADSL (G.992.2) - Up to 1.5 Mbps downstream and 512 Kbps upstream N Supports DSL handshaking (G.994.1) N Multiple user Internet access with a single user account N Plug & Play installation N Web-based management User Guide SMC7401BRA...

  • Page 3: Adsl Router

    ADSL Router User Guide From SMC’s Barricade line of award-winning connectivity solutions May 2002 Part No: EU 750.7582, UK 750.7595 Pub No: 150000013600E R02...
  • Page 4 IMITED ARRANTY SMC's Limited Warranty Statement Limited Warranty Statement: SMC Networks Europe ("SMC") warrants its products to be free from defects in workmanship and materials, under normal use and service, for the applicable warranty term. All SMC products carry a standard 2 year limited warranty from the date of purchase from SMC or its Authorised Reseller.
  • Page 5 IMITED ARRANTY WARRANTIES EXCLUSIVE: IF A SMC PRODUCT DOES NOT OPERATE AS WARRANTED ABOVE, CUSTOMER'S SOLE REMEDY SHALL BE REPAIR OR REPLACEMENT OF THE PRODUCT IN QUESTION, AT SMC’S OPTION. THE FOREGOING WARRANTIES AND REMEDIES ARE EXCLUSIVE AND ARE IN LIEU OF ALL OTHER WARRANTIES OR CONDITIONS, EXPRESSED OR IMPLIED, EITHER IN FACT OR BY OPERATION OF LAW, STATUTORY OR OTHERWISE, INCLUDING WARRANTIES OR CONDITIONS OF MERCHANTABILITY AND FITNESS...
  • Page 6 Information furnished is believed to be accurate and reliable. However, no responsibility is assumed by our company for its use, nor for any infringements of patents or other rights of third parties which may result from its use. No license is granted by implication or otherwise under any patent or patent rights of our company.
  • Page 7 OMPLIANCES FCC - Class B This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with instructions, may cause harmful interference to radio communications.
  • Page 8 OMPLIANCES The telephone company may make changes in its facilities, equipment, operations, or procedures that will provide advance notice in order for you to make the necessary modifications in order to maintain uninterrupted service. If trouble is experienced with this equipment, please contact our company at the numbers shown on back of this manual for repair and warranty information.
  • Page 9 OMPLIANCES EC Conformance Declaration - Class B This information technology equipment complies with the requirements of the Council Directive 89/336/EEC on the Approximation of the laws of the Member States relating to Electromagnetic Compatibility and 73/23/EEC for electrical equipment used within certain voltage limits and the Amendment Directive 93/68/EEC.

  • Page 11: Table Of Contents

    ABLE OF ONTENTS Introduction ........1-1 Features and Benefits ........1-2 Networking Concepts .
  • Page 12 ABLE OF ONTENTS Advanced Setup ..........3-6 WAN .
  • Page 13 ABLE OF ONTENTS Obtain IP Settings from Your Barricade ....4-9 Windows NT 4.0 ......... . 4-10 Configure TCP/IP Settings .
  • Page 14 ABLE OF ONTENTS...

  • Page 15: Introduction

    HAPTER NTRODUCTION Congratulations on your purchase of the Barricade 2-Port Broadband Router with built-in ADSL Modem. We are proud to provide you with a powerful yet simple communication device for connecting your PC to the Internet. The Barricade is an Asynchronous Digital Subscriber Line (ADSL) network device that provides high-speed Internet access over existing phone lines.

  • Page 16: Features And Benefits

    NTRODUCTION services requiring guaranteed Quality of Service (QoS). The Barricade enables true telecommuting for the first time. It also provides multiprotocol encapsulation for bridging Windows NetBEUI and Novell’s IPX protocols directly to a remote site for complete access to corporate resources, or for routing TCP/IP traffic for Internet connections.
  • Page 17 EATURES AND ENEFITS • Supports pass-through for three of the most commonly used Virtual Private Network (VPN) protocols – PPTP, L2TP, and IPSec • Security protocols, including Password Authentication Protocol (PAP) and Challenge Handshake Authentication Protocol (CHAP) • Always-on digital connection eliminates dial-up delays, and transparent reconnection when initiating a network request •...

  • Page 18: Networking Concepts

    NTRODUCTION Networking Concepts ADSL Digital Subscriber Line (DSL) technology transmits both data and voice over ordinary telephone lines. Signals above 4 kHz are cut off in normal telephone communications as noise, so DSL uses this spectrum to transmit data. Since Internet users and people telecommuting from home normally download more data than they upload, Asymmetric Digital Subscriber Line (ADSL) is the preferred choice.

  • Page 19: Route Determination

    ETWORKING ONCEPTS Data flows are broken up into fixed length cells, each of which contains a Virtual Path Identifier (VPI) that identifies the path between two nodes, and a Virtual Circuit Identifier (VCI) that identifies the data channel within that virtual path. Each virtual circuit maintains a constant flow of cells between the two end points.

  • Page 20: Routing

    NTRODUCTION Routing If ATM Protocol Encapsulation is set for PPP/ATM or IP/ATM, the router will forward incoming IP packets and use RIP-2 for routing path management if enabled. The router supports both static routing and dynamic routing. • Static routing requires routing information to be stored in the router, either manually or when a connection is set up, by an application outside the router.

  • Page 21: Network Applications

    ETWORK PPLICATIONS Network Applications The Barricade can be configured as a bridge for making a transparent connection to a remote site, or as a router for accessing the Internet. These applications are briefly described in the following sections. Accessing a Remote Site The Barricade can be configured to act as a transparent bridge between a local PC or LAN attached to the Ethernet port and a remote site across the ADSL link.

  • Page 22: Accessing The Internet

    NTRODUCTION ADSL Router Router 10/100 Mbps Ethernet LAN 10/100 Mbps Ethernet LAN Figure 1-1. Transparent Bridged Network Accessing the Internet To access the Internet, which uses TCP/IP protocols exclusively, the Barricade must be configured to function as a router. One interface is the port attached to a local Ethernet LAN (or directly to a host PC with an Ethernet adapter), while the other is the ATM transport service running on the DSL port.
  • Page 23 ETWORK PPLICATIONS When the system is powered on, the Barricade builds its own routing database according to previous static routing entries, and/or collects routing information from adjacent routers through RIP-2 protocol. RIP-1 is generally supported by all routers, but RIP-2 carries more information which allows the Barricade to make better choices on the most appropriate path to a remote network.
  • Page 24 NTRODUCTION 1-10...

  • Page 25: Installation

    Web-based configuration program (see Chapter 3) to learn how to configure the router. Package Contents After unpacking the Barricade, check the contents of the box to be sure that you have received the following components: • Barricade (SMC7401BRA) • External power adapter • RJ-11 cable •...

  • Page 26: Hardware Description

    NSTALLATION Hardware Description The Barricade provides a high-speed Asynchronous Digital Subscriber Line (ADSL) that connects to a remote site (via bridging) or to the Internet (via routing). It transports data over standard telephone wire at full-rate ADSL (G.dmt: 8 Mbps downstream, 640 Kbps upstream) or splitterless ADSL (G.lite: 1.5 Mbps downstream, 512 Kbps upstream) connection speeds.

  • Page 27: Rear Panel

    YSTEM EQUIREMENTS Rear Panel The rear panel provides the following ports: • One USB port for connection to a PC • One RJ-45 port for connection to a 10BASE-T/100BASE-TX Ethernet Local Area Network (LAN). This port operates at 10/100 Mbps, half/full duplex, and is wired as MDI/MDI-X . •...

  • Page 28: Connect The System

    NSTALLATION Connect the System Phone Line Configuration Installing a Full-rate Connection If you are using a full-rate (G.dmt) connection, your service provider will attach the outside ADSL line to a data/voice splitter. In this case you can connect your phones and computer directly to the splitter as shown below: Plain Old Telephone System (POTS)

  • Page 29: Installing A Splitterless Connection

    ONNECT THE YSTEM Installing a Splitterless Connection If you are using a splitterless (G.lite) connection, then your service provider will attach the outside ADSL line directly to your phone system. In this case you can connect your phones and computer directly to the incoming ADSL line, but you will have to add low-pass filters to your phones as shown below: Plain Old...

  • Page 30: A Troubleshooting

    NSTALLATION Connect the ADSL Line Run standard telephone cable from the wall jack providing ADSL service to the ADSL port on your Barricade. When inserting an RJ-11 plug, be sure the tab on the plug clicks into position to ensure that it is properly seated.

  • Page 31: Connect To The Barricade's Usb Port

    ONNECT THE YSTEM Notes: 1. Use 100-ohm straight-through shielded or unshielded twisted-pair cable with RJ-45 connectors at both ends for all connections. Use Category 3, 4, or 5 for 10 Mbps connections, or Category 5 for 100 Mbps connections. 2. Make sure each twisted-pair cable does not exceed 100 meters (328 feet).
  • Page 32 NSTALLATION...

  • Page 33: Web-Based Management

    HAPTER ASED ANAGEMENT Web-Based Configuration and Monitoring The ADSL Barricade provides an embedded HTTP Web agent. This agent can be accessed by any computer on the network using a Java-supported Web browser (including Internet Explorer 4.0 or above, and Netscape Navigator 4.0 or above).

  • Page 34: Navigating The Web Browser Interface

    ASED ANAGEMENT Navigating the Web Browser Interface The Barricade’s management interface provides access to the two main menus – Setup Wizard and Advanced Setup (after clicking either one of those menus, a Status and Help button will appear on the top right of the screen).

  • Page 35: Setup Wizard

    AVIGATING THE ROWSER NTERFACE / General. In the Temporary Internet Files section, click “Settings.” The setting for “Check for newer versions of stored pages” should be “Every visit to the page.” Setup Wizard The Setup Wizard is designed to get you connected to the Internet as fast as possible, using mainly default settings.

  • Page 36: Advanced Setup Menu Overview

    ASED ANAGEMENT Advanced Setup Menu Overview Menu Description ADSL link settings, including Default Gateway, IP address, MAC Spoofing, ATM PVC settings including UBR (Unspecified Bit Rate) and CBR (Constant Bit Rate), encapsulation method, bridging for multiple protocols, IGMP multicast support, PPP, and enabling the Barricade as a DHCP client.
  • Page 37 AVIGATING THE ROWSER NTERFACE Menu Description Password Sets an ID and password for the administrator. Configuration Misc Configuration Enables various WAN-side HTTP/FTP/TFTP servers, DMZ access for a specified client, DNS Proxy, DHCP Relay, DHCP Target IP, Firmware Update settings, IGMP Proxy, PPP reconnect on WAN access.

  • Page 38: Status (Toolbar Button)

    ASED ANAGEMENT Status (Toolbar Button) Parameter Description Status Firmware Version System firmware version. Showtime Firmware Showtime firmware version. Version Customer Software Interface customization version. Version IP Address The public IP Address of the Barricade. Subnet Mask The Subnet Mask of the Barricade. MAC Address The MAC Address of the Barricade.

  • Page 39: Wan

    DVANCED ETUP Note: Only use values provided by your ISP to configure the WAN link.
  • Page 40 ASED ANAGEMENT Parameter Default Description System Wide Settings Default Gateway 0.0.0.0 This address is configured by the network administrator and it informs each computer or other network device where to send data if the target station does not reside on the same subnet as the source.

  • Page 41: Asynchronous Transfer Mode (Atm)

    DVANCED ETUP Parameter Default Description Point-to-point transport protocol Service Name Service name provided by ISP. Username User name provided by ISP. Password Password provided by ISP. Disconnect Timeout Time after which an inactive link is terminated. Authentication Auto Sets the authentication mode used to login to your ISP.
  • Page 42 ASED ANAGEMENT recognized ATM protocol. (Data is segmented into short fixed length cells when entering the ATM stream, and reassembled into variable length user information when leaving the stream). The Barricade router supports the following protocols: • PPPoA VC-Mux. Point to Point Protocol over ATM Virtual Circuit Multiplexer (null encapsulation) allows only one protocol running per virtual circuit (less overhead).

  • Page 43: Protocol Multiplexing

    DVANCED ETUP • Classical IP over ATM provides a direct replacement for IP links between routers, using IP-to-ATM address mapping. • Native ATM. Asynchronous Transfer Mode. International standard for cell relay in which multiple service types (such as voice, video, or data) are conveyed in fixed-length (53-byte) cells.
  • Page 44 ASED ANAGEMENT method whenever possible to maximize bandwidth utilization. If your ISP only supports one Virtual Circuit, use VC multiplexing unless more than one protocol is carried over the link. You should also use VC multiplexing with encapsulation methods such as IP/ATM which only require one transport protocol.

  • Page 45: Lan

    DVANCED ETUP This screen is used to configure parameters for the Ethernet port, including local IP address, enabling DHCP service, and setting the port to a fixed speed/duplex mode or for auto-negotiation. Parameter Default Description LAN Configuration IP Address 192.168.1.1 IP address of the LAN port. Subnet Mask 255.255.255.0 Subnet mask of the LAN port.
  • Page 46 ASED ANAGEMENT Parameter Default Description User Defined Start 192.168.1.2 First address assigned to clients. Address User Defined End 192.168.1.33 Last address assigned to clients. Address Range: Up to 253 addresses. Lease Time 1 minute The amount of time an IP address is leased to the requesting client.

  • Page 47: Nat

    DVANCED ETUP NAT (Network Address Translation) and NAPT (Network Address and Port Translation) convert IP addresses on a private network (designated as “internal” or “Local Area Network” (LAN) to global IP addresses that can forward packets to another registered network (designated as “external” or “Wide Area Network”...
  • Page 48 ASED ANAGEMENT internal IP addresses without affecting outside access to your network. Parameter Default Description NAPT IP address and port mapping between the LAN and WAN. Session Name A name used to identify the static mapping for a specified local IP address. User’s IP The static IP address of the local user.

  • Page 49: Session Name Configuration

    DVANCED ETUP Session Name Configuration This screen is used to assign a NAT session to a virtual circuit. Parameter Default Description Session Name A name used to identify the static mapping for a specified local IP address. Virtual Circuit The permanent virtual circuit to which this NAT session is assigned.

  • Page 50: Virtual Server

    ASED ANAGEMENT Virtual Server This screen is used to redirect remote users requesting services (e.g., Web, FTP) on your local network from the Barricade’s public IP address to internal host servers configured with private IP addresses. Depending on the requested service (TCP/UDP port number), the Barricade redirects the external service request to the appropriate server (located at another internal IP address).

  • Page 51: Bridge Filtering

    DVANCED ETUP Bridge Filtering Traffic from a node that presents a security risk or is functioning improperly can be filtered from the Barricade. This screen is used to filter or forward traffic matching the specified source MAC address, destination MAC address, or Ethernet frame type. Parameter Description Enable Bridge Filtering Enables/disables filtering for the specified items.

  • Page 52: Dns

    ASED ANAGEMENT This screen is used to specify the default gateway and domain name servers. Parameter Description DNS Proxy Selection Selects a DNS server by auto-discovery, user configured, or a combination of both methods. Preferred DNS Server* Enter a user configured preferred DNS Server. Alternate DNS Server* Enter a user configured alternate DNS Server.

  • Page 53: Wan Status

    DVANCED ETUP WAN Status This screen shows the IP address, subnet mask, and MAC address associated with each PVC (Permanent Virtual Circuit). To acquire a new IP address from the DHCP server: 1. Choose the virtual circuit number from the Virtual Circuit dropdown list.

  • Page 54: Ppp Status

    ASED ANAGEMENT PPP Status This screen displays the status of PPP (Point-to-Point Protocol) connections configured for any permanent virtual circuit. Use this screen to disconnect or reconnect a PPP link operating on a specified virtual circuit. 3-22...

  • Page 55: Route Table

    DVANCED ETUP Route Table This screen is used to manually configure static routes to other IP networks, subnetworks, or hosts. Parameter Description Destination A destination network or specific host to which packets can be routed. Gateway The IP address of the router at the next hop to which matching frames are forwarded.

  • Page 56: Learned Mac Addr

    ASED ANAGEMENT Learned MAC Addr. A MAC (Media Access Control) address is Ethernet hardware’s unique identification number. When you are connected to the Internet from your computer (or host as the Internet protocol thinks of it), a correspondence table relates your IP address to your computer’s physical (MAC) address on the LAN.

  • Page 57: Adsl Configuration

    DVANCED ETUP ADSL Configuration This screen is used to configure ADSL connection options for encoding, handshaking, and wiring type. Parameter Default Description Trellis Enabled An encoding method that limits the impact of line noise on transmitted signals. Handshake Protocol Autosense - ADSL protocol to use on the WAN link: G.dmt first Autosense - G.dmt first...

  • Page 58: Rip Configuration

    ASED ANAGEMENT RIP Configuration This screen is used to configure the dynamic routing protocol used to learn new IP routes. Parameter Default Description Disabled Enables/disables dynamic routing. Supplier True Set this to True if you want the Barricade to broadcast routing information as well as accept routing information.

  • Page 59: Password Configuration

    DVANCED ETUP Password Configuration Administrators have Read/Write access to all configuration parameters and statistics. You should therefore change the default administrator password as soon as possible, and store it in a safe place. (If for some reason your password is lost, or you cannot gain access to the management interface, contact your distributor for assistance).
  • Page 60 ASED ANAGEMENT DHCP relay, Firmware update, IGMP proxy, and PPP reconnect on demand. 3-28...
  • Page 61 DVANCED ETUP Parameter Default Description WAN side HTTP Enabled Enables/disables HTTP server access. server LAN side TELNET Enabled Enables/disables telnet service to the server internal network. WAN side TELNET Enabled Enables/disables Telnet service to the server external network. FTP server Enabled Enables/disables FTP server access.
  • Page 62 ASED ANAGEMENT Parameter Default Description FTP Server IP for 192.168.1.2 Default FTP Server IP. firmware update Username for the FTP anonymous Default username for the FTP Server. Server Password for the FTP Password for the FTP Server. Server The name of firmware firmware.dlf The default firmware file name in the FTP server The path of the...

  • Page 63: Other Miscellaneous Functions

    DVANCED ETUP Other Miscellaneous Functions The Barricade also includes several basic system functions – • Reset to Factory Default – Resets the Barricade settings to the factory defaults. • Diagnostic Test – Tests connection for LAN and ADSL circuits. • Code Image Update –...

  • Page 64: Status

    ASED ANAGEMENT Status The Status screen is available from within the Setup Wizard and Advanced Setup by clicking the Status icon on the Barricade toolbar on the top-right of the screen. It displays core and customer firmware versions and shows the connection status for the Barricade’s WAN and LAN ports.
  • Page 65 TATUS Parameter Description Status Firmware Version System firmware version. Showtime Firmware Showtime firmware version. Version Customer Software Interface customization version. Version IP Address The public IP Address of the Barricade. Subnet Mask The Subnet Mask of the Barricade. MAC Address The MAC Address of the Barricade.

  • Page 66: Adsl

    ASED ANAGEMENT ADSL This screen shows the signal status on the ADSL line. See the following page for a description of the items. 3-34...
  • Page 67 TATUS Parameter Description ADSL Line State Shows ADSL line status – Activation, Training, Channel Analysis, Showtime, or Down. ADSL Startup Attempts The number of times the Barricade has started training the ADSL line for an acceptable signal rate. Elapsed Time Length of time this connection has been established.

  • Page 68: Lan

    ASED ANAGEMENT This screen shows LAN settings for the Barricade and DHCP clients. Parameter Description IP Address The IP address of the local Ethernet port. Valid IP addresses consist of four numbers, 1-254, separated by periods. Subnet Mask A template that identifies the address bits in the host address used for routing to specific subnets.

  • Page 69: Wan Status

    TATUS WAN Status This screen shows the IP address, subnet mask, and MAC address associated with each PVC (Permanent Virtual Circuit). To acquire a new IP address from the DHCP server: 1. Choose the virtual circuit number from the Virtual Circuit dropdown list.

  • Page 70: Ppp Status

    ASED ANAGEMENT PPP Status This screen displays the status of PPP (Point-to-Point Protocol) connections configured for each permanent virtual circuit. 3-38...

  • Page 71: Tcp Status

    TATUS TCP Status This screen displays statistics for all TCP traffic crossing the Barricade, as well as general statistics on the number of individual TCP connections. This information can be used to identify potential problems with the Barricade (such as a faulty port or synchronization problems between the Barricade and head end).
  • Page 72 ASED ANAGEMENT 3-40...

  • Page 73: Configuring Client Tcp/Ip

    HAPTER TCP/IP ONFIGURING LIENT Windows 95/98/Me You may find that the instructions in this chapter do not exactly match your version of Windows. This is because these steps and screenshots were created from Windows 98. Windows 95 and Windows Millennium Edition are similar, but not identical, to Windows 98.
  • Page 74 TCP/IP ONFIGURING LIENT 2. From “Control Panel” double-click the “Network” icon. 3. In the “Network” window, under the “Configuration” tab, double-click the “TCP/ IP” item listed for your network card. 4. Select the “IP Address” tab. 5. If “Obtain an IP address automatically”...
  • Page 75 95/98/M INDOWS 6. Click the “Gateway” tab and record the numbers listed under “Installed gateways.” 7. Click the “DNS Configuration” tab. Locate the DNS servers listed under “DNS Server Search Order.” Record any listed addresses. 8. After writing down your settings, check to make sure you have recorded them correctly.

  • Page 76: Disable Http Proxy

    TCP/IP ONFIGURING LIENT Disable HTTP Proxy You need to verify that the “HTTP Proxy” feature of your Web browser is disabled. This is so that your browser can view the Barricade’s HTML configuration pages. The following steps are for Internet Explorer and Netscape.

  • Page 77: Netscape

    95/98/M INDOWS Netscape 1. Open Netscape and click the stop button. Click “Edit,” then click “Preferences...” 2. In the “Preferences” window, under “Category” double-click “Advanced,” then click “Proxies.” Select “Direct connection to the Internet.” Click “OK.” 3. Repeat these steps for each Windows 95/ 98/Me computer connected to your Barricade.

  • Page 78: Windows 2000

    TCP/IP ONFIGURING LIENT 2. Type “WINIPCFG” and click “OK.” It may take a minute or two for the “IP Configuration” window to appear. 3. From the drop-down menu, select your network card. Click “Release” and then “Renew.” Verify that your IP address is now 192.168.1.xxx, your Subnet Mask is 255.255.255.0 and your Default...
  • Page 79 2000 INDOWS Follow these instructions: 1. From the Windows desktop, click the “Start” button. Click “Settings,” and then click “Control Panel.” 2. Double-click the “Network & Dial-Up Connections” icon. 3. Double-click the icon that corresponds to the connection to your Barricade.
  • Page 80 TCP/IP ONFIGURING LIENT 5. Double-click “Internet Protocol (TCP/IP).” 6. All the information you need to record is on the “Internet Protocol (TCP/ IP) Properties” dialog box. Use the spaces below to record the information. 7. If “Obtain an IP address automatically”...

  • Page 81: Disable Http Proxy

    2000 INDOWS Disable HTTP Proxy You need to verify that the “HTTP Proxy” feature of your Web browser is disabled. This is so that your browser can view the Barricade’s HTML configuration pages. Determine which browser you use and refer to “Internet Explorer”...

  • Page 82: Windows Nt 4.0

    TCP/IP ONFIGURING LIENT that your IP Address is now 192.168.1.xxx, your Subnet Mask is 255.255.255.0 and your Default Gateway is 192.168.1.1. These values confirm that your ADSL Router is functioning. 4. Type “EXIT” and press <ENTER> to close the “Command Prompt” window.
  • Page 83 NT 4.0 INDOWS Follow these instructions: 1. From the Windows desktop click “Start,” then “Settings,” and click “Control Panel.” 2. Double-click the “Network” icon. 3. Select the “Protocols” tab. 4. Double-click “TCP/IP Protocol.” 5. Select the “IP Address” tab. 6. In the “Adapter” drop-down list, be sure your Ethernet adapter is selected.
  • Page 84 TCP/IP ONFIGURING LIENT under the IP address tab, locate your IP address, subnet mask, and default gateway. Record these values in the spaces provided below. 9. Click the “DNS” tab to see the primary and secondary DNS servers. Record these values in the spaces provided below.

  • Page 85: Disable Http Proxy

    NT 4.0 INDOWS Disable HTTP Proxy You need to verify that the “HTTP Proxy” feature of your Web browser is disabled. This is so that your browser can view the Barricade’s HTML configuration pages. Determine which browser you use and refer to “Internet Explorer”...

  • Page 86: Configuring Your Macintosh Computer

    TCP/IP ONFIGURING LIENT 3. Type “IPCONFIG /RENEW” and press the <ENTER> key. Verify that your IP Address is now 192.168.1.xxx, your Subnet Mask is 255.255.255.0 and your Default Gateway is 192.168.1.1. These values confirm that your Barricade is functioning. 4. Type “EXIT” and press <ENTER> to close the “Command Prompt” window.
  • Page 87 ONFIGURING ACINTOSH OMPUTER Follow these instructions: 1. Pull down the Apple Menu. Click “Control Panels” and select “TCP/IP.” 2. In the TCP/IP dialog box, make sure “Ethernet” is selected in the “Connect via:” field. 3. If “Using DHCP Server” is already selected in the “Configure”...

  • Page 88: Disable Http Proxy

    TCP/IP ONFIGURING LIENT 5. After writing down your IP settings, select “Using DHCP Server” in the “Configure” field and close the window. 6. Another box will appear asking whether you want to save your TCP/IP settings. Click “Save.” TCP/IP Configuration Setting IP Address ____.____.____.____ Subnet Mask...

  • Page 89: Netscape

    ONFIGURING ACINTOSH OMPUTER 3. Uncheck all checkboxes and click “OK.” Netscape 1. Open Netscape and click the stop button. Click “Edit” and select “Preferences.” 2. In the “Preferences” dialog box, in the left-hand column labeled Category,” select “Advanced.” Under the “Advanced” category, select “Proxies.”...

  • Page 90: Obtain Ip Settings From Your Barricade

    TCP/IP ONFIGURING LIENT Obtain IP Settings from Your Barricade Now that you have configured your computer to connect to your Barricade, it needs to obtain new network settings. By releasing old DHCP IP settings and renewing them with settings from your Barricade, you can verify that you have configured your computer correctly.

  • Page 91: Troubleshooting

    PPENDIX ROUBLESHOOTING Diagnosing LED Indicators The Barricade can be easily monitored through the front panel indicators to identify problems. This section describes common problems you may encounter and possible solutions. Troubleshooting Chart Symptom Action LED Indicators PWR LED is Off •...

  • Page 92: Troubleshooting Chart

    ROUBLESHOOTING Troubleshooting Chart Symptom Action LED Indicators USB Activity or Ethernet • Verify that the Barricade and attached device are Activity LED is Off powered on. • Be sure the cable is plugged into both the Barricade and corresponding device. •...
  • Page 93 LED I IAGNOSING NDICATORS Troubleshooting Chart Symptom Action Network Connection Problems Cannot Ping the • Verify that IP addresses are properly configured. For Barricade from the most applications, you should use the Barricade’s attached LAN, or the DHCP function to dynamically assign IP addresses to router cannot Ping any hosts on the attached LAN.
  • Page 94 ROUBLESHOOTING...

  • Page 95: Cables

    PPENDIX ABLES Ethernet Cable Caution: Do NOT plug a phone jack connector into any RJ-45 port. For Ethernet connections, use only twisted-pair cables with RJ-45 connectors that conform to FCC standards. Specifications Cable Types and Specifications Cable Type Max. Length Connector 10BASE-T Cat.

  • Page 96: Rj-45 Port

    ABLES RJ-45 Port Use the straight-through cable provided in the package to connect the Barricade to your PC. When connecting to other network devices such as an Ethernet switch, use the cable type shown in the following table. Attached Device Port Type Connecting Cable Type MDI-X Straight-through...

  • Page 97: Straight-Through Wiring

    RJ-45 P Straight-Through Wiring If the twisted-pair cable is to join two ports and only one of the ports has an internal crossover (MDI-X), the two pairs of wires must be straight-through. Straight-Through Cable Pin Assignments End 1 End 2 1 (Tx+) 1 (Tx+) 2 (Tx-)

  • Page 98: Adsl Cable

    ABLES ADSL Cable Use standard telephone cable to connect the RJ-11 telephone wall outlet to the RJ-11 ADSL port on the ADSL Router. Caution: Do NOT plug a phone jack connector into any RJ-45 port. For Ethernet connections, use only twisted-pair cables with RJ-45 connectors that conform with FCC standards.

  • Page 99: Specifications

    PPENDIX PECIFICATIONS Interface Specifications ADSL Standards Conformance Basic ADSL: ANSI T1.413 Issue 2 (full rate ADSL), RADSL, ITU G.992.1 (G.dmt), ITU G.992.2 (G.lite) Transport Protocols: PPP/ATM (RFC 2364), Bridged and Router IP/ATM (RFC 1483), Classical IP/ATM (RFC 1577), Native ATM, PPP/Ethernet (RFC 2516) ATM Attributes: 8 ATM PVCs, ATM SAR/AAL5, UNI3.1 signalling...

  • Page 100: Ethernet

    PECIFICATIONS Media Type Simultaneous data/voice Media Connection RJ-11 phone wire connection to ADSL provider Service Provider Equipment Digital Subscriber Line Access Multiplexer (DSLAM) Ethernet Access Method CSMA/CD Standards Conformance IEEE 802.3, 802.3u Communication Rate 10/100 Mbps Communication Mode Full or half duplex Media Supported 10BASE-T: 100-ohm Category 3, 4, 5 twisted-pair 100BASE-TX: 100-ohm Category 5 twisted-pair...

  • Page 101: Management

    HYSICAL HARACTERISTICS LAN Features • IEEE 802.1D (self learning transparent Bridging) • DHCP Server • DHCP Relay Agent • DHCP Client • DNS Proxy • USB host driver for Windows 98, 98SE, ME, 2000, XP Applications Supported ALG support (FTP, IRC, ICMP, CuSeeMe, RTSP, IKE, HTTP, SMTP, POP3, Telnet, SNTP, NNTP) Other Functions NAT, NAPT, DNS Proxy, DHCP (server/client/relay), Virtual Server,...
  • Page 102 PECIFICATIONS Input Power 9V DC (1.0A) Power Consumption 9 Watts max. @ 100-240 VAC Temperature Operating 0 to 50°C Storage -40 to 70°C Humidity 10% to 90% (non-condensing) Compliances CE Mark Emissions FCC Class B FCC Part 68 (in-line filter only) VCCI Class B Industry Canada Class B EN55022 (CISPR 22) Class B...

  • Page 103: Glossary

    PPENDIX LOSSARY 10BASE-T IEEE 802.3 specification for 10 Mbps Ethernet over two pairs of Category 3, 4, or 5 UTP cable. 100BASE-TX IEEE 802.3u specification for 100 Mbps Fast Ethernet over two pairs of Category 5 UTP cable. Asymmetric Digital Subscriber Line (ADSL) ADSL allows more data to be sent over existing copper telephone lines than analog or ISDN technologies.
  • Page 104 LOSSARY Bridging A device that connects two LANs, or two segments of the same LAN. Unlike routers, bridges are protocol-independent. They simply forward packets without analyzing and re-routing messages. Consequently, they may be faster than routers, but are less versatile. Challenge-Handshake Authentication Protocol (CHAP) A type of authentication in which the authentication agent (that is, the router) sends the client a key to use to encrypt the user name and...

  • Page 105: Dynamic Routing

    LOSSARY Dynamic Routing Dynamic routing uses a routing protocol to exchange routing information with neighboring routers on the network. It calculates routing tables based on a given metric, such as least number of hops or shortest path. It can respond to changes in the status or traffic on the network, re-routing traffic as required.
  • Page 106 LOSSARY G.lite A standard that defines the more economical splitterless ADSL connection that transmits data at up to 1.5 Mbps downstream and 512 Kbps upstream. This ADSL option can be installed without an on-site visit by the service provider. IEEE 802.3 Defines carrier sense multiple access with collision detection (CSMA/CD) access method and physical layer specifications.

  • Page 107: Multiprotocol Encapsulation

    LOSSARY Media Access Control (MAC) A portion of the networking protocol that governs access to the transmission medium, facilitating the exchange of data between network nodes. Media Dependent Interface (MDI) The IEEE standard for the UTP interface to twisted-pair Ethernet. MDI defines a straight-through pin assignment that allows you to connect the router to any workstation or server that has a properly installed network adapter card using the supplied straight-through cable.
  • Page 108 LOSSARY almost arbitrary number of connections is multiplexed using TCP port information. Password Authentication Protocol (PAP) A basic form of authentication, in which a user’s name and password are transmitted over a network and compared to a table of name-password pairs.
  • Page 109 LOSSARY Protocol Multiplexing See Multiprotocol Encapsulation Quality of Service (QoS) A network protocol used to specify a guaranteed throughput level. This protocol is often used by ATM providers to guarantee their customers a minimum end-to-end latency. Rate Adaptive ADSL (RADSL) An ADSL service that automatically adjusts the transmission rate depending on line quality and loading to ensure data quality (such as, keeping within a maximum error rate).

  • Page 110: Virtual Circuit

    LOSSARY Routing Routing forwards incoming IP packets using statically defined routes or a dynamic routing protocol such as RIP-2. Routing Information Protocol (RIP) A protocol that specifies how routers exchange routing table information. Splitter A hardware device used in G.dmt to split the data and voice traffic before passing it on to the network and phone system.
  • Page 111 LOSSARY Virtual Host A network device, such as this router, or a server configured to perform Network Address Translation (NAT). Virtual Path An ATM network connection between two nodes that spans across a series of routers or Layer-3 switches. Virtual Server Transparently redirects specific service requests (such as Web or FTP) to a dedicated local server.
  • Page 112 LOSSARY Glossary-10...
  • Page 113 Fax: 61 29416 0474 India: 91 22 8204437; Fax: 91 22 8204443 If you are looking for further contact information, please visit www.smc.com or www.smc-europe.com. Model Number: SMC7401BRA Pub. No: 150000013600E Part No: EU 750.7582, UK 750.7595 Revision Number: F1.08 E052002-R01...
