Adding EOA Interfaces

Follow these instructions to add an EOA interface:
1. Click the [WAN] tab, and then click [EOA] in the task bar.
2. Click [Add]. The [EOA Interface – Add] page appears,
as shown in Figure 41.
3. Select one of the predefined interface names from the
[EOA Interface:] drop down list.
4. From the [Interface Sec Type:] drop-down list, select the
level of IP Firewall to be used on this interface, as defined
on page 115.
5. In the [Lower Interface:] field, select the lower-level interface
name over which this protocol is being configured. If you are
using the ADSL Barricade as a bridge only, skip to step 10.
6. If you are using the ADSL Barricade as a router on your LAN,
enter the IP address for the interface in the [Conf. IP Address:]
field, and enter the network in the [Netmask:]. This address

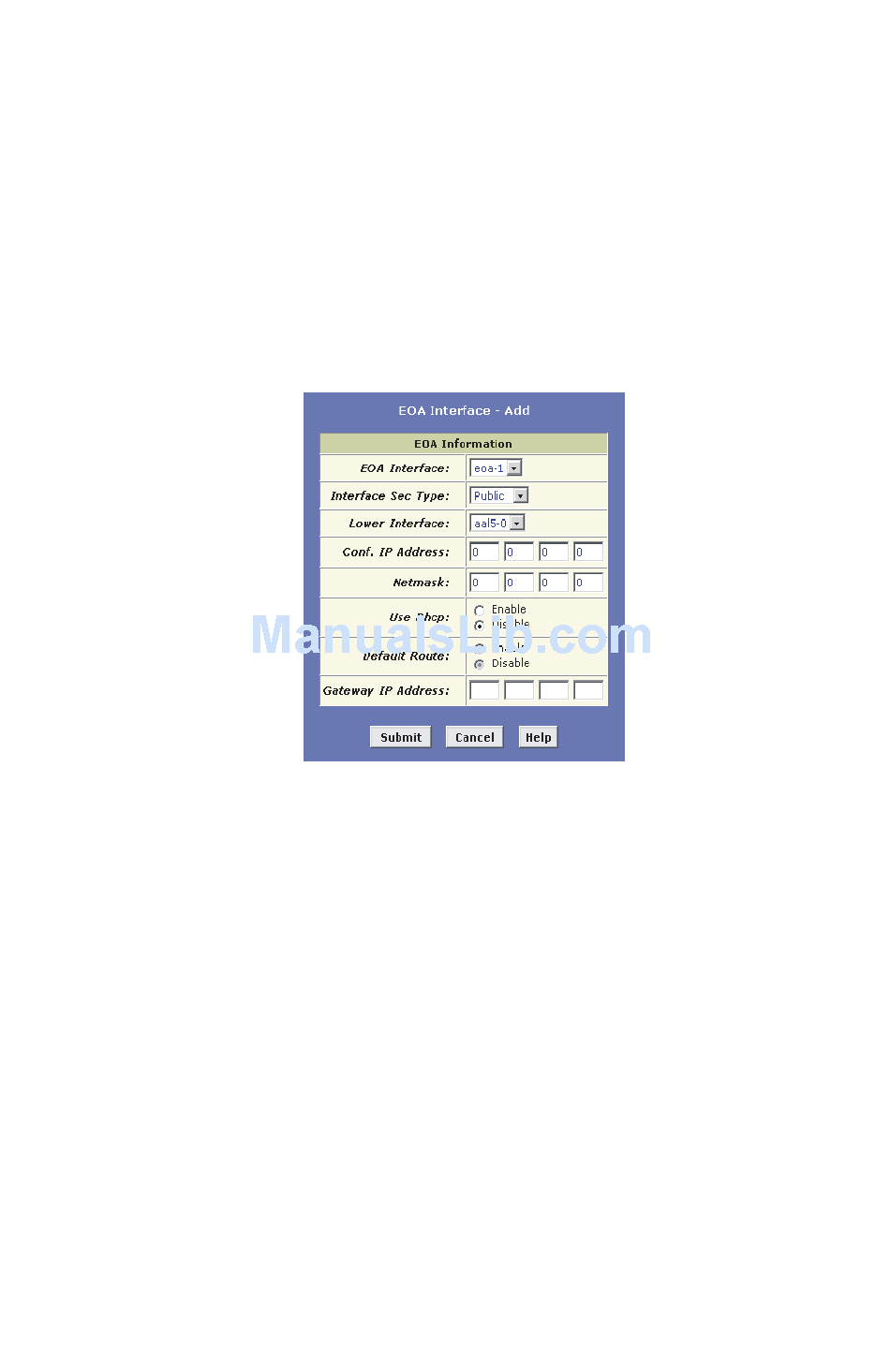

Figure 41. EOA Interface – Add Page
Adding EOA Interfaces
117
