| Hardware Description
C 2
HAPTER

Rear Panel

Table 1: System and Port Status LEDs (Continued)
LED Condition
100Mbps On Green
(SMCFS2401
only)
Off
RJ-45 P
ORTS
The switch contains 16/24 100BASE-TX RJ-45 ports. All ports support automatic
MDI/MDI-X operation, so you can use straight-through cables for all network
connections to PCs or servers, or to other switches or hubs.
Each of these ports support auto-negotiation, so the optimum transmission
mode (half or full duplex), and data rate (10 or 100 Mbps) is selected
automatically.
Each port also supports IEEE 802.3x auto-negotiation of flow control, so the
switch can automatically prevent port buffers from becoming saturated.
R P
EAR ANEL
The rear panel of the switch features a power socket and a grounding terminal.

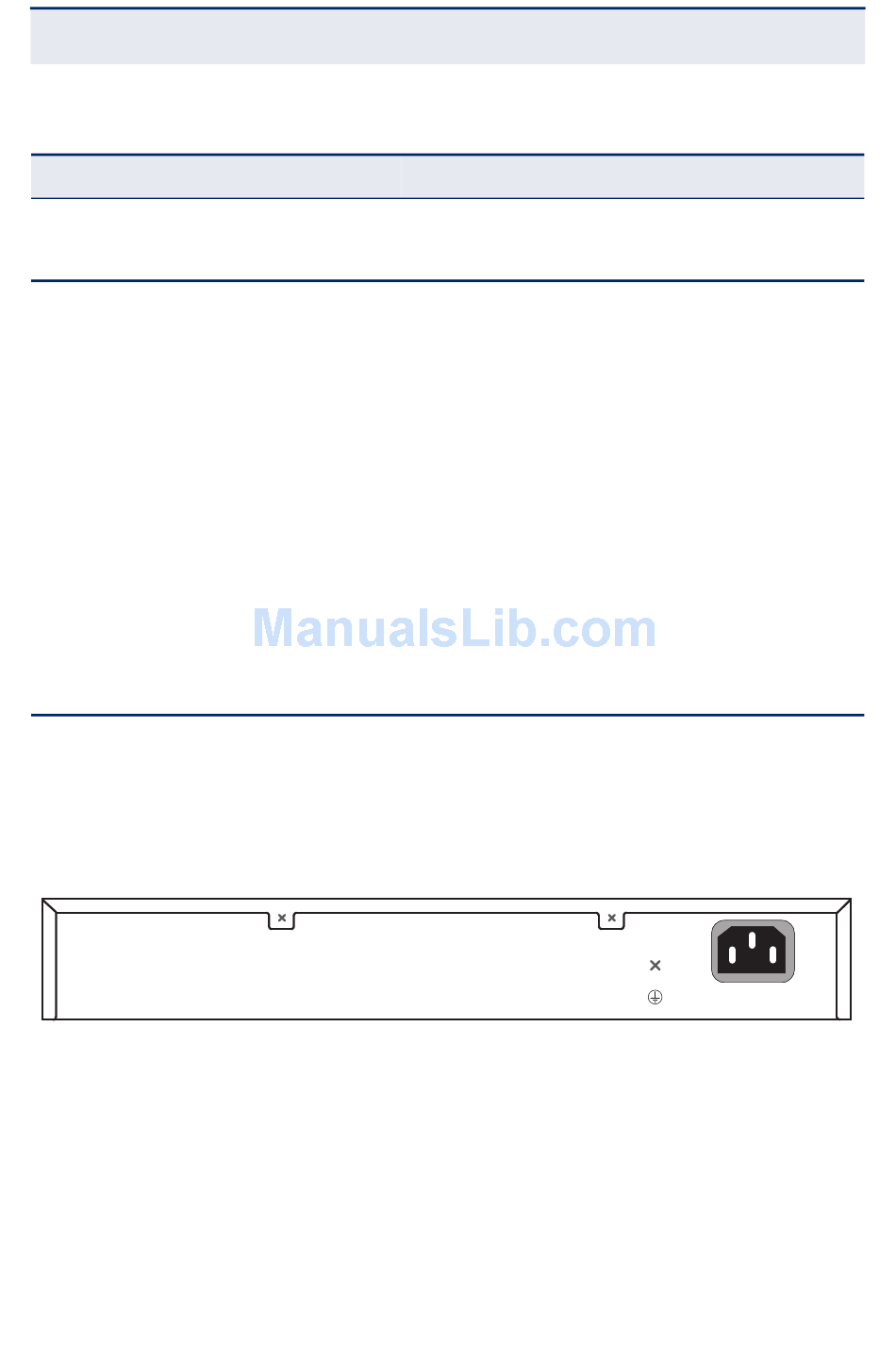

Figure 3: SMCFS2401 Switch Rear Panel
G T
ROUNDING ERMINAL
The switch already includes a lightning protection mechanism. However, you can
also ground the switch through the PE (Protective Earth) wire of an AC power
cord, or with a grounding cable. For detail information, see
Ground" on page 23.
Status
The port is operating at 100 Mbps.
The port is operating at 10 Mbps.
– 16 –
100-240V~ 50/60Hz 0.3A
"Connecting to
