Administrative Tasks
Follow these steps to modify port settings:
1. Log into the Configuration Manager, click the [Admin] tab.
Then click [Port Settings] in the task bar. The [Port Settings]
page is shown in Figure 61.
2. Type the new port number(s) in the appropriate text box(es)
and click [Submit]. The default port numbers are shown in
Figure 64. You can enter non-standard port numbers in the
range 61000-62000.
3. Click [Commit & Reboot] in the task bar, and click [Commit]
to save your changes to the permanent memory.
4. On the [Commit & Reboot] page, click [Reboot].
Note: The new settings will not be effective until
166

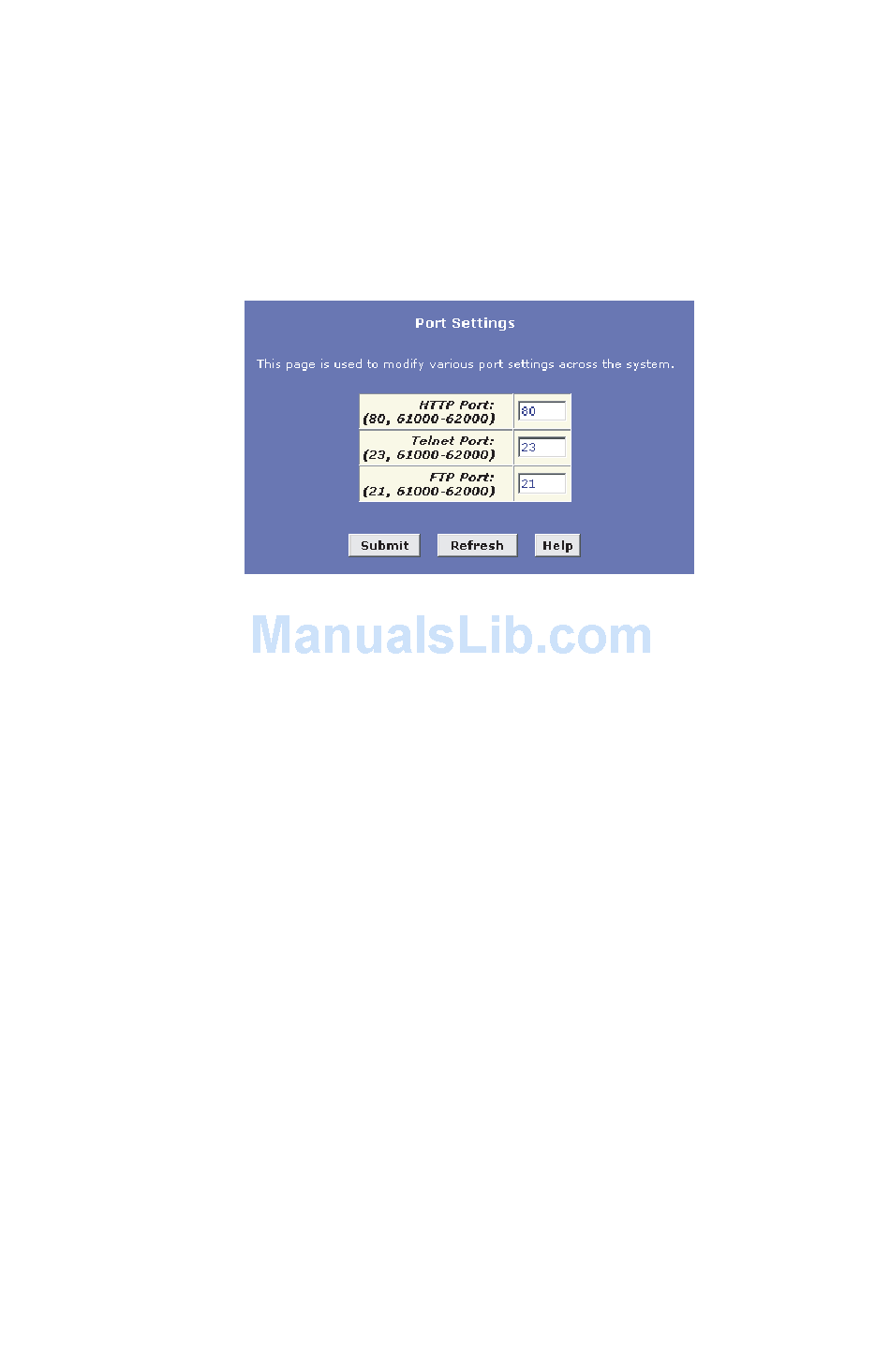

Figure 61. Port Settings Page
you reboot the system.
