Viewing Dsl Line Information - SMC Networks WUSB32 - annexe 2 Manual

V DSL L
IEWING INE
I
NFORMATION
To view configuration parameters and performance statistics
for the ADSL Barricade's DSL line, log into Configuration
Manager. Then click the [WAN] tab. The [DSL Status] page

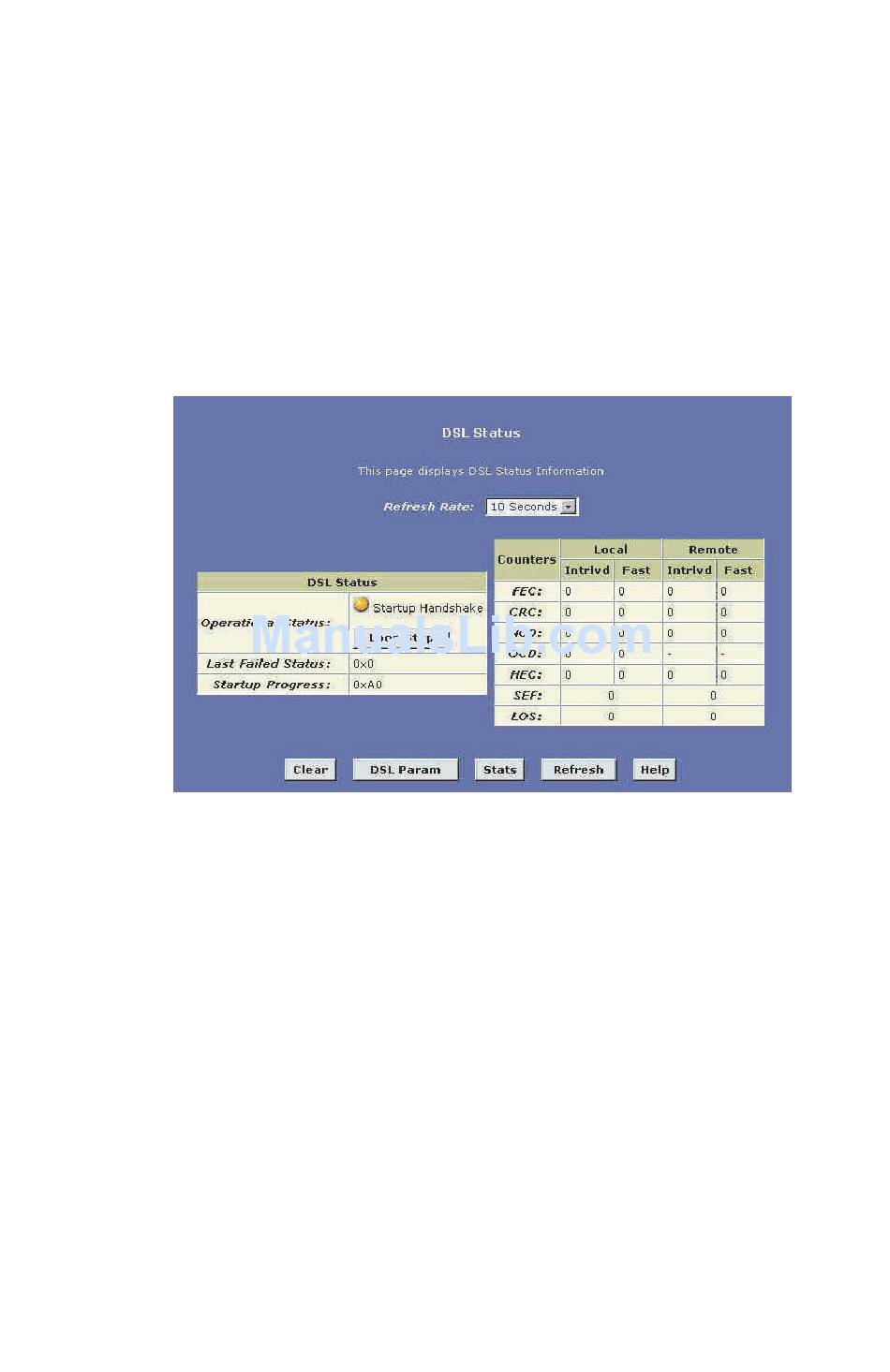

appears by default, as shown in Figure 53.
Figure 53. DSL Status Page
The [DSL Status] page displays current information on the DSL
line performance. The page refreshes according to the setting
in the [Refresh Rate] drop-down list, which you can configure.
In the [DSL Status] table, the [Operational Status] setting displays
a red, orange, or green ball to indicate that the DSL line is idle,
starting up, or up-and-running, respectively. You can click [Loop
Stop] to end the DSL connection. To restart the connection, you
can click [Loop Start].
