Appendix-A: Fan Control Wiring Diagram

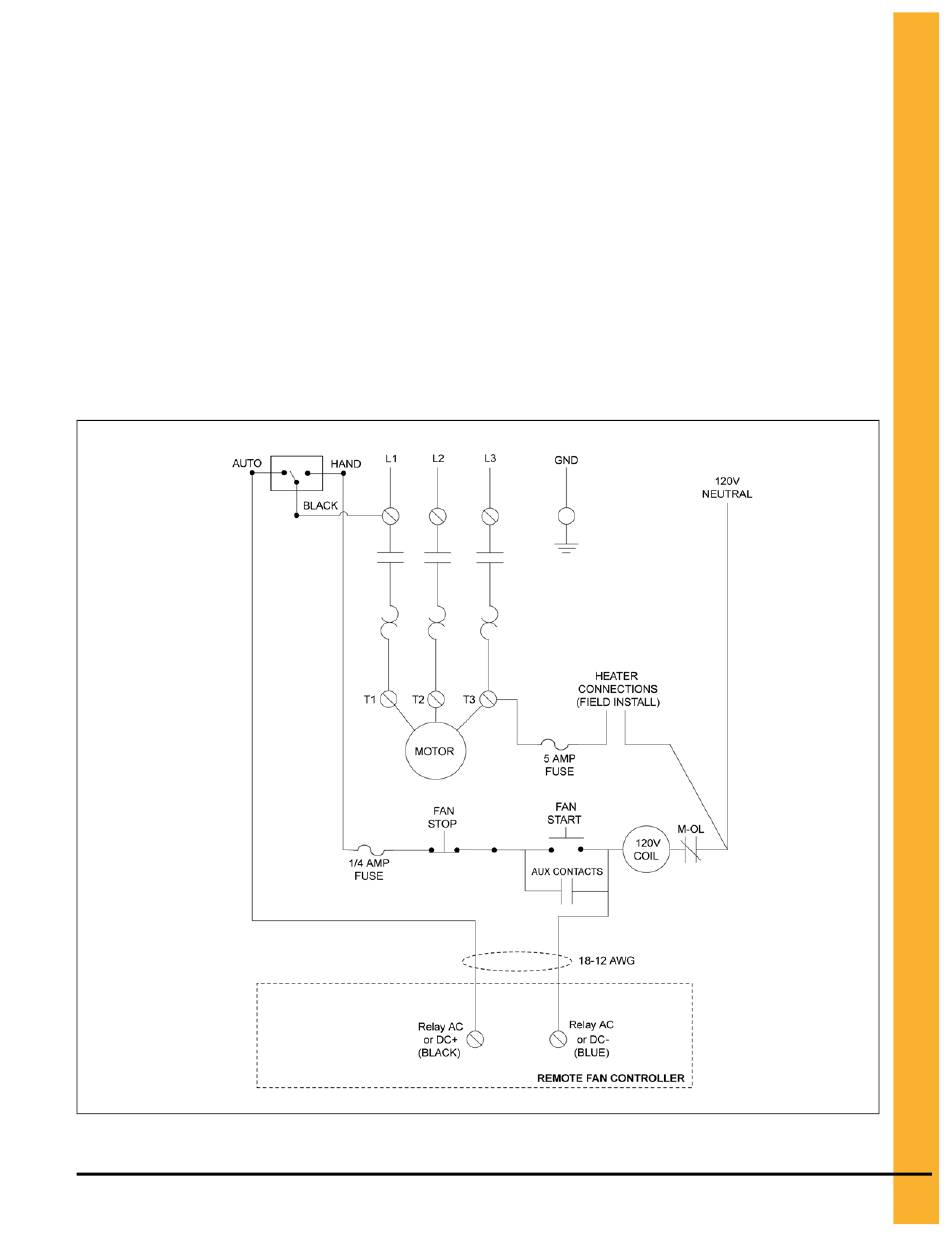

Figure 3-1 Fan control wiring (3 Phase 230 Volt Schematic)
PNEG-2394 Fan Control Module
35
