Chapter 2: Installing the Fan Control Module

Installing the Plenum Sensor

NOTE: If the system does not include the Plenum Sensor, proceed to the next section. Leave the cord
grip sealing plug located in the center cord grip marked "Plenum Sensor" in place. Do not remove
this sealing plug. Proceed to the next section.
1. Drill a 2-1/2" hole, with supplied hole saw, approximately in the middle between the bin's foundation
and the plenum floor's horizontal bolt line. Note that the location of the hole should be on the peak of
the corrugation (not in the valley).
2. Before inserting the Plenum Sensor assembly into the hole, apply loctite glue (25) to the four
Plenum Sensor bolts, between the foam core of the sensor and the flat metal plate farthest from the
plenum cable.

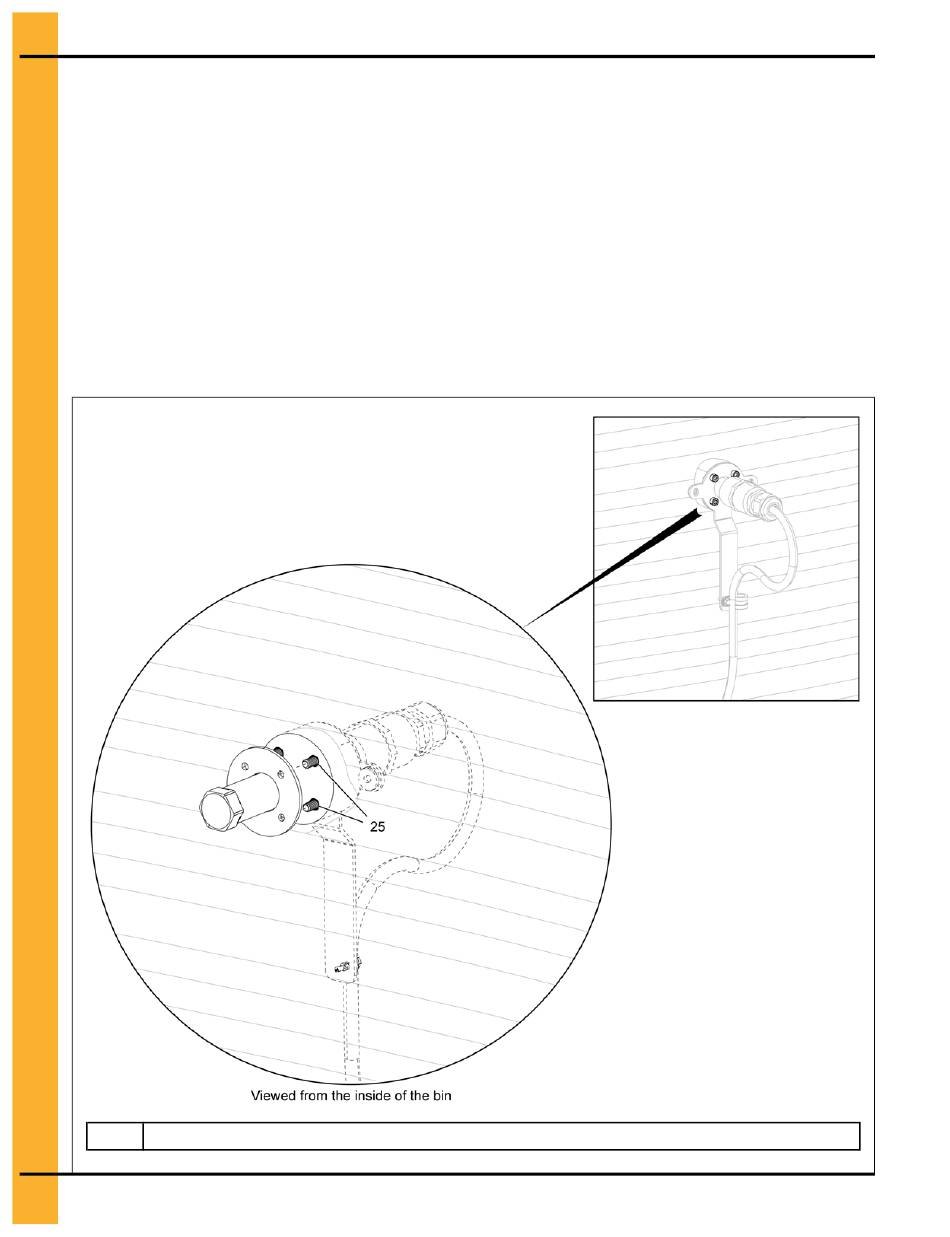

Figure 2-20 Applying the loctite glue
Loctite glue
25
28 PNEG-2394 Fan Control Module
