3. Install the provided metal legs (14) onto the backside of the Fan Control Module (1). Make sure the
legs are facing sideways as shown below.

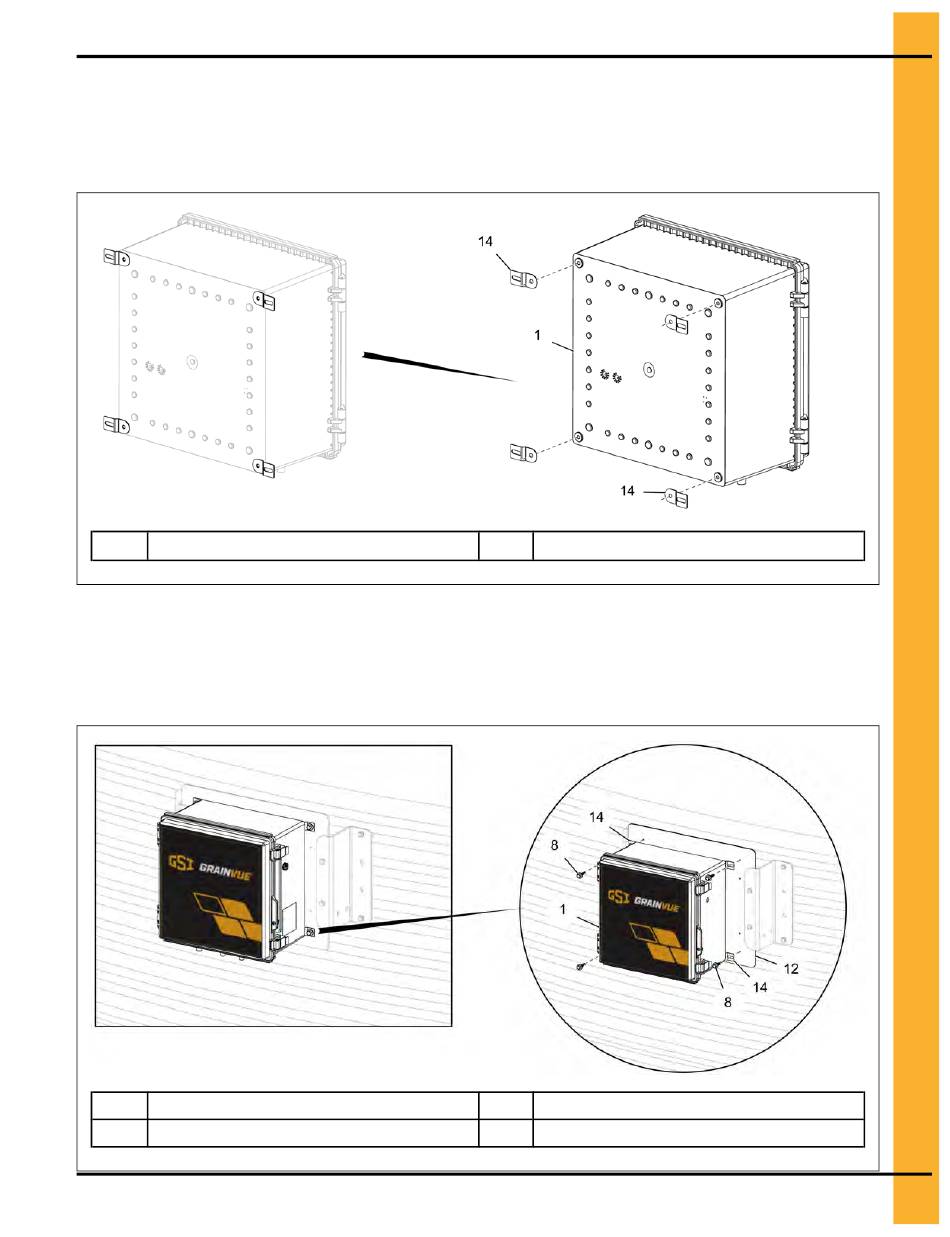

Figure 2-4 Installing the metal legs to the Fan Control Module
1
Fan Control Module
4. Align the metal legs (14) with the pilot holes on the mounting plate (12) and use the provided #10
self-tapping screws (8) to fasten them together.
Figure 2-5 Installing the Fan Control Module to the mounting plate
1
Fan Control Module
#10 self-tapping screw
8
PNEG-2394 Fan Control Module
Chapter 2: Installing the Fan Control Module
Metal leg
14
Mounting plate
12
Metal leg
14
