Chapter 2: Installing the Fan Control Module
Installing the Outdoor Sensor
1. Mount the provided Outdoor Sensor bracket (28) onto the already installed Z-brackets (11) for the
Fan Control Module using 5/16" x 1" bolts (6) and 5/16" nylock nuts (10).

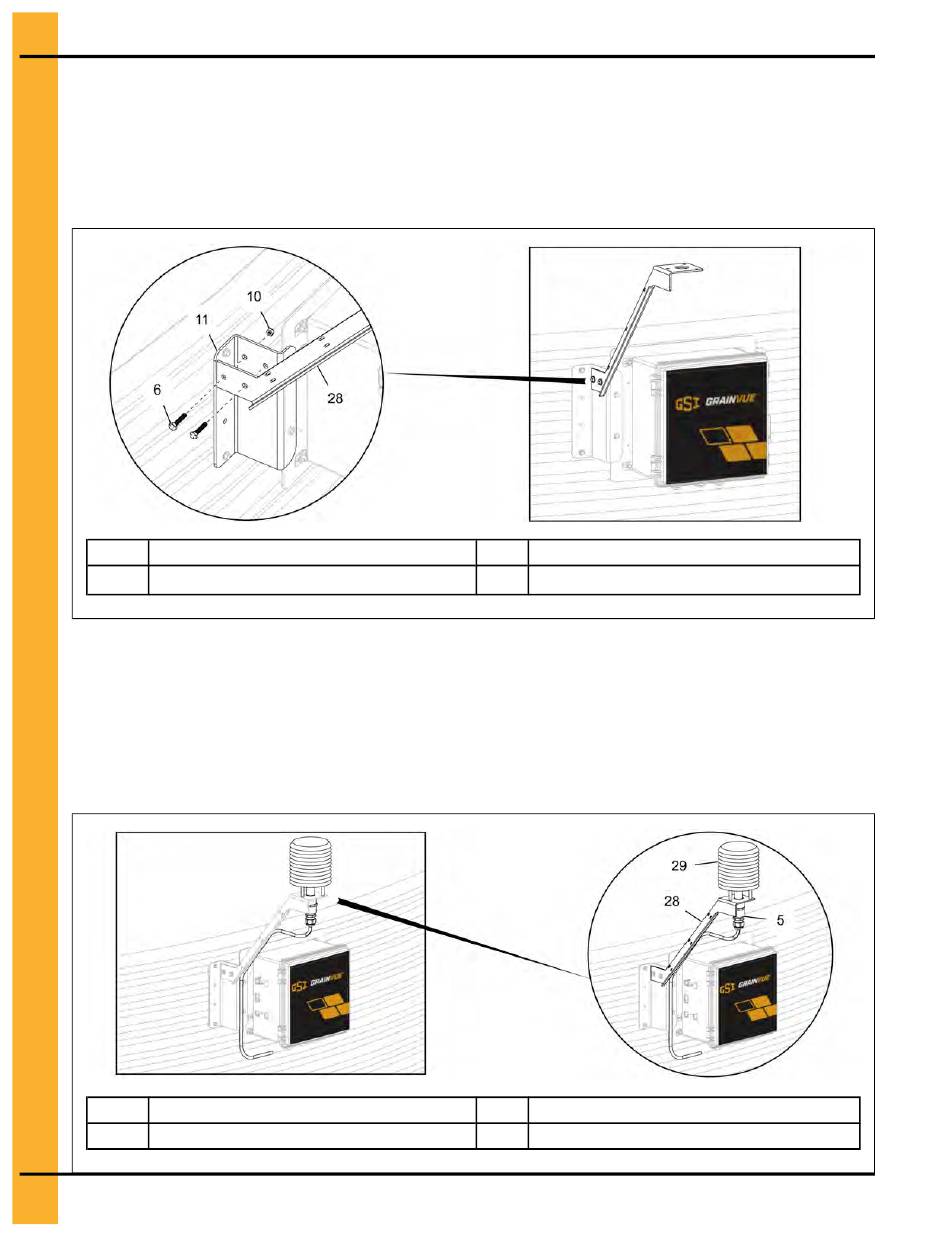

Figure 2-24 Installing the Outdoor Sensor bracket
6
5/16" x 1" bolt
5/16" nylock nut
10
2. Slide the studs of the Rika Solar Shield (29) through the holes on the top of the Outdoor Sensor
bracket (28). Use the provided wing nuts to fasten the two together.
3. Slide the Outdoor Sensor (5) through the center hole of the Outdoor Sensor bracket (28) and tighten
the cable gland on the Rika Solar Shield (29) to hold the Outdoor Sensor (5) in place.
Figure 2-25 Installing the Outdoor Sensor
5
Outdoor Sensor
28
Outdoor Sensor bracket
32
11
Z-bracket
28
Outdoor Sensor bracket
29
Rika Solar Shield
PNEG-2394 Fan Control Module
