Chapter 2: Installing the Fan Control Module
7. Locate the green 4 position terminal block (31) marked "OUT" above the cord grip (17). Starting with
the white wire and the left most position on the terminal block (31), depress the orange locking tab
(19) using a flat head screwdriver with blade width of 1/8" (3.5 mm). Insert the stripped end of the
wire into the wire hole and release the locking tab (19). Inspect the connection and make sure that
no copper wire is visible, and gently pull on the wire to ensure the connection is secure. Repeat the
process for each of the remaining wires, in order: green, red, black.
8. Pull excess cable (30) back through the cord grip (17) so that there is not too much excess cable
(30) in the box. Make sure that the cord grip (17) is entirely filled with jacketed cable.
9. Tighten the external compression nut of the cord grip (17). It is tight enough when the cable (30)
does not move when pulled with moderate force. An example image of a properly completed
connection is shown in

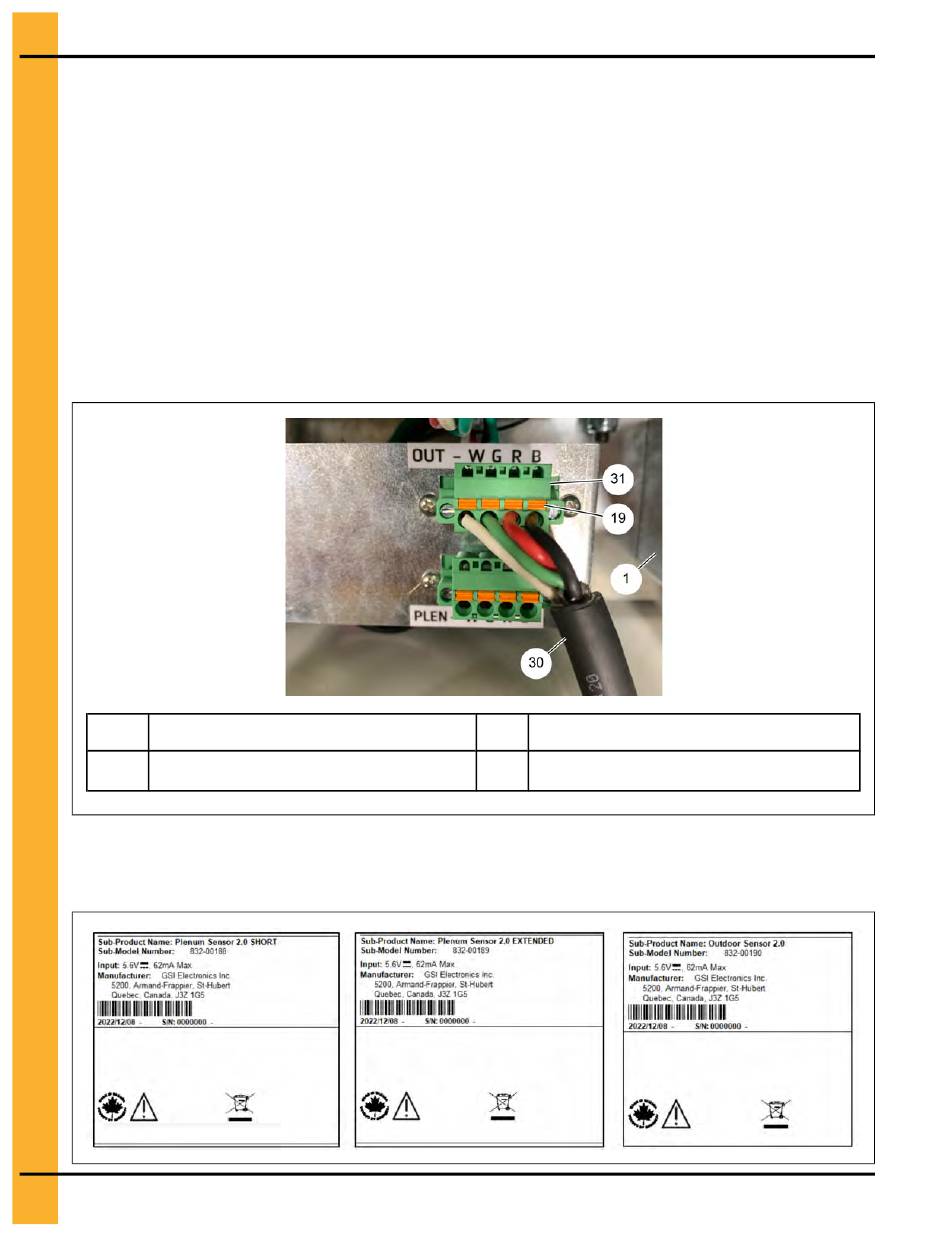

Figure 2-27 Connecting the wires to the terminal block
1
Fan Control Module
Locking tab
19
NOTE:
Figure 2-28, page 34
Sensor. This information can also be found on the outside of each component.
Figure 2-28 Switch and sensors - electrical specification
34
Figure 2-27, page
34.
shows the electrical specifications for the Plenum Sensor and Outdoor
30
Outdoor Sensor cable
Terminal block (for Outdoor Sensor)
31
PNEG-2394 Fan Control Module
