4. Use zip ties to secure the Outdoor Sensor cable (30) to the Outdoor Sensor bracket (28) using the
slots on the bracket.
5. Open the lid of the Fan Control Module (1) and loosen off the right most cord grip (17) external
compression nut marked "Outdoor Sensor". Remove the cord grip sealing plug. Route the Outdoor
Sensor cable (30) through the cord grip (17). Pull a working length of cable (30) through the cord
grip (17).
6. Remove the pre-cut insulation ends from each of the wires to expose the copper wire. If the wires
are damaged, you can re-strip the wire ends. Using wire strippers with an 18AWG stranded wire
stripping hole, strip off 3/8" (10 mm) of insulation from each of the four conductors.

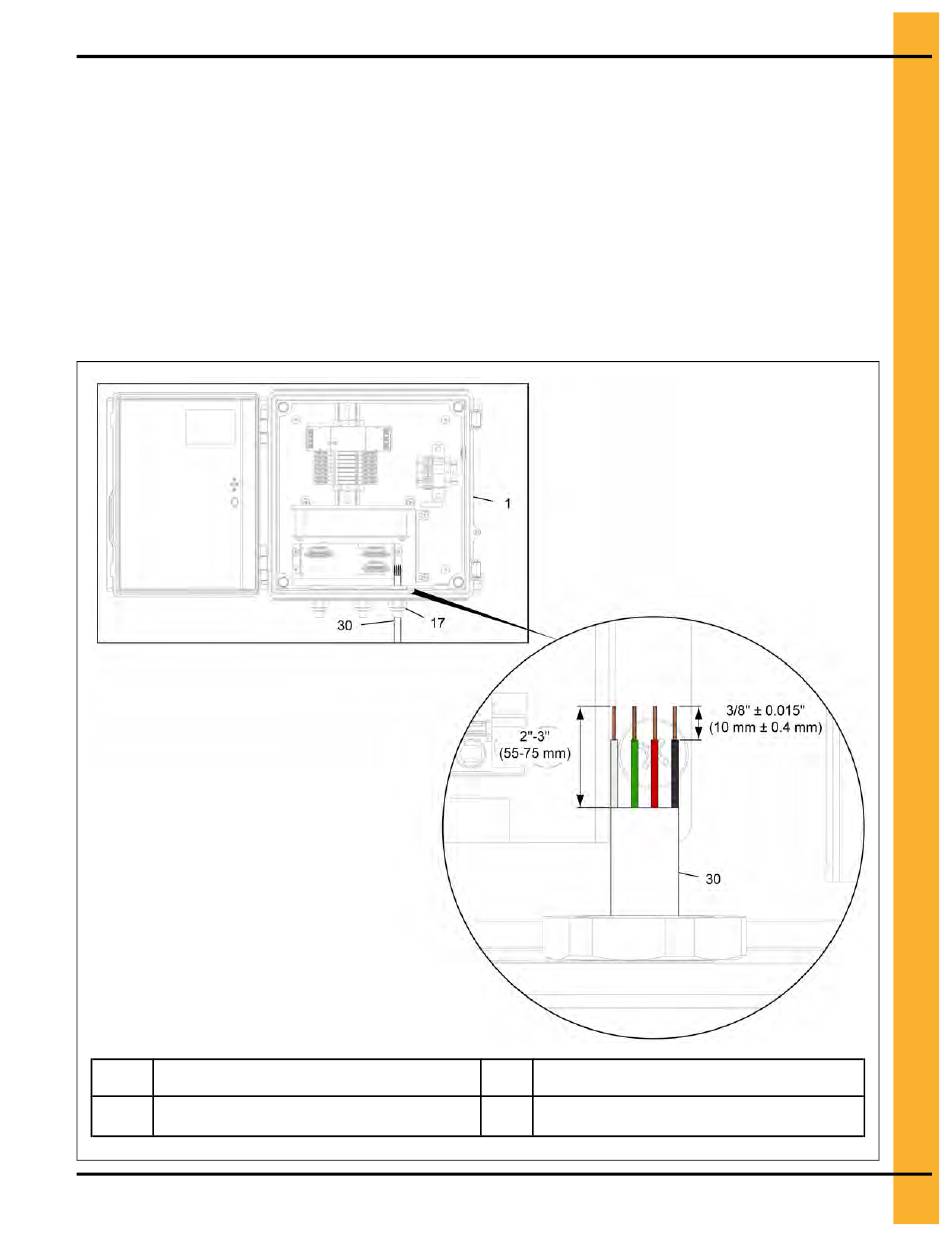

Figure 2-26 Stripping the cable inside the Fan Control Module
1 Fan Control Module
Cord grip
17
PNEG-2394 Fan Control Module
Chapter 2: Installing the Fan Control Module
30 Outdoor Sensor cable
