3. Insert the Plenum Sensor (3) into the 2-1/2" hole with the handle in the downward position as shown
in
Figure 2-20, page
edges of the hole.
4. Using two self-tapping screws (7), fasten the Plenum Sensor mounting plate to the bin wall. Then
tighten the socket head cap screws (9) until the foam core has expanded and is firmly set into the
hole. Do not overtighten the screws (9) for risk of damaging the foam core.
5. Install the cable clamp (26) to the end of the outer mounting plate and insert the Plenum Sensor
cable (4) through the clamp.
6. Route the Plenum Sensor cable (4) from the Plenum Sensor (3) along the bin to the Fan Control
Module (1). Manage the cable every 3' using P-clips.

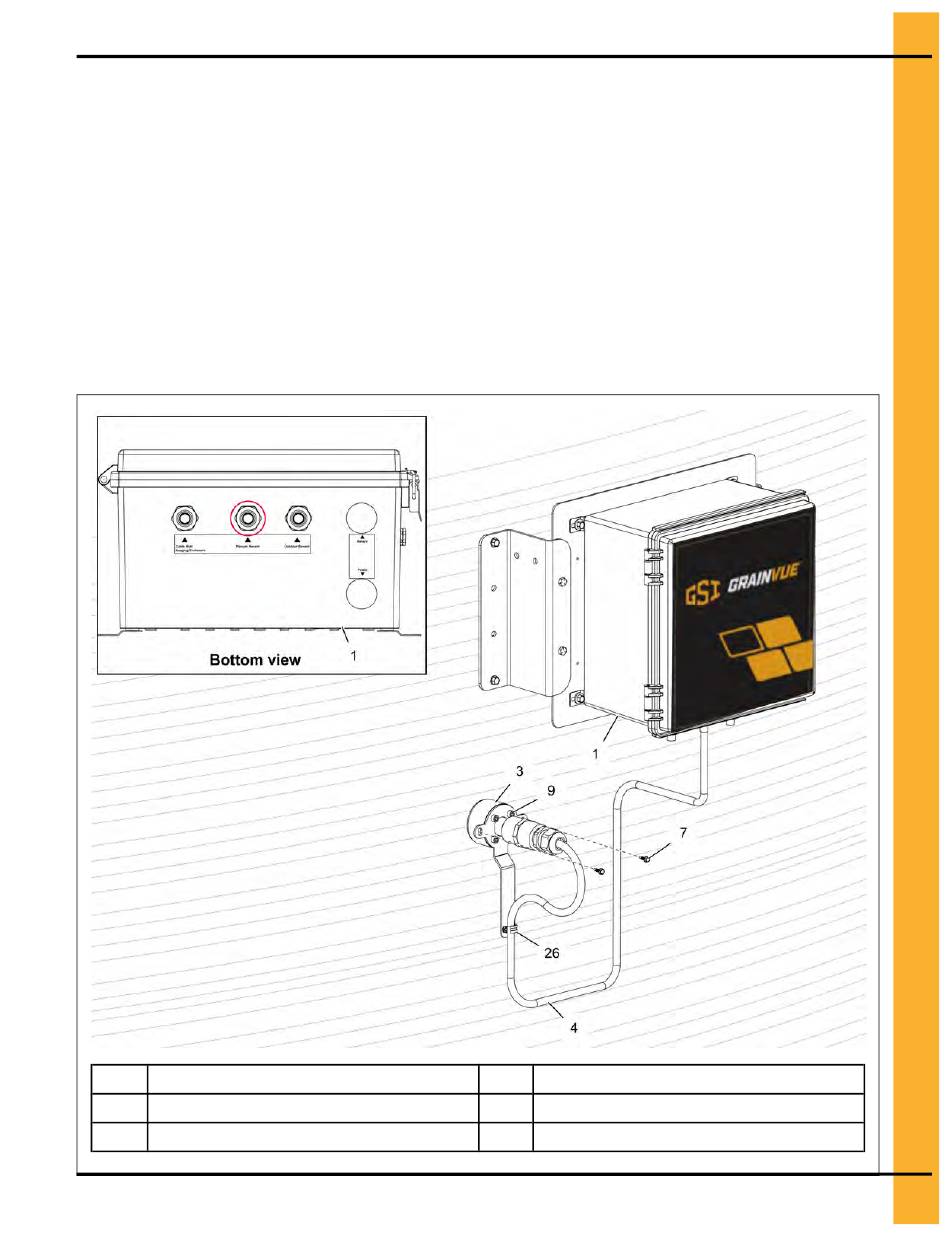

Figure 2-21 Installing the Plenum Sensor
1
Fan Control Module
3
Plenum Sensor
4
Plenum Sensor cable
PNEG-2394 Fan Control Module
Chapter 2: Installing the Fan Control Module
28. Push the foam core of the Plenum Sensor (3) into the hole, sealing all
5/16" self-tapping screw
7
Socket head cap screw
9
Cable clamp
26
29
