Chapter 2: Installing the Fan Control Module

Intended Use of Equipment

The Fan Control Module is intended to be used with the GrainVue Cable Monitoring System. When
connected to a GrainVue Cable Monitoring Hub, the Fan Control Module provides electrical power to the
Cable Monitoring Hub and features 8 control channels for use with aeration fans and/or heaters. In
addition to the main Fan Control Module unit, a Plenum and Outdoor Sensor are also included to measure
environmental conditions in the plenum space and outside of a grain storage bin.
Only devices and sensors sold by GSI Group may be used with the Fan Control Module.

System Overview

The parts list below outlines the primary components of the Fan control Module.

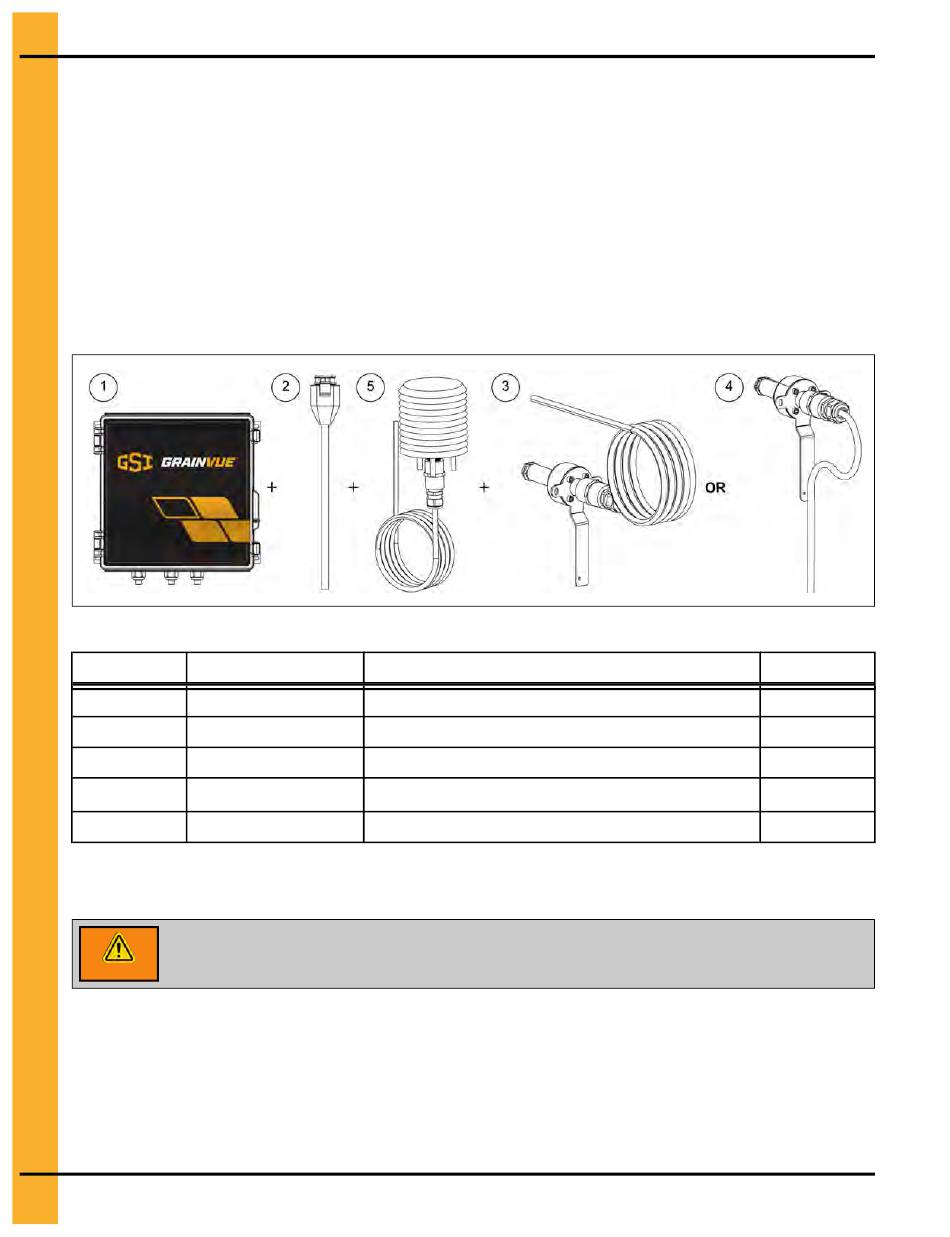

Figure 2-1 Fan Control Module parts identification
Table 2-1 Fan Control Module parts list
Ref Number
1
2
3
4
5
1 Part Number will vary depending on the use of relays or logic control in the Fan Control Module.
2 Part Number will vary depending on the bin size.
Do not turn ON the Fan Control Module until all the necessary connections are done.
WARNING

Manufacturer Information

GSI Electronics
5200 Armand Frappier Saint-Hubert, QC
Canada J3Z 1G5
16
Part Number
074-1198A 1
511-0061B 2
832-00188
832-00189
832-00190
Description
Fan Control Module
Cable Hub to Fan Control Module Cable
Plenum Sensor
Plenum Sensor with Long Cable
Outdoor Sensor
Quantity
1
1
1
1
1
PNEG-2394 Fan Control Module
