11.Locate the green 4 position terminal block (27) marked "PLEN" above the cord grip (17). Starting
with the white wire and the left most position on the terminal block (27), depress the orange locking
tab (19) using a flat head screwdriver with blade width of 1/8" (3.5 mm). Insert the stripped end of
the wire into the wire hole and release the locking tab (19). Inspect the connection and make sure
that no copper wire is visible, and gently pull on the wire to ensure the connection is secure. Repeat
the process for each of the remaining wires, in order: green, red, black.
12.Pull excess cable (4) back through the cord grip (17) so that there is not too much excess cable (4)
in the box. Make sure that the cord grip (17) is entirely filled with jacketed cable (4).
13.Tighten the external compression nut of the cord grip (17). It is tight enough when the cable (4)
does not move when pulled with moderate force. An example image of a properly completed
connection is shown in

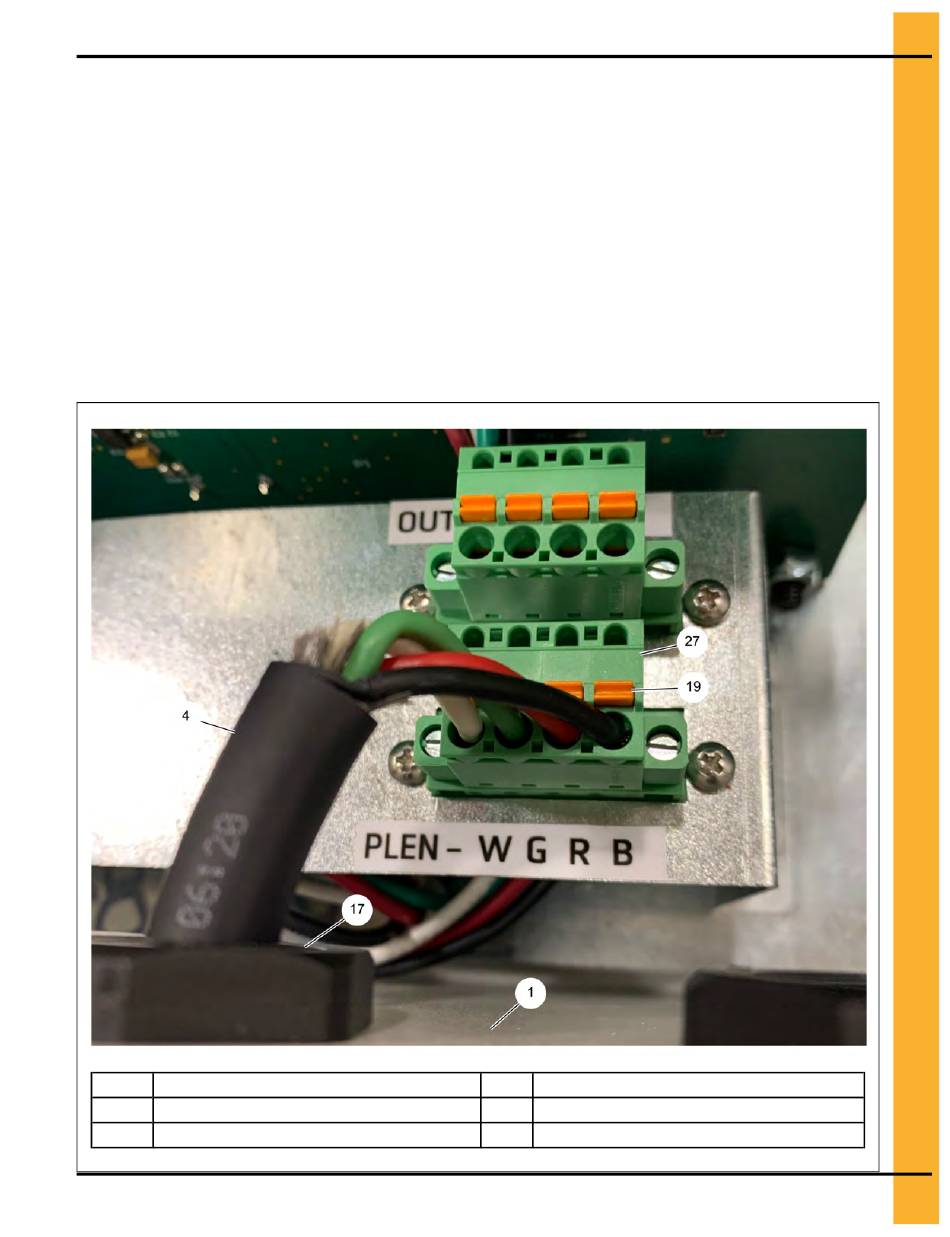

Figure 2-23 Connecting the wires to the terminal block
1 Fan Control Module
Plenum Sensor with Long Cable
4
Cord grip
17
PNEG-2394 Fan Control Module
Chapter 2: Installing the Fan Control Module
Figure 2-23, page 31.
Locking tab
19
Terminal block (for Plenum Sensor)
27
