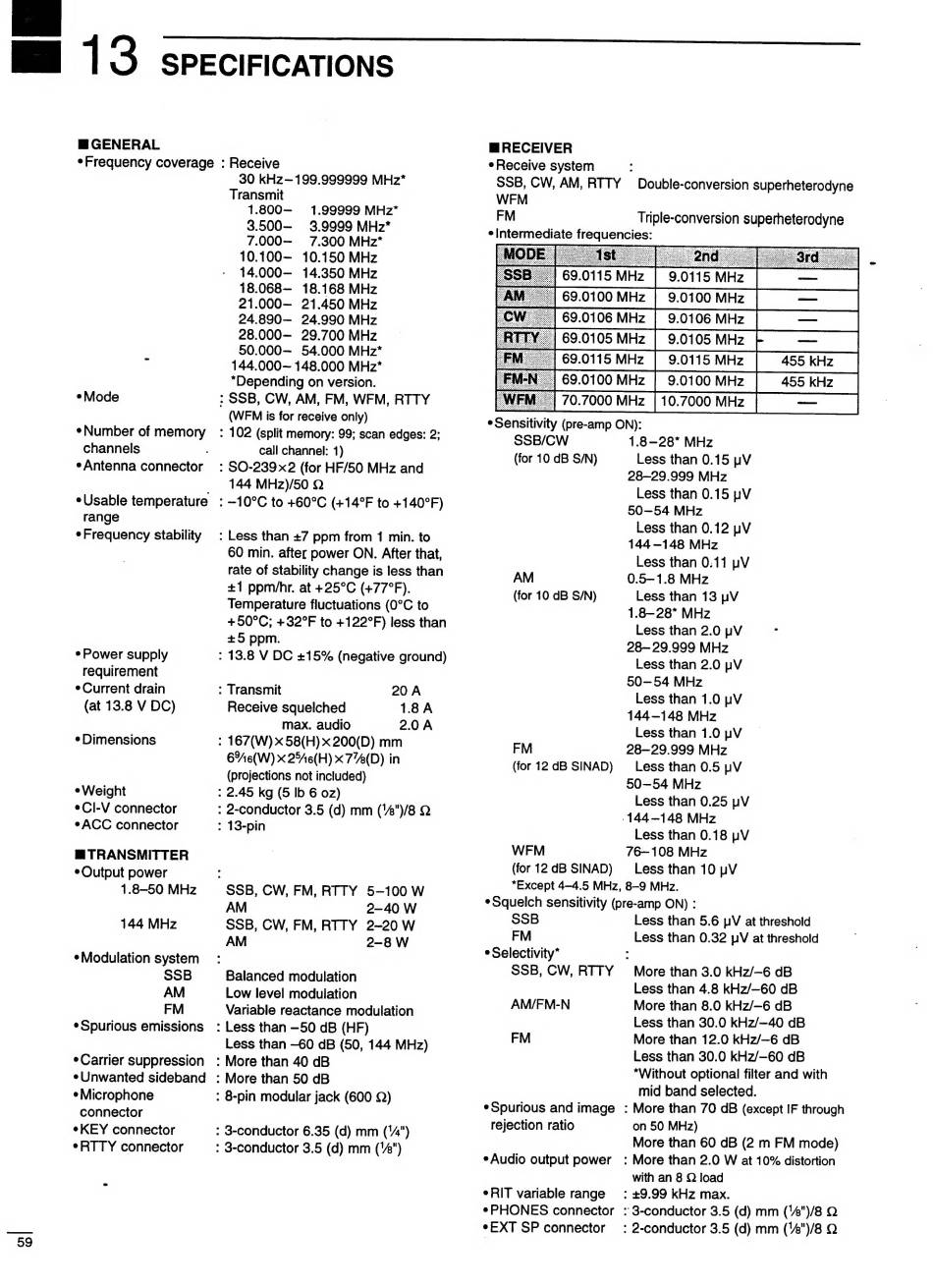

E 13
@ GENERAL
e Frequency coverage : Receive
30 kKHz~—199.999999 MHz*
SPECIFICATIONS
MRECEIVER
e Receive system :
SSB, CW, AM, RTTY
Double-conversion superheterodyne
21.000- 21.450 MHz
24.890-— 24.990 MHz
28.000— 29.700 MHz
50.000— 54.000 MHz*
144.000— 148.000 MHz*
*Depending on version.
: SSB, CW, AM, FM, WFM, RTTY
. =
690100 MHz | 9.0100MHz | —
690106 Miz | 9.0106 MHz | =
soom F =
3.0100 MHZ
70.7000 MHz [10.7000
MHz | —
e Mode
Number of memory
channels
e Antenna connector
e Usable temperature
range
e Frequency stability
e Power supply
requirement
e Current drain
(at 13.8 V DC)
e Dimensions
e Weight
eCl-V connector
eACC connector
TRANSMITTER
e Output power
1.8-50 MHz
144 MHz
e Modulation system
SSB
e Spurious emissions
e Carrier suppression
e Unwanted sideband
e Microphone
connector
*KEY connector
eRTTY connector
(WFM is for receive only)
: 102 (split memory: 99; scan edges: 2;
call channel: 1)
: SO-239 x2 (for HF/50 MHz and
144 MHz)/50 Q
> ~10°C to +60°C (+14°F to +140°F)
: Less than +7 ppm from 1 min. to
60 min. after power ON. After that,
rate of stability change is less than
+1 ppm/hr. at +25°C (+77°F).
Temperature fluctuations (0°C to
+50°C; +32°F to +122°F) less than
+5 ppm.
: 13.8 V DC +15% (negative ground)
: Transmit 20A
Receive squelched 1.8A
max. audio 2.0A
: 167(W)x58(H)x200(D) mm
6%6(W) x 25/6(H) x774(D) in
(projections not included)
: 2.45 kg (5 Ib 6 oz)
: 2-conductor 3.5 (d) mm (14")/8 Q
> 13-pin
"SSB, CW, FM, RTTY 5-100 W
AM 2-40 W
SSB, CW, FM, RTTY 2-20 W
AM 2-8 W
Balanced modulation
Low level modulation
Variable reactance modulation
: Less than —50 dB (HF)
Less than —60 dB (50, 144 MHz)
: More than 40 dB
: More than 50 dB
: 8-pin modular jack (600 Q)
: 3-conductor 6.35 (d) mm (14")
: 3-conductor 3.5 (d) mm ('%")
e Sensitivity (pre-amp ON):
SSB/CW
(for 10 dB S/N)
AM
(for 10 dB S/N)
FM
(for 12 dB SINAD)
WFM
(for 12 dB SINAD)
1.8-—28* MHz
Less than 0.15 pV
28-29.999 MHz
Less than 0.15 pV
50-54 MHz
Less than 0.12 pV
144-148 MHz
Less than 0.11 pV
0.5-1.8 MHz
Less than 13 uV
1.8—28* MHz
Less than 2.0 pV
28— 29.999 MHz
Less than 2.0 pV
50-54 MHz
Less than 1.0 pV
144-148 MHz
Less than 1.0 pV
28-—29.999 MHz
Less than 0.5 pV
50-54 MHz
Less than 0.25 pV
-144-148 MHz
Less than 0.18 pV
76—108 MHz
Less than 10 pV
"Except 4—4.5 MHz, 8-9 MHz.
¢Squelch sensitivity (pre-amp ON) :
SSB
FM
e Selectivity*
SSB, CW, RTTY
AM/FM-N
FM
e Spurious and image
rejection ratio
e Audio output power
¢RIT variable range
¢PHONES connector
*EXT SP connector
Less than 5.6 uV at threshold
Less than 0.32 pV at threshold
More than 3.0 kHz/—6 dB
Less than 4.8 kHz/—60 dB
More than 8.0 kHz/—6 dB
Less than 30.0 kHz/—40 dB
More than 12.0 kHz/—6 dB
Less than 30.0 kHz/-60 dB
*Without optional filter and with
mid band selected.
: More than 70 dB (except IF through
on 50 MHz)
More than 60 dB (2 m FM mode)
: More than 2.0 W at 10% distortion
with an 8 Q load
: +9.99 kHz max.
> 3-conductor 3.5 (d) mm (14")/8 Q
: 2-conductor 3.5 (d) mm (%")/8 Q
