10 OPTIONAL INSTALLATIONS/SETTINGS

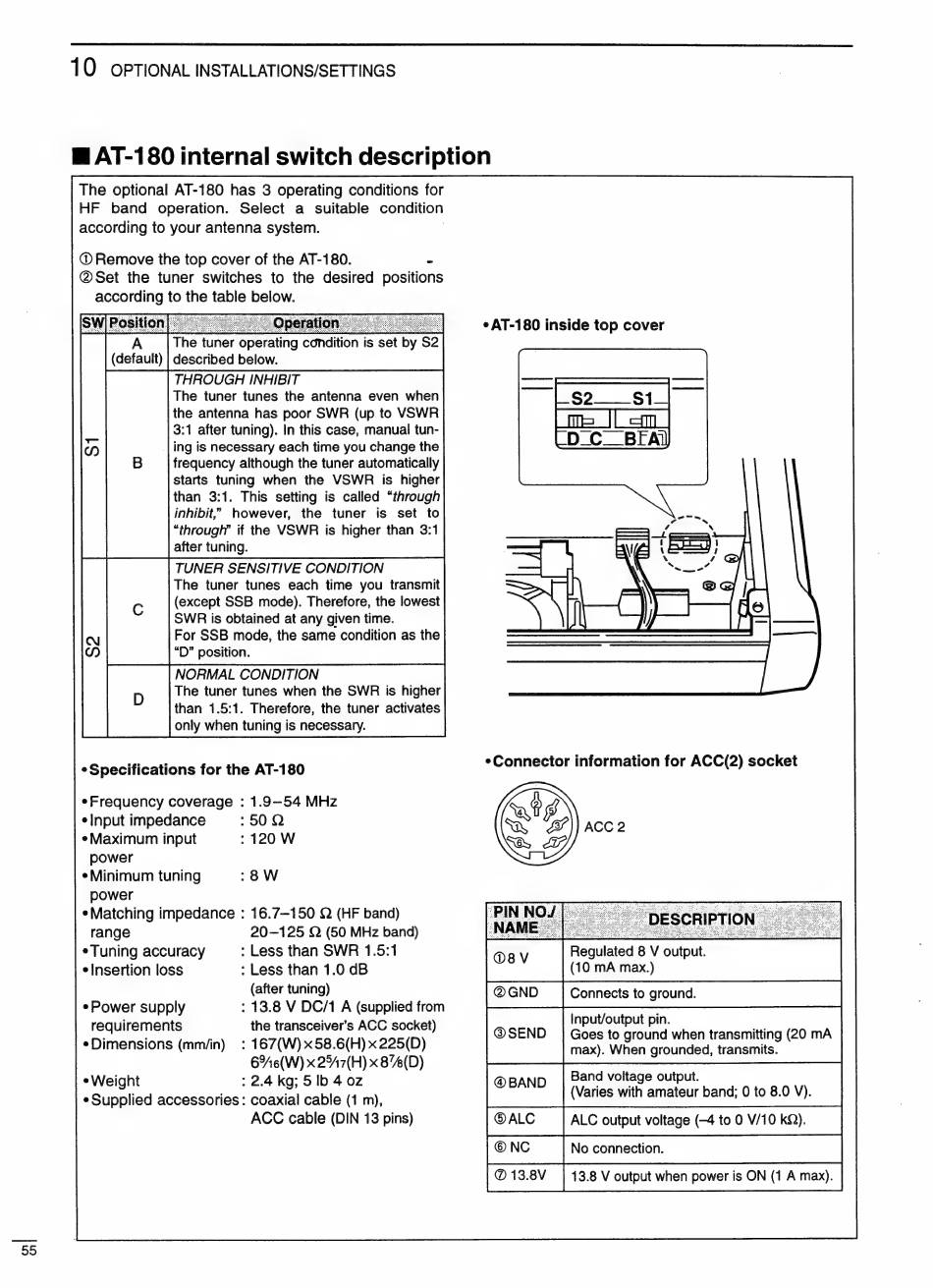

E AT-180 internal switch description
The optional AT-180 has 3 operating conditions for
HF band operation. Select a suitable condition
according to your antenna system. |
© Remove the top cover of the AT-180. x
@Set the tuner switches to the desired positions
according to the table below.
SW|P: tic OF :
A The tuner operating condition is set by S2
(default) | described below.
THROUGH INHIBIT
The tuner tunes the antenna even when
the antenna has poor SWR (up to VSWR
3:1 after tuning). In this case, manual tun-
N ing is necessary each time you change the
frequency although the tuner automatically
starts tuning when the VSWR is higher
than 3:1. This setting is called "through
inhibit," however, the tuner is set to
"through" if the VSWR is higher than 3:1
after tuning.
TUNER SENSITIVE CONDITION
The tuner tunes each time you transmit
(except SSB mode). Therefore, the lowest
SWR is obtained at any given time.
For SSB mode, the same condition as the
"D" position.
NORMAL CONDITION
The tuner tunes when the SWR is higher
than 1.5:1. Therefore, the tuner activates
only when tuning is necessary.
e Specifications for the AT-180
e Frequency coverage : 1.9-54 MHz
e Input impedance :50Q
e Maximum input : 120 W
power
¢Minimum tuning :8 W
power
e Matching impedance : 16.7—150 Q (HF band)
range 20-125 Q (50 MHz band)
e Tuning accuracy : Less than SWR 1.5:1
e Insertion loss : Less than 1.0 dB
(after tuning)
: 13.8 V DC/1 A (supplied from
the transceiver's ACC socket)
: 167(W) x 58.6(H) x 225(D)
6%6(W) x 2547(H) x 8%4(D)
eWeight : 2.4 kg; 5 Ib 4 oz
e Supplied accessories : coaxial cable (1 m),
ACC cable (DIN 13 pins)
e Power supply
requirements
e Dimensions (mmi/in)
e AT-180 inside top cover
eConnector information for ACC(2) socket
PINN
Regulated 8 V output.
(10 mA max.)
@GND Connects to ground.
@®SEND
Input/output pin.
Goes to ground when transmitting (20 mA
max). When grounded, transmits.
