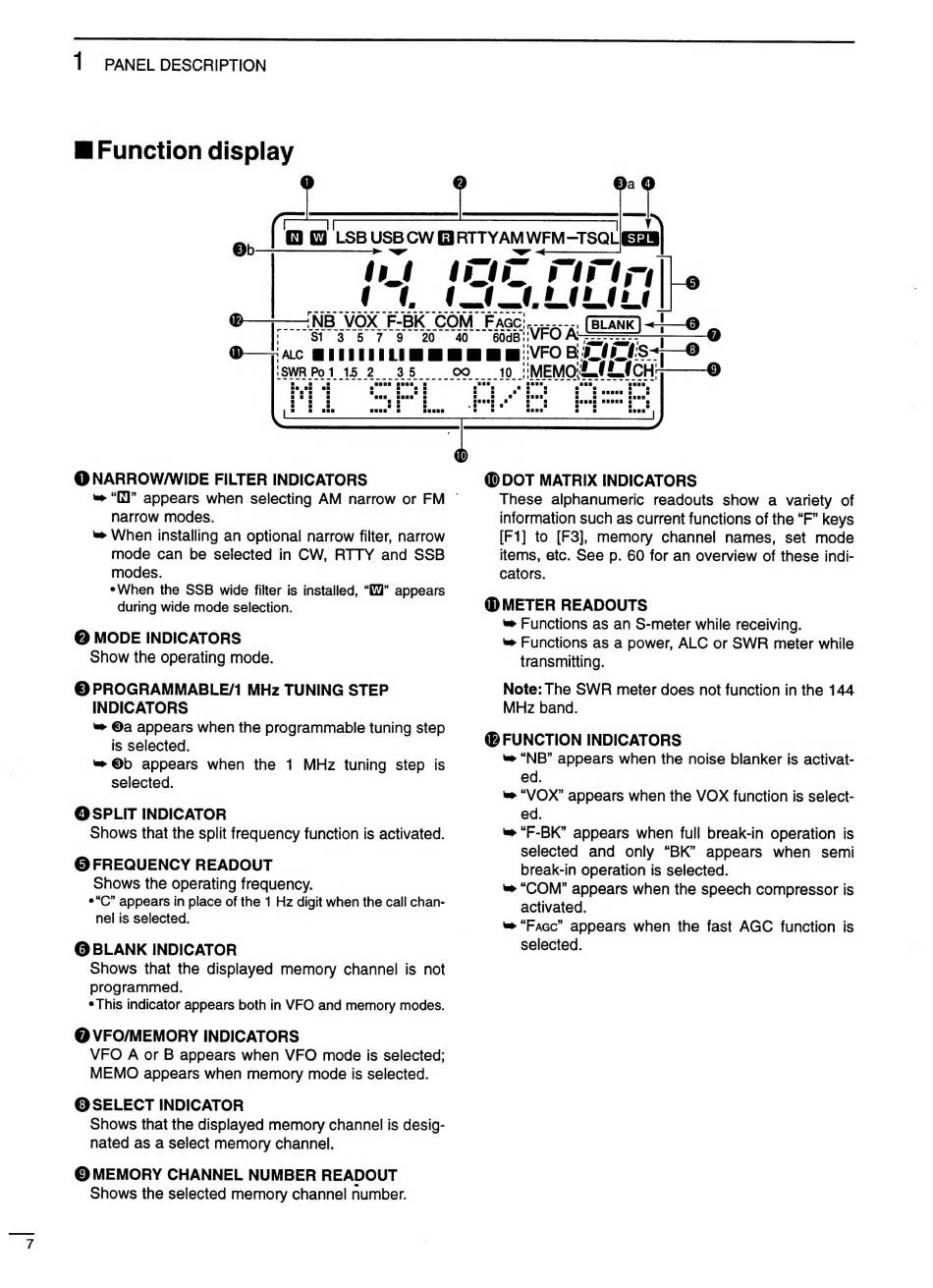

1 PANEL DESCRIPTION
E Function display
@b
'ot
1".
Pem a ee we l l i a a a i ew ee ee ee ewe
a
0 & LSB USB: CW GRTTYAM MWFM -TSQL
WE FTI - I
(i LIL (ne
ofa VOX F-BK COM Facci- (BLANK)<!_@
"Si 3 5 7 9 20
@ NARROW/WIDE FILTER INDICATORS
= "0" appears when selecting AM narrow or FM `
narrow modes.
= When installing an optional narrow filter, narrow
mode can be selected in CW, RTTY and SSB
modes.
«When the SSB wide filter is installed, "M" appears
during wide mode selection.
@ MODE INDICATORS
Show the operating mode.
© PROGRAMMABLE/1 MHz TUNING STEP
INDICATORS
= ©a appears when the programmable tuning step
is selected.
= ©b appears when the 1 MHz tuning step is
selected.
© SPLIT INDICATOR
Shows that the split frequency function is activated.
@ FREQUENCY READOUT
Shows the operating frequency.
e"C" appears in place of the 1 Hz digit when the call chan-
nel is selected.
@ BLANK INDICATOR
Shows that the displayed memory channel is not
programmed.
e This indicator appears both in VFO and memory modes.
@ VFO/MEMORY INDICATORS
VFO A or B appears when VFO mode is selected;
MEMO appears when memory mode is selected.
© SELECT INDICATOR
Shows that the displayed memory channel is desig-
nated as a select memory channel.
© MEMORY CHANNEL NUMBER READOUT
Shows the selected memory channel number.
10 MEMO IHi —@
@ DOT MATRIX INDICATORS
These alphanumeric readouts show a variety of
information such as current functions of the "F" keys
[F1] to [F3], memory channel names, set mode
items, etc. See p. 60 for an overview of these indi-
cators.
@ METER READOUTS
= Functions as an S-meter while receiving.
= Functions as a power, ALC or SWR meter while
transmitting.
Note: The SWR meter does not function in the 144
MHz band.
@ FUNCTION INDICATORS
= "NB" appears when the noise blanker is activat-
ed.
= "VOX" appears when the VOX function is select-
ed.
= "F-BK" appears when full break-in operation is
selected and only "BK" appears when semi
break-in operation is selected.
= "COM" appears when the speech compressor is
activated.
= "Facc" appears when the fast AGC function is
selected.
