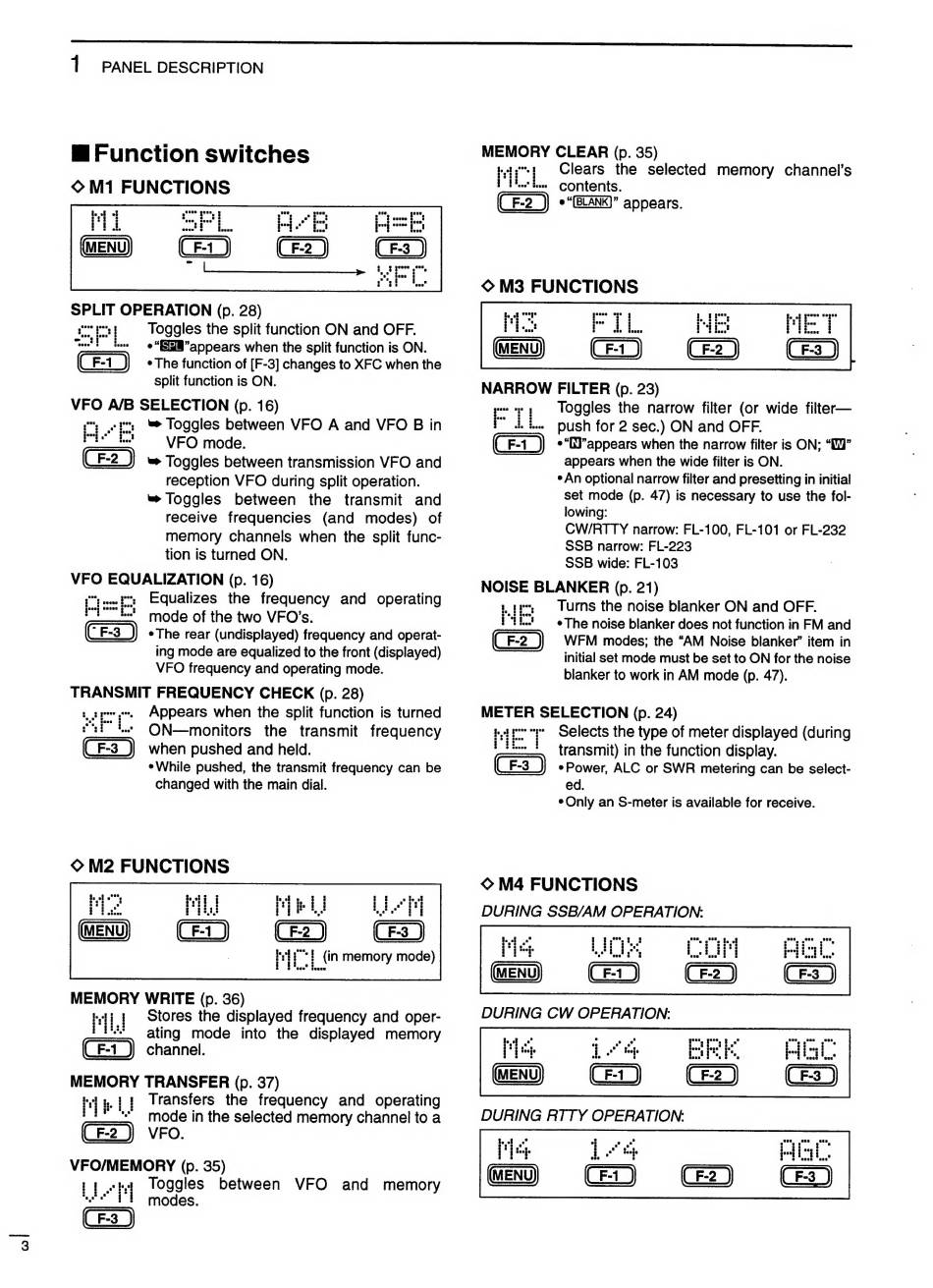

Icom IC-706 MKII Instruction Manual page 6

wl
{ PANEL DESCRIPTION
E Function switches
© M1 FUNCTIONS
SPLIT OPERATION (p. 28)
aer Toggles the split function ON and OFF.
"ent tie o "RB appears when the split function is ON.
e The function of [F-3] changes to XFC when the
split function is ON.
VFO A/B SELECTION (p. 16)
r «tt: œ Toggles between VFO A and VFO B in
bin Et VFO mode.
= Toggles between transmission VFO and
reception VFO during split operation.
œ Toggles between the transmit and
receive frequencies (and modes) of
memory channels when the split func-
tion is turned ON.
VFO EQUALIZATION (p. 16)
ppe e Equalizes the frequency and operating
mi" mode of the two VFO's.
Πe The rear (undisplayed) frequency and operat-
ing mode are equalized to the front (displayed)
VFO frequency and operating mode.
TRANSMIT FREQUENCY CHECK (p. 28)
Lape Appears when the split function is turned
vit he ON—monitors the transmit frequency
when pushed and held.
While pushed, the transmit frequency can be
changed with the main dial.
© M2 FUNCTIONS
MEMORY WRITE (p. 36)
tii | Stores the displayed frequency and oper-
litt ating mode into the displayed memory
channel.
MEMORY TRANSFER (p. 37)
hta, d p Transfers
the frequency
and operating
_ i 'mode in the selected memory channel to a
G2) vro.
VFO/MEMORY (p. 35)
11 «tt Toggles between VFO and memory
ae modes.
MEMORY CLEAR (p. 35)
tet
Clears the selected
memory channel's
«ius Contents.
(CF-2_)) "BLANK" appears.
© M3 FUNCTIONS
NARROW FILTER (p. 23)
rx Toggles the narrow filter (or wide filter—
4. push for 2 sec.) ON and OFF.
e"{"appears when the narrow filter is ON; "i"
appears when the wide filter is ON.
e An optional narrow filter and presetting in initial
set mode (p. 47) is necessary to use the fol-
lowing:
CW/RTTY narrow: FL-100, FL-101 or FL-232
SSB narrow: FL-223
SSB wide: FL-103
NOISE BLANKER (p. 21)
ir; Turns the noise blanker ON and OFF.
fees e The noise blanker does not function in FM and
WFM modes; the "AM Noise blanker' item in
initial set mode must be set to ON for the noise
blanker to work in AM mode (p. 47).
METER SELECTION (p. 24)
heuer Selects the type of meter displayed (during
Pin | i i ; :
: transmit) in the function display.
Power, ALC or SWR metering can be select-
ed.
Only an S-meter is available for receive.
© M4 FUNCTIONS
DURING SSB/AM OPERATION:
DURING RTTY OPERATION:
