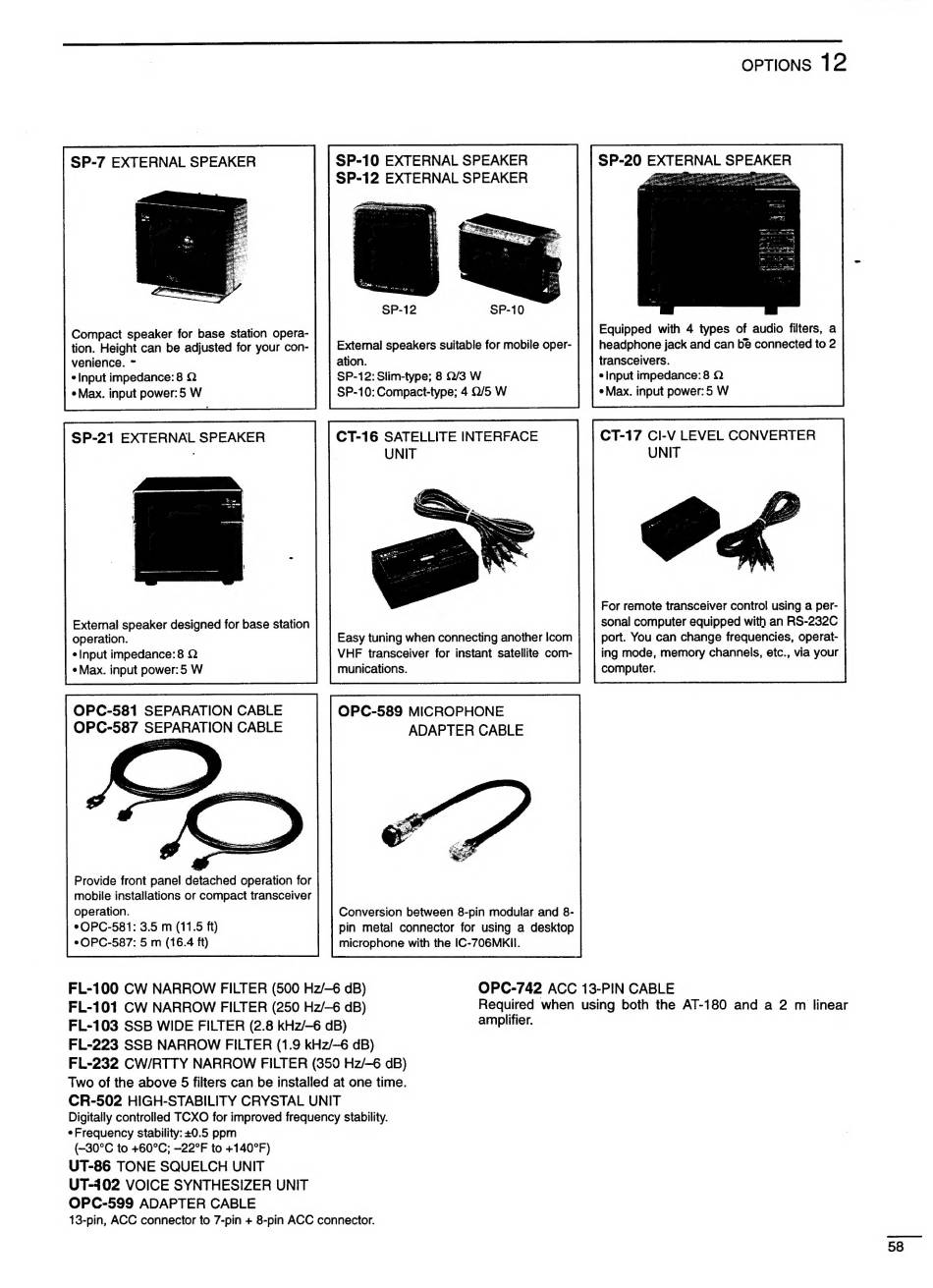

SP-7 EXTERNAL SPEAKER
Compact speaker for base station opera-
tion. Height can be adjusted for your con-
venience. ~
¢ Input impedance: 8 Q
e Max. input power: 5 W
External speaker designed for base station
operation.
e Input impedance: 8 Q
e Max. input power: 5 W
OPC-581 SEPARATION CABLE
OPC-587 SEPARATION CABLE
Provide front panel detached operation for
mobile installations or compact transceiver
operation.
*OPC-581: 3.5 m (11.5 ft)
*OPC-587: 5 m (16.4 ft)
FL-100 CW NARROW FILTER (500 Hz/—6 dB)
FL-101 CW NARROW FILTER (250 Hz/—6 dB)
FL-103 SSB WIDE FILTER (2.8 kHz/-6 dB)
SP-10 EXTERNAL SPEAKER
SP-12 EXTERNAL SPEAKER
SP-12 SP-10
External speakers suitable for mobile oper-
ation.
SP-12: Slim-type; 8 2/3 W
SP-10: Compact-type; 4 9/5 W
CT-16 SATELLITE INTERFACE
UNIT
Easy tuning when connecting another Icom
VHF transceiver for instant satellite com-
munications.
OPC-589 MICROPHONE
ADAPTER CABLE
Conversion between 8-pin modular and 8-
pin metal connector for using a desktop
microphone with the IC-706MKII.
amplifier.
FL-223 SSB NARROW FILTER (1.9 kHz/—6 dB)
FL-232 CW/RTTY NARROW FILTER (359 Hz/-6 dB)
Two of the above 5 filters can be installed at one time.
CR-502 HIGH-STABILITY CRYSTAL UNIT
Digitally controlled TCXO for improved frequency stability.
e Frequency stability: +0.5 ppm
(-30°C to +60°C; —22°F to +140°F)
UT-86 TONE SQUELCH UNIT
UT-402 VOICE SYNTHESIZER UNIT
OPC-599 ADAPTER CABLE
13-pin, ACC connector to 7-pin + 8-pin ACC connector.
OPTIONS 12
SP-20 EXTERNAL SPEAKER
Equipped with 4 types of audio filters, a
headphone jack and can be connected to 2
transceivers.
e input impedance: 8 Q
e Max. input power: 5 W
CT-17 Cil-V LEVEL CONVERTER
UNIT
For remote transceiver control using a per-
sonal computer equipped with an RS-232C
port. You can change frequencies, operat-
ing mode, memory channels, etc., via your
computer.
OPC-742 ACC 13-PIN CABLE
Required when using both the AT-180 and a 2 m linear
