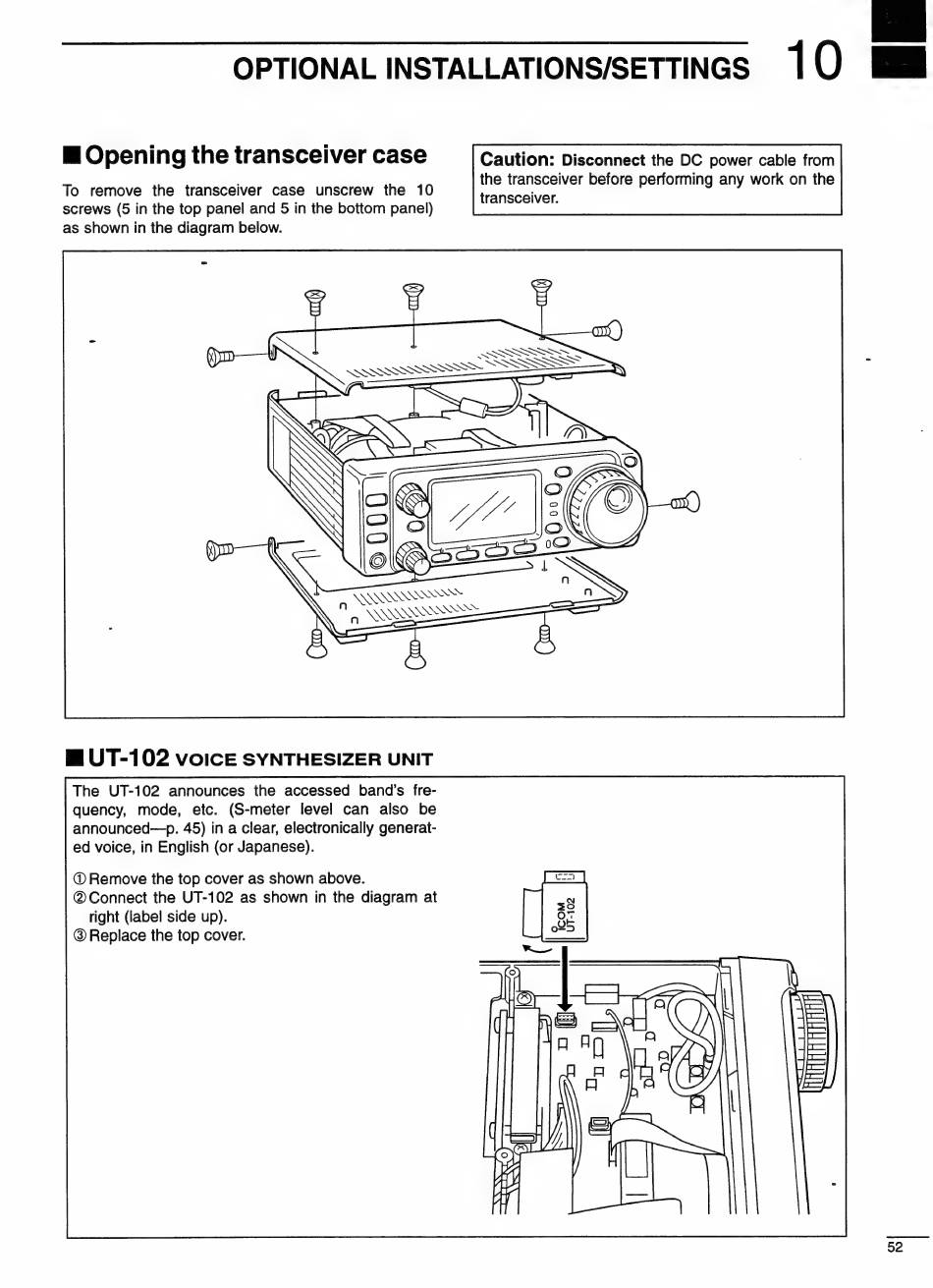

OPTIONAL INSTALLATIONS/SETTINGS
10
_
E Opening the transceiver case
Caution: Disconnect the DC power cable from
the transceiver before performing any work on the
To remove
the transceiver case
unscrew
the 10
screws (5 in the top panel and 5 in the bottom panel)
as shown in the diagram below.
transceiver.
E UT-102 voICcE SYNTHESIZER UNIT
The UT-102 announces
the accessed
band's fre-
quency,
mode,
etc. (S-meter
level can
also be
announced—p. 45) in a clear, electronically generat-
ed voice, in English (or Japanese).
@ Remove the top cover as shown above.
@Connect the UT-102 as shown in the diagram at
right (label side up).
@ Replace the top cover.
52
