E 12

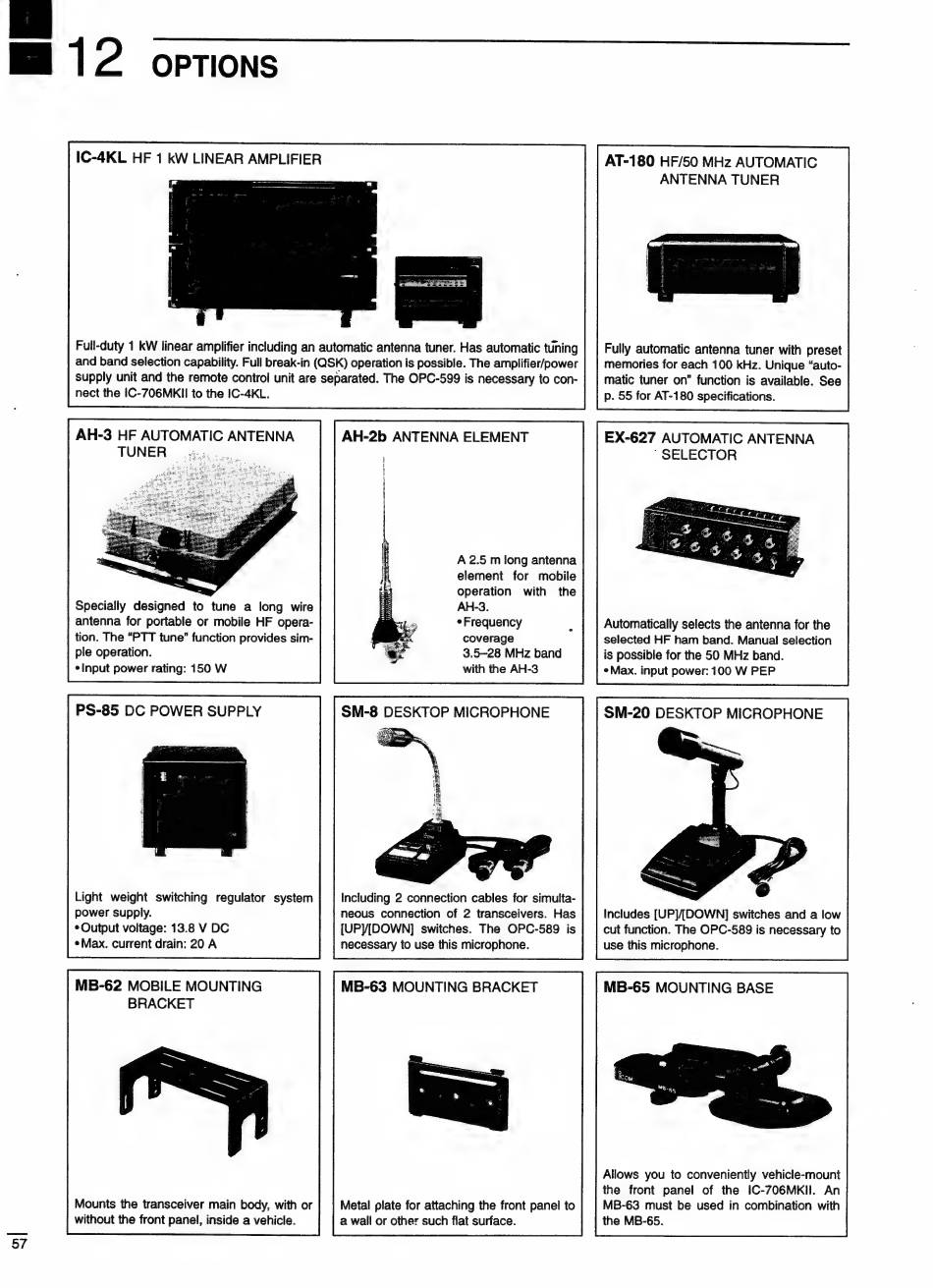

OPTIONS
IC-4KL HF 1 kW LINEAR AMPLIFIER
Full-duty 1 kW linear amplifier including an automatic antenna tuner. Has automatic tuning
and band selection capability. Full break-in (QSK) operation is possible. The amplifier/power
supply unit and the remote control unit are separated. The OPC-599 is necessary to con-
nect the IC-706MKIl to the IC-4KL.
AH-3 HF AUTOMATIC ANTENNA
TUNER
Specially designed to tune a long wire
antenna for portable or mobile HF opera-
tion. The "PTT tune" function provides sim-
ple operation.
e Input power rating: 150 W
PS-85 DC POWER SUPPLY
Light weight switching regulator system
power supply.
e Output voltage: 13.8 V DC
e Max. current drain: 20 A
MB-62 MOBILE MOUNTING
BRACKET
Mounts the transceiver main body, with or
without the front panel, inside a vehicle.
AH-2b ANTENNA ELEMENT
A 2.5 m long antenna
element for mobile
operation with the
AH-3.
e Frequency
coverage
3.5-28 MHz band
with the AH-3
SM-8 DESKTOP MICROPHONE
&
Including 2 connection cables for simulta-
neous connection of 2 transceivers. Has
[UP/[DOWN] switches. The OPC-589 is
necessary to use this microphone.
MB-63 MOUNTING BRACKET
Metal plate for attaching the front panel to
a wall or other such flat surface.
AT-180 HF/50 MHz AUTOMATIC
ANTENNA TUNER
Fully automatic antenna tuner with preset
memories for each 100 kHz. Unique "auto-
matic tuner on" function is available. See
p. 55 for AT-180 specifications.
EX-627 AUTOMATIC ANTENNA
` SELECTOR
Automatically selects the antenna for the
selected HF ham band. Manual selection
is possible for the 50 MHz band.
e Max. input power: 100 W PEP
SM-20 DESKTOP MICROPHONE
Includes [UPN{DOWN] switches and a low
cut function. The OPC-589 is necessary to
use this microphone.
MB-65 MOUNTING BASE
Allows you to conveniently vehicle-mount
the front panel of the IC-706MKII. An
MB-63 must be used in combination with
the MB-65.
