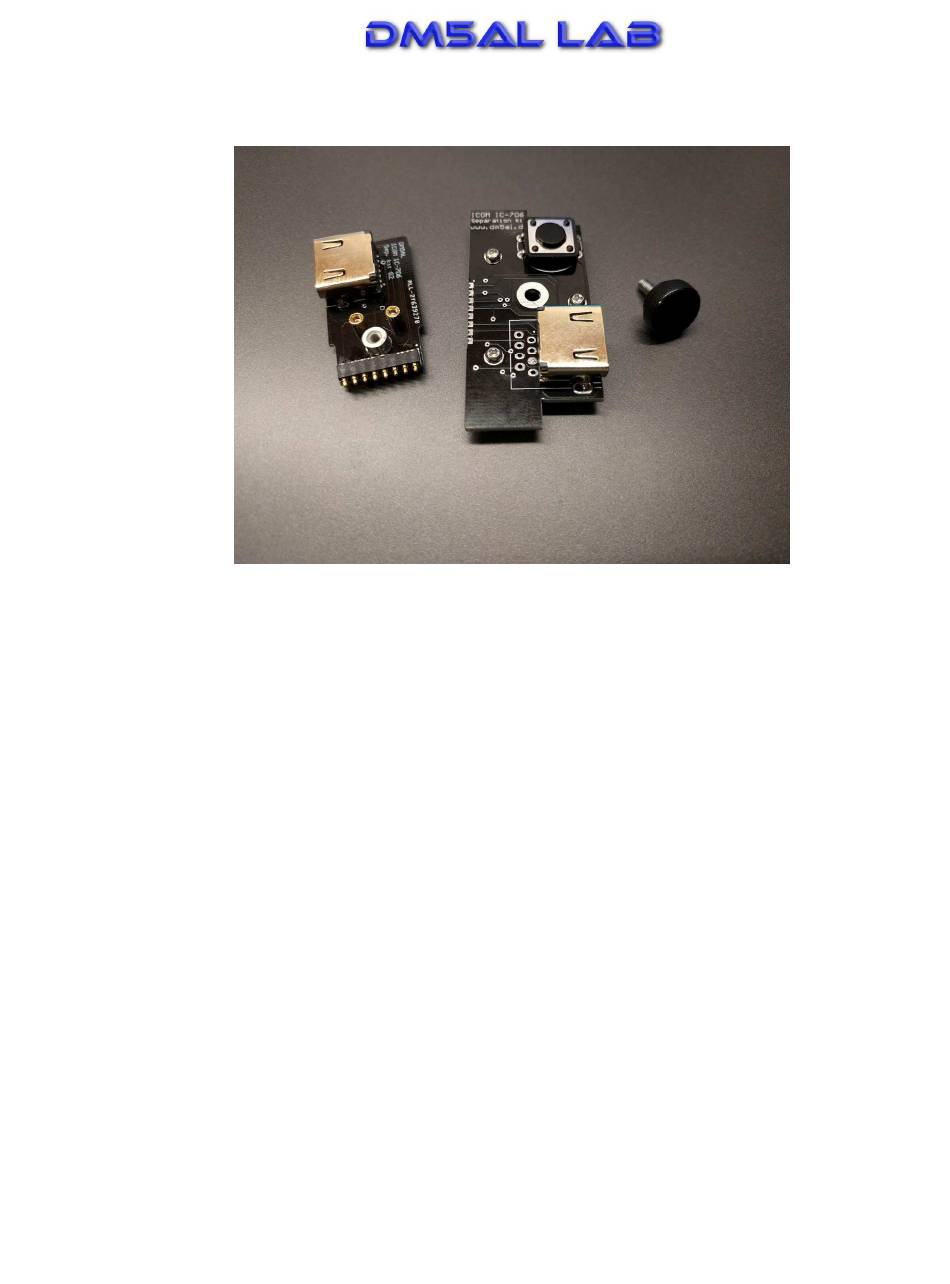

ICOM IC-706-HDMI Separation kit
Before you begin, please read this manual carefully!
1. OVERVIEW
This separation kits works with following transceivers:
-
ICOM IC-703
-
ICOM IC-703 Plus
-
IC-706
-
IC-706MkII
-
IC-706MkIIG
Features:
-
HDMI cable connectors;
-
Additional Power button on a base unit adapter.
The separation kit uses a normal HDMI cable (not included) for connection between display and
base units. Quality of this cable affects overall transmit quality: with some cheap HDMI cables
weak digital noise may exist during transmission.
2. INSTALLATION
Attention: remove power before you install the separation kit!
Picture below show how to install the separation kit correctly:
Advertisement
Related Manuals for Icom IC-706
Summary of Contents for Icom IC-706
- Page 1 ICOM IC-706-HDMI Separation kit Before you begin, please read this manual carefully! 1. OVERVIEW This separation kits works with following transceivers: ICOM IC-703 ICOM IC-703 Plus IC-706 IC-706MkII IC-706MkIIG Features: HDMI cable connectors; Additional Power button on a base unit adapter.
- Page 2 1. Position base unit adapter as it shown on a picture below. Pogo pins must be positioned strictly to half holes on the edge of the base unit adapter! 2. Push the base unit adapter and fix it with a thumb screw:...
- Page 3 4. Check that pogo pins points exactly to the edge connector of the base unit adapter: 5. Insert a head unit adapter until it is fixed with original locker:...
- Page 4 6. Insert HDMI cable and power the device on. 3. HDMI CONNECTOR PINOUT 4. SUPPORT Web: www.dm5al.de email: support@dm5al.de Whatsapp: +4915256982577...
