Icom IC-706 MKII Instruction Manual page 57

Hide thumbs Also See for IC-706 MKII:

Advertisement

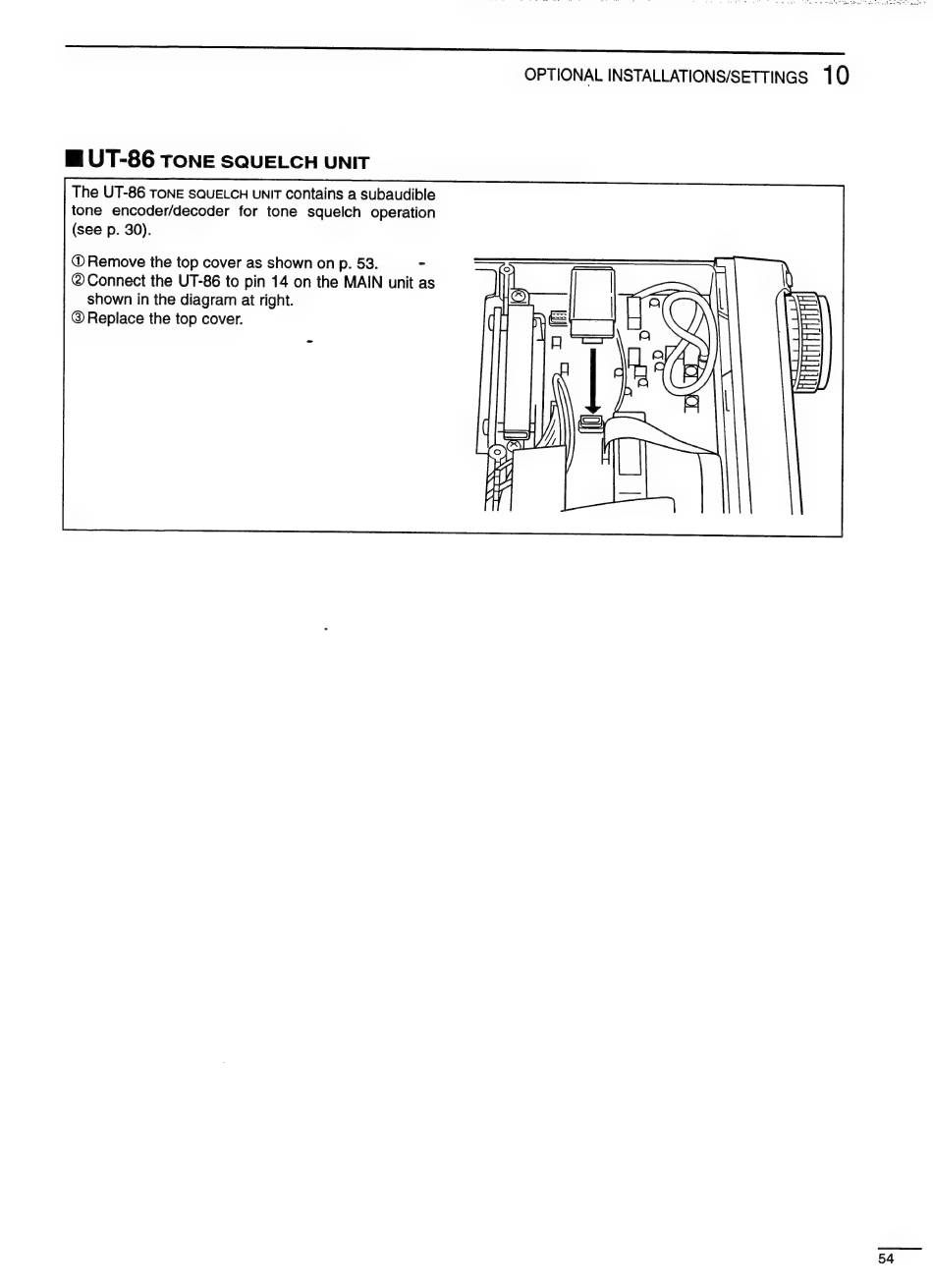

E UT-86 TONE SQUELCH UNIT
@ Remove the top cover as shown on p. 53.
=
@ Connect the UT-86 to pin 14 on the MAIN unit as
shown in the diagram at right.
@ Replace the top cover.
54
