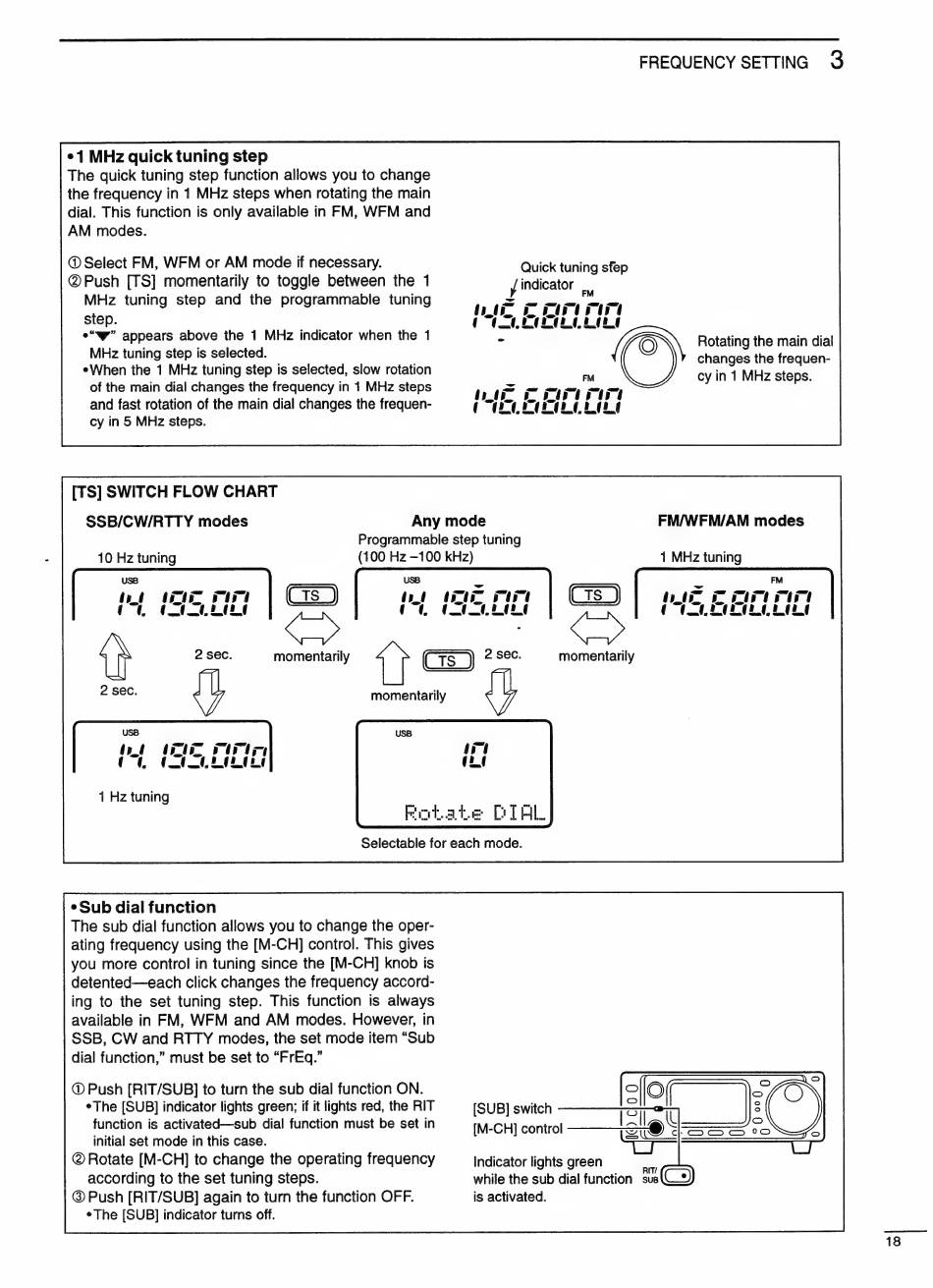

e 1 MHz quick tuning step
The quick tuning step function allows you to change
the frequency in 1 MHz steps when rotating the main
dial. This function is only available in FM, WFM and
AM modes.
© Select FM, WFM or AM mode if necessary.
@ Push [TS] momentarily to toggle between the 1
MHz tuning step and the programmable tuning
step.
e"w" appears above the 1 MHz indicator when the 1
MHz tuning step is selected.
eWhen the 1 MHz tuning step is selected, slow rotation
of the main dial changes the frequency in 1 MHz steps
and fast rotation of the main dial changes the frequen-
cy in 5 MHz steps.
[TS] SWITCH FLOW CHART
SSB/CW/RTTY modes
Any mode
FREQUENCY SETTING 3
Quick tuning sfep
y indicator y
Rotating the main dial
changes the frequen-
cy in 1 MHz steps.
FM/WFM/AM modes
Programmable step tuning
10 Hz tuning
1 Hz tuning
(100 Hz -100 kHz)
1 MHz tuning
kotate DIAL
Selectable for each mode.
e Sub dial function
The sub dial function allows you to change the oper-
ating frequency using the [M-CH] control. This gives
you more control in tuning since the [M-CH] knob is
detented—each click changes the frequency accord-
ing to the set tuning step. This function is always
available in FM, WFM and AM modes. However, in
SSB, CW and RTTY modes, the set mode item "Sub
dial function," must be set to "FrEq."
© Push [RIT/SUB] to turn the sub dial function ON.
e The [SUB] indicator lights green; if it lights red, the RIT
function is activated—sub dial function must be set in
initial set mode in this case.
@ Rotate [M-CH] to change the operating frequency
according to the set tuning steps.
@ Push [RIT/SUB] again to turn the function OFF.
e The [SUB] indicator turns off.
[SUB] switch
[M-CH] control
[>II
elay]
Indicator lights green
while the sub dial function sus (C)
is activated.
