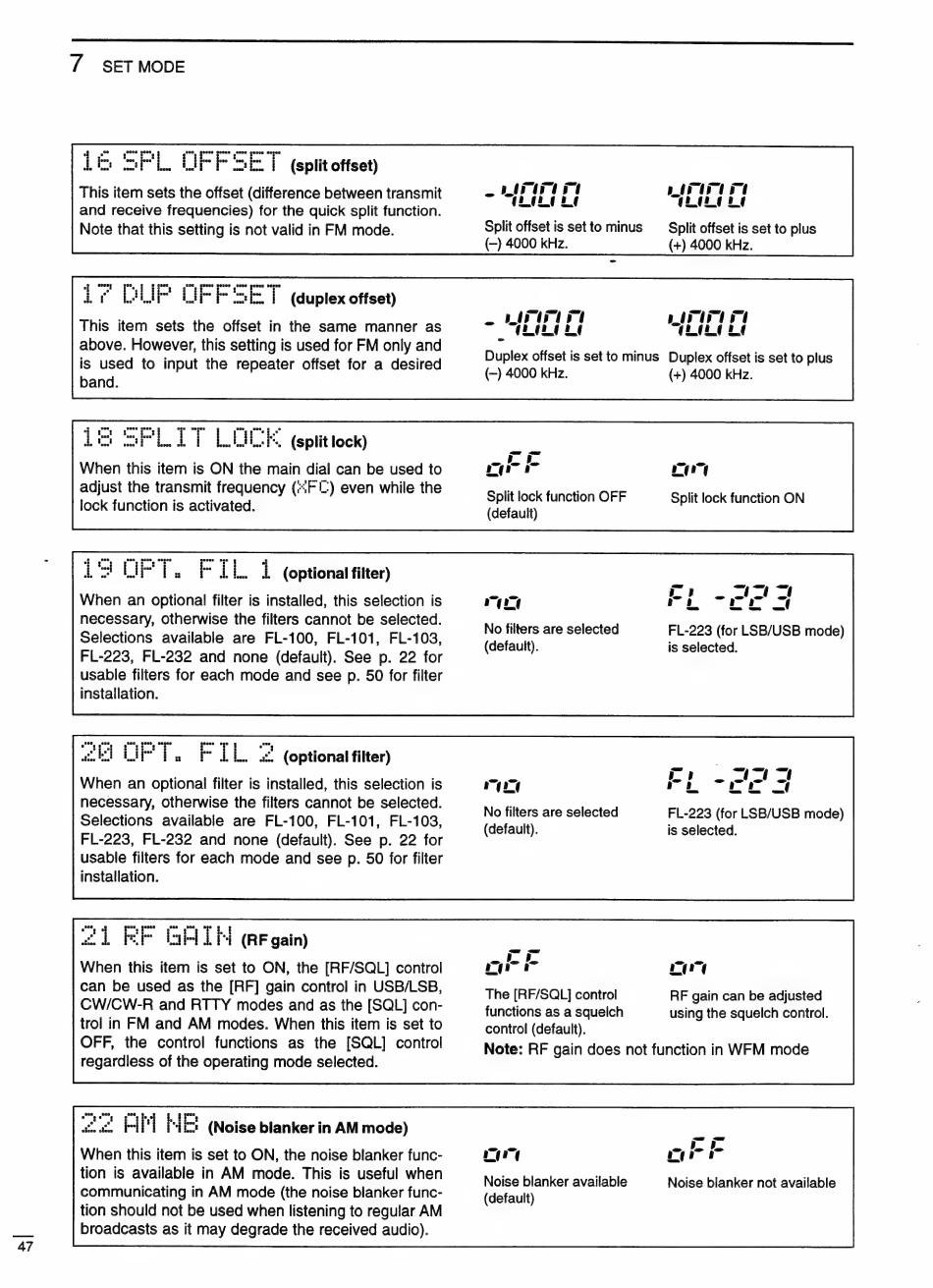

7 SET MODE
This item sets the offset (difference between transmit
and receive frequencies) for the quick split function.
Note that this setting is not valid in FM mode.
fo ae ae - "r
Aro RALI LADT oin $ (duplex offset)
This item sets the offset in the same manner as
above. However, this setting is used for FM only and
is used to input the repeater offset for a desired
When this item is ON the main dial can be used to
adjust the transmit frequency (FC) even while the
lock function is activated.
re | LL (optional filter)
When an optional filter is installed, this selection is
necessary, otherwise the filters cannot be selected.
Selections available are FL-100, FL-101, FL-103,
FL-223, FL-232 and none (default). See p. 22 for
usable filters for each mode and see p. 50 for filter
installation.
F I L. a (optional filter)
When an optional filter is installed, this selection is
necessary, otherwise the filters cannot be selected.
Selections available are FL-100, FL-101, FL-103,
FL-223, FL-232 and none (default). See p. 22 for
usable filters for each mode and see p. 50 for filter
installation.
4 Ps om oa
od fir kah iii (RF gain)
When this item is set to ON, the [RF/SQL] control
can be used as the [RF] gain control in USB/LSB,
CW/CW-R and RTTY modes and as the [SQL] con-
trol in FM and AM modes. When this item is set to
OFF, the control functions as the [SQL] control
regardless of the operating mode selected.
wae HTT THE (Noise blanker in AM mode)
When this item is set to ON, the noise blanker func-
tion is available in AM mode. This is useful when
communicating in AM mode (the noise blanker func-
tion should not be used when listening to regular AM
broadcasts as it may degrade the received audio).
Split offset is set to minus
(-) 4000 kHz.
Duplex offset is set to minus
(—) 4000 kHz.
mr
Split lock function OFF
(default)
a Fa]
No filters are selected
(default).
a
No filters are selected
(default).
-LI
w a)
The [RF/SQL] control
functions as a squelch
control (default).
Split offset is set to plus
(+) 4000 kHz.
Duplex offset is set to plus
(+) 4000 kHz.
ere
Split lock function ON
9
,
L
FL-223 (for LSB/USB mode)
is selected.
pa
L =l
PE EU
72
FL-223 (for LSB/USB mode)
is selected.
a Ta |
RF gain can be adjusted
using the squelch control.
Note: RF gain does not function in WFM mode
a Tt
Noise blanker available
(default)
Noise blanker not available
