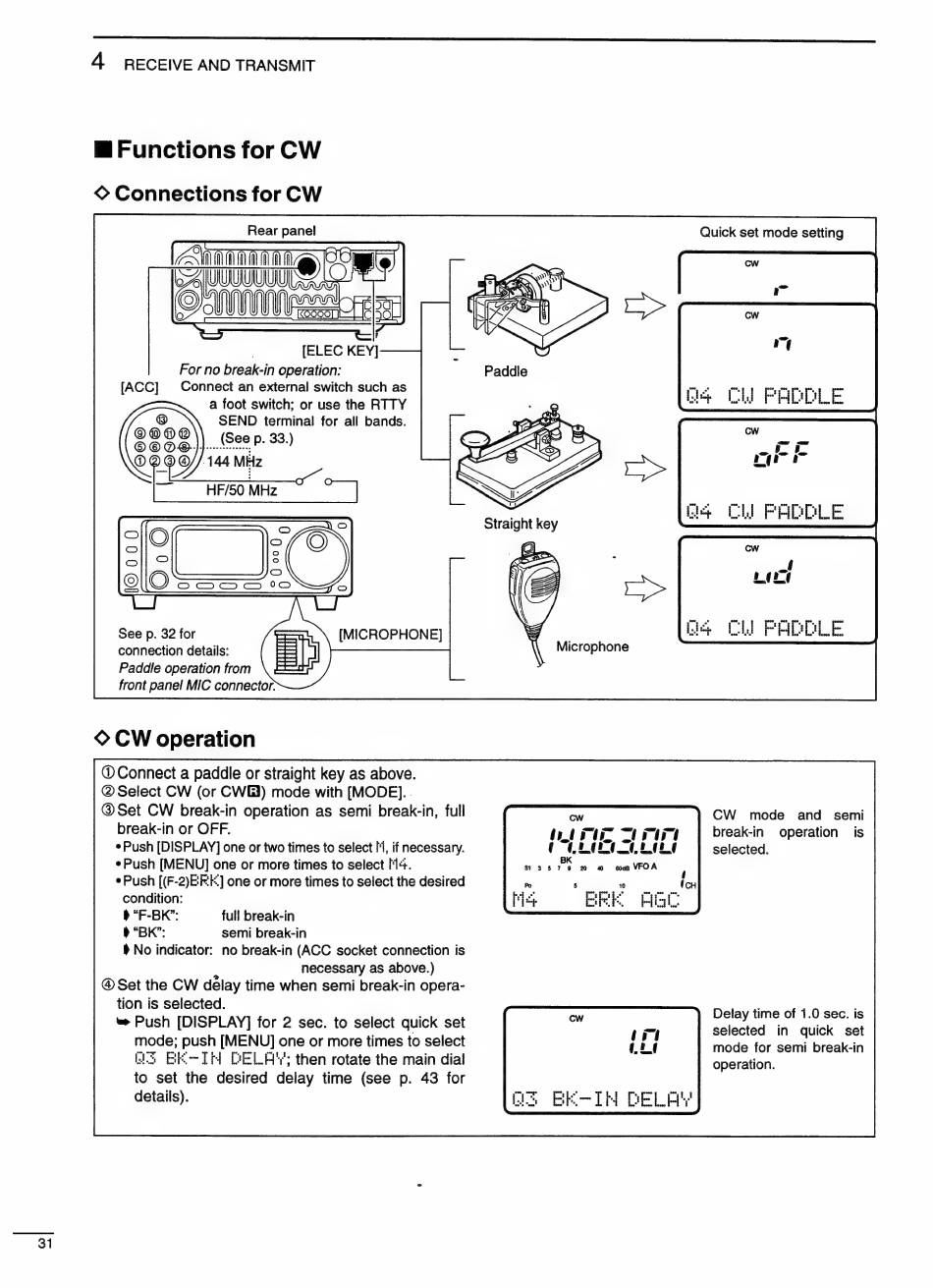

Icom IC-706 MKII Instruction Manual page 34

31
4 RECEIVE AND TRANSMIT
E Functions for CW
© Connections for CW
Rear panel
A\imammm ma
[ELEC KEY
For no break-in operation:
[ACC] Connect an external switch such as
a foot switch; or use the RTTY
SEND terminal for all bands.
(See p. 33.)
—~—HF/50 MHz
L-
See p. 32 for [MICROPHONE]
connection details: E
Paddle operation from
front panel MIC connector.
© CW operation
© Connect a paddle or straight key as above.
@ Select CW (or CWE) mode with [MODE]. .
®Set CW break-in operation as semi break-in, full
break-in or OFF.
e Push [DISPLAY] one or two times to select I'l, if necessary.
e Push [MENU] one or more times to select t14.
e Push [(F-2)EF:E] one or more times to select the desired
condition:
$ "F-BK': full break-in
» "BK": semi break-in
$ No indicator: no break-in (ACC socket connection is
necessary as above.)
@ Set the CW delay time when semi break-in opera-
tion is selected.
w Push [DISPLAY] for 2 sec. to select quick set
mode; push [MENU] one or more times to select
ie BR -ITM DELA; then rotate the main dial
to set the desired delay time (see p. 43 for
details).
Quick set mode setting
be PADDLE
Pa
iS ICL) FADDLE
-l
LAILI
a CH FADDLE
\ Microphone
CW mode and semi
break-in operation is
selected.
Delay time of 1.0 sec. is
I selected in quick set
LLI mode for semi break-in
operation.
WA BEIN DELAY
