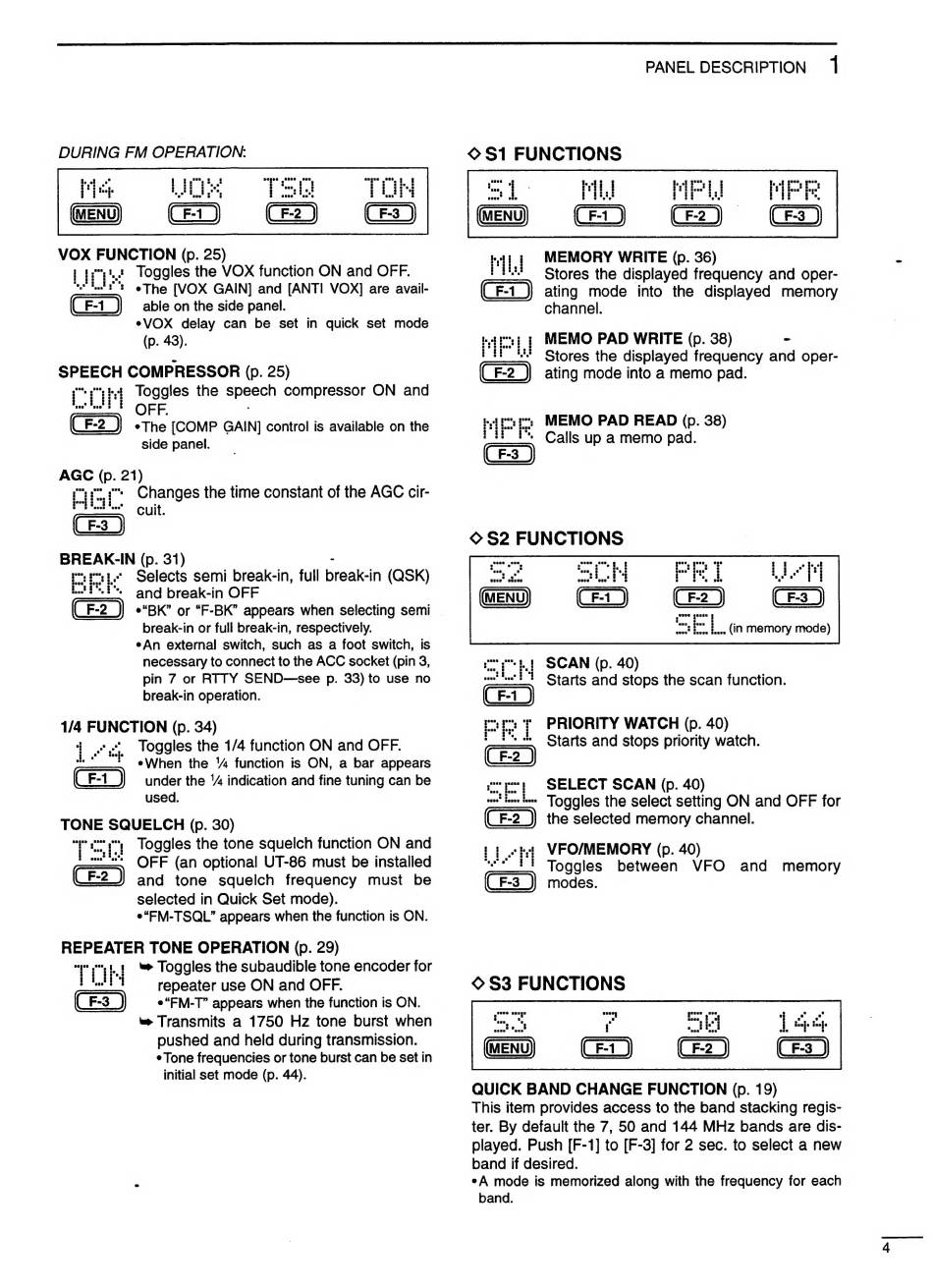

Icom IC-706 MKII Instruction Manual page 7

DURING FM OPERATION:
VOX FUNCTION (p. 25)
i K "#1 Toggles the VOX function ON and OFF.
Lali": eThe [VOX GAIN] and [ANTI VOX] are avail-
able on the side panel.
eVOX delay can be set in quick set mode
(p. 43).
SPEECH COMPRESSOR (p. 25)
ranse Toggles the epee compressor ON and
wl §
OFF.
eThe [COMP GAIN] control is available on the
side panel.
AGC (p. 21)
mime Changes the time constant of the AGC cir-
iiie cuit.
BREAK-IN (p. 31)
pert Selects semi break-in, full break-in (QSK)
and break-in OFF
e"BK" or "F-BK" appears when selecting semi
break-in or full break-in, respectively.
eAn external switch, such as a foot switch, is
necessary to connect to the ACC socket (pin 3,
pin 7 or RTTY SEND—see p. 33) to use no
break-in operation.
1/4 FUNCTION (p. 34)
4. Toggles the 1/4 function ON and OFF.
"When the 1⁄4 function is ON, a bar appears
under the % indication and fine tuning can be
used.
TONE SQUELCH (p. 30)
T ry Toggles the tone squelch function ON and
= "" OFF (an optional UT-86 must be installed
and tone squelch frequency must be
selected in Quick Set mode).
e"FM-TSQL' appears when the function is ON.
aici TONE OPERATION (p. 29)
TIN : œ Toggles the subaudible tone encoder for
ESIk repeater use ON and OFF.
e"FM-T" appears when the function is ON.
= Transmits a 1750 Hz tone burst when
pushed and held during transmission.
e Tone frequencies or tone burst can be set in
initial set mode (p. 44).
PANEL DESCRIPTION 1
© S1 FUNCTIONS
rit i- MEMORY WRITE (p. 36)
Stores the displayed frequency and oper-
ating mode into the displayed memory
channel.
marni | MEMO PAD WRITE (p. 38) -
wt Stores the displayed frequency and oper-
ating mode into a memo pad.
bl fe p MEMO PAD READ (p. 38)
Calls up a memo pad.
© S2 FUNCTIONS
ee alae E SCAN (p. 40)
seen! lave Starts and stops the scan function.
r: 'tf PRIORITY WATCH (p. 40)
Starts and stops priority watch.
vert SELECT SCAN (p. 40)
see eos deens Toggles the select setting ON and OFF for
the selected memory channel.
VFO/MEMORY (p. 40)
Toggles between VFO and memory
modes.
a
AS
© S3 FUNCTIONS
QUICK BAND CHANGE FUNCTION (p. 19)
This item provides access to the band stacking regis-
ter. By default the 7, 50 and 144 MHz bands are dis-
played. Push [F-1] to [F-3] for 2 sec. to select a new
band if desired.
eA mode is memorized along with the frequency for each
band.
