Icom IC-706 MKII Instruction Manual page 16

13

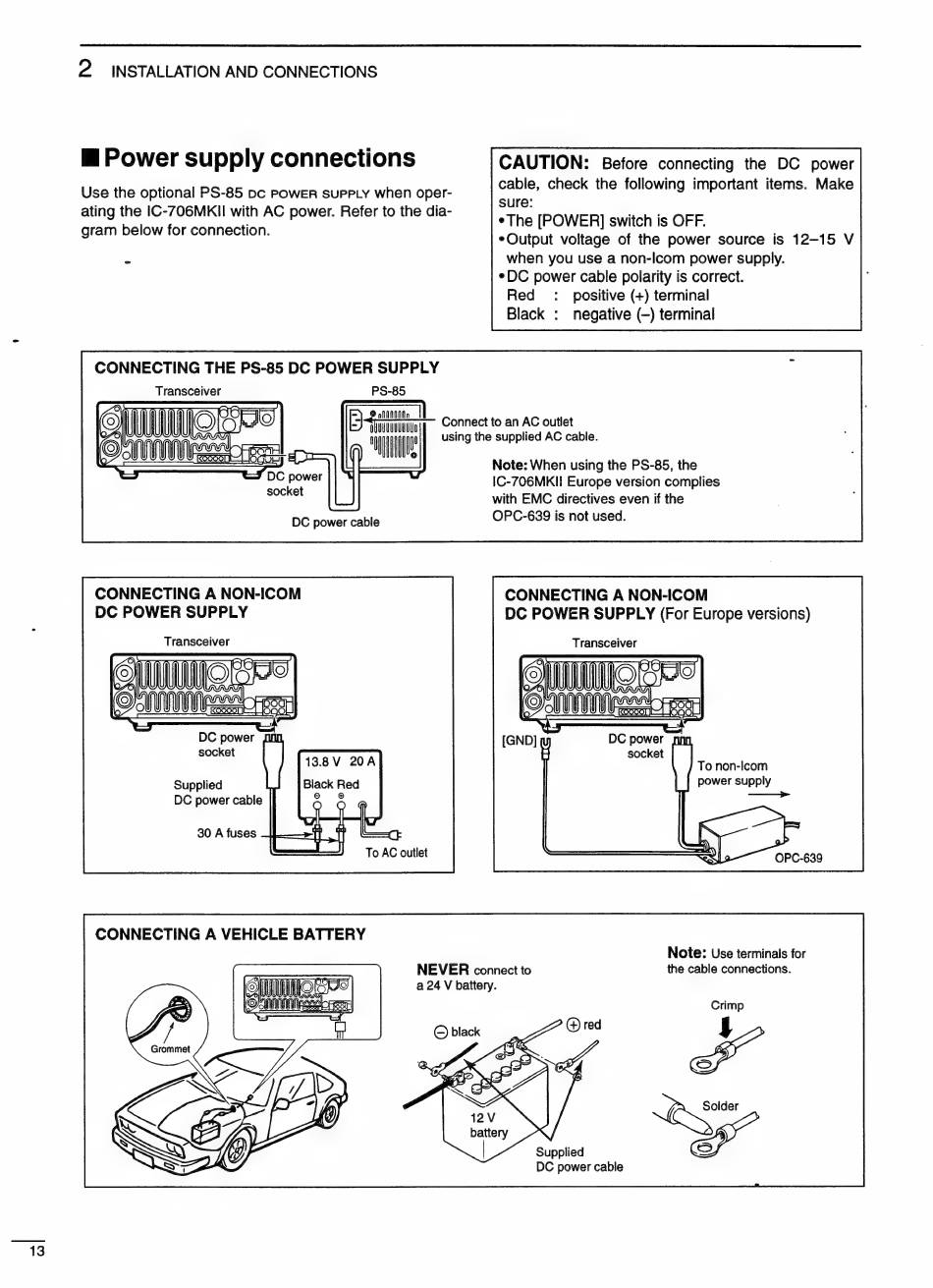

2 INSTALLATION AND CONNECTIONS
E Power supply connections
Use the optional PS-85 pc Power supPLy when oper-
ating the IC-706MKIl with AC power. Refer to the dia-
gram below for connection.
CAUTION: Before connecting the DC power
cable, check the following important items. Make
sure:
e The [POWER] switch is OFF.
eOutput voltage of the power source is 12-15 V
when you use a non-lcom power supply.
eDC power cable polarity is correct.
Red : positive (+) terminal
Black : negative (-) terminal
CONNECTING THE PS-85 DC POWER SUPPLY
Transceiver PS-85
© oNNNNANn
Duuni Connect to an AC outlet
using the supplied AC cable.
Note: When using the PS-85, the
IC-706MKII Europe version complies
with EMC directives even if the
DC power cable OPC-639 is not used.
= DC power
socket
CONNECTING A NON-ICOM CONNECTING A NON-ICOM
DC POWER SUPPLY DC POWER SUPPLY (For Europe versions)
Transceiver Transceiver
socket
To non-lcom
OPC-639
Note: Use terminals for
NEVER connect to the cable connections.
a 24 V battery.
Crimp
Supplied
DC power cable
