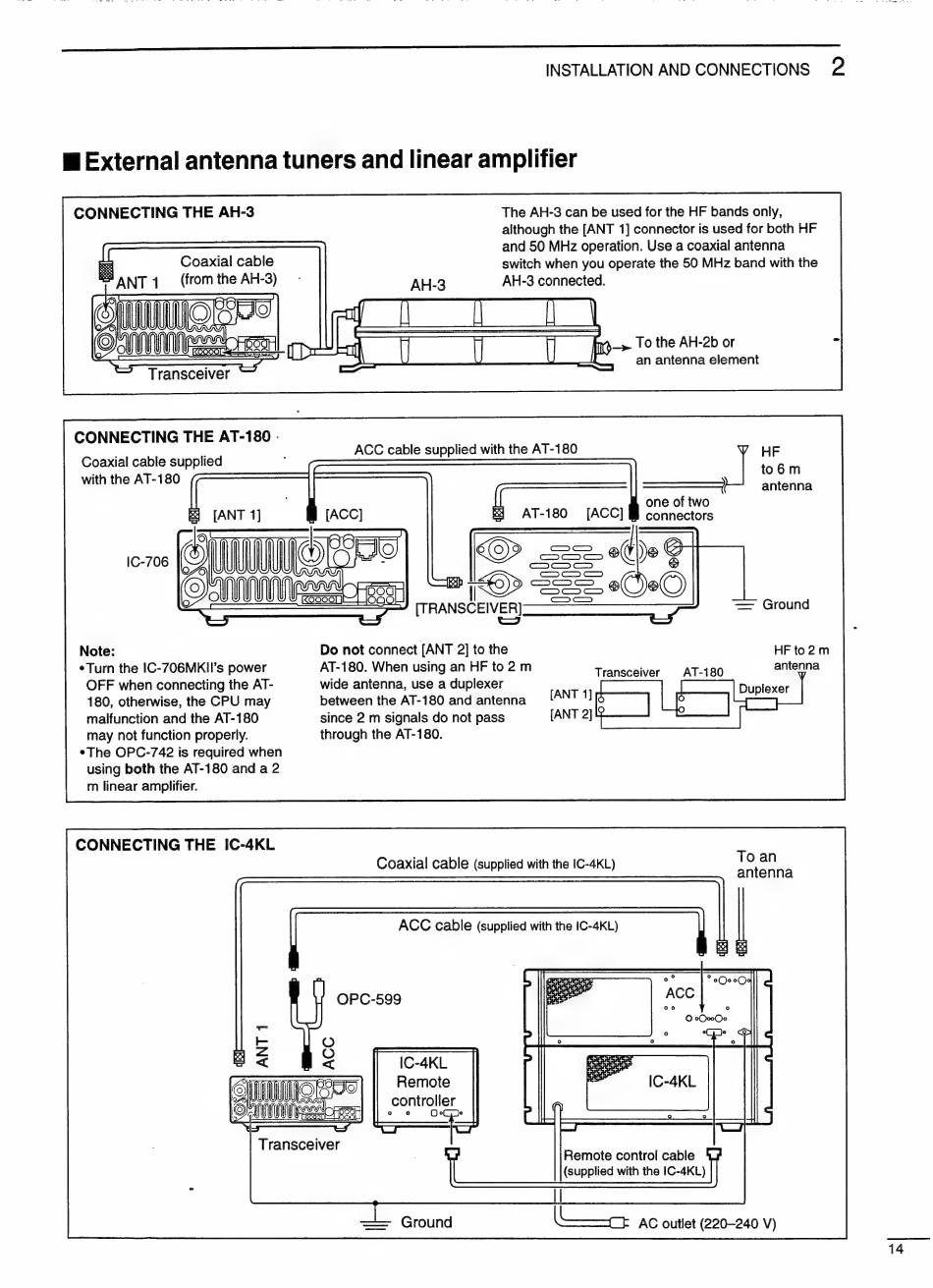

INSTALLATION AND CONNECTIONS 2
CONNECTING THE AH-3
Coaxial cable
(from the AH-3)
Transceiver
CONNECTING THE AT-180 -
Coaxial cable supplied
with the AT-180
Note:
e Turn the IC-706MKIl's power
OFF when connecting the AT-
180, otherwise, the CPU may
malfunction and the AT-180
may not function properly.
*The OPC-742 is required when
using both the AT-180 and a 2
m linear amplifier.
CONNECTING THE IC-4KL
Transceiver
The AH-3 can be used for the HF bands only,
although the [ANT 1] connector is used for both HF
and 50 MHz operation. Use a coaxial antenna
switch when you operate the 50 MHz band with the
AH-3 connected.
_ COS > To the AH-2b or
A
ft
U
U
œ
an antenna element
a
ACC cable supplied with the AT-180 HE
to6m
er antenna
one of two
connectors
AT-180 [ACC]
= Ground
HF to2m
antenna
Do not connect [ANT 2] to the
AT-180. When using an HF to 2 m
wide antenna, use a duplexer
between the AT-180 and antenna
since 2 m signals do not pass [ANT 2]
through the AT-180.
Transceiver AT-180
[ANT 1] Duplexer
To an
Coaxial cable (supplied with the IC-4KL)
antenna
ACC cable (supplied with the IC-4KL)
OPC-599
IC-4KL
Remote
controller
o o oqp?
Remote control cable
(supplied with the IC-4KL)
I
Uco AC outlet (220—240 V)
Ground
