8. Performing Transmission Tests
8.1 Coupler Check
The Coupler Check test conducts a transmission check using the Transmission Tool. The Coupler Check test establishes a baseline
transmission reading for the SoloVPE PLUS System. This will also measure the maximum transmission of the system. Quick Check
then takes a transmission reading and compares it with the Coupler Check results. The output displayed in the Quick Check window
is the percentage transmission achieved using Coupler Check as the baseline. Users can confidently determine that their system is
receiving acceptable overall transmission.
1. Press the Coupler Check button on the Instrument Control panel in the Validate VPT application, as seen in Figure 14.
2. A prompt will appear with instructions (see Figure 15). Follow the instructions to remove the Delivery Fiber from the
Translation Stage by turning the FC connector end of the Delivery Fiber counterclockwise (see Figure 16). Attach the FC end
of the Delivery Fiber to the Transmission Tool; be sure to align the notch on the Delivery Fiber to the keyway on the
Transmission Tool (Figure 17).
DOC0362 eRev. 1.0 [Publication Date]

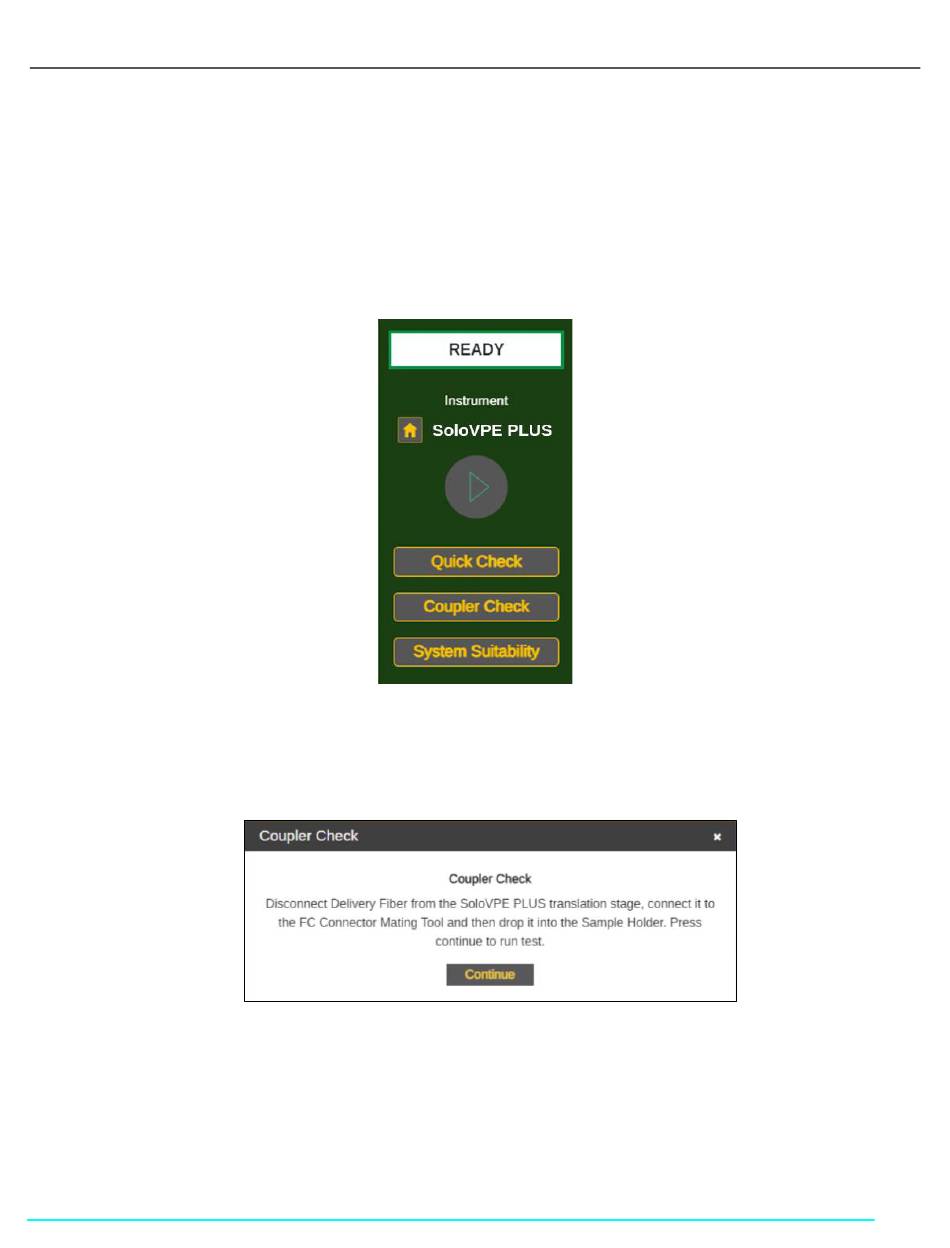

Figure 14. Validate VPT App: Instrument Control panel.

Figure 15. Coupler Check window prompt.
