CTech™ SoloVPE® PLUS System User Guide

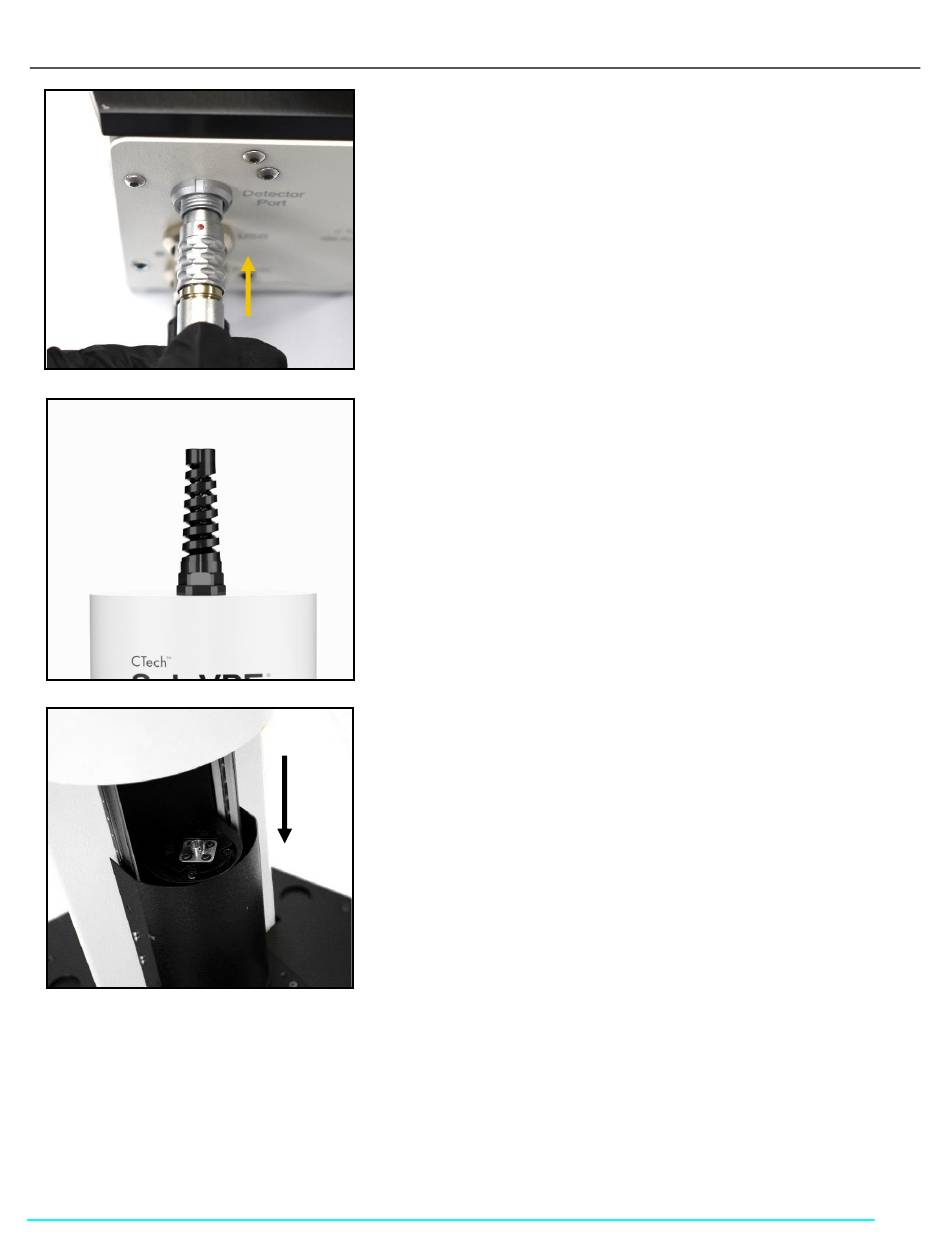

Step 7: Connect Detector Cable to SoloVPE PLUS instrument
The Detector Cable (EC0027) has two different connectors. The black plastic
connector is for the connection to the Cary 60. The silver connector is for the
connection to the SoloVPE PLUS instrument's back panel. The silver connector
is keyed.
To properly position the connector for insertion, align the red dot on the
connector to the top of the detector port on the back panel of the SoloVPE
PLUS device. Push firmly to make the connection to the back panel.
Set aside the black end of the USB cable to feed into the Cary 60 later.
Step 8: Attaching SoloVPE PLUS Strain Relief
The Strain Relief is shipped with the SoloVPE PLUS instrument but packed
separately. Attach the Strain Relief by screwing it onto the mating thread at
the top of the SoloVPE PLUS instrument.
Step 9: Slide Cover into Down Position
Before making the Delivery Fiber FC connection to the SoloVPE PLUS
instrument, slide the Tower Cover into the down position.
