CTech™ SoloVPE® PLUS System
7.3 SoloVPE Quick Set Fibrette Coupler
The Quick Set Fibrette Coupler holds the Fibrette Optical Component. The coupler mechanism consistently positions the Fibrette for
repeatable measurements. This component requires minimal maintenance and is replaced during annual PM service by a VPT
Support Specialist.
Quick Set Fibrette Couplers are not single-use items. It is not necessary to change this coupler frequently.

7.3.1 How to Remove Quick Set Fibrette Coupler Insert

Before initial installation or removal of a Quick Set Fibrette Coupler Insert, it is best to get assistance from a Repligen analytical
support specialist.
1. Raise the Tower Cover of the SoloVPE instrument to view the Quick Set Fibrette Coupler Insert. You will see its rounded
octagonal shape.
2. With your thumb and index finger, grip the black Quick Set Fibrette Coupler Insert Holder.
3. Rotate the Holder clockwise until it becomes free from the Translation Stage, as shown in Figure 9.
DOC0362 eRev. 1.0 [Publication Date]

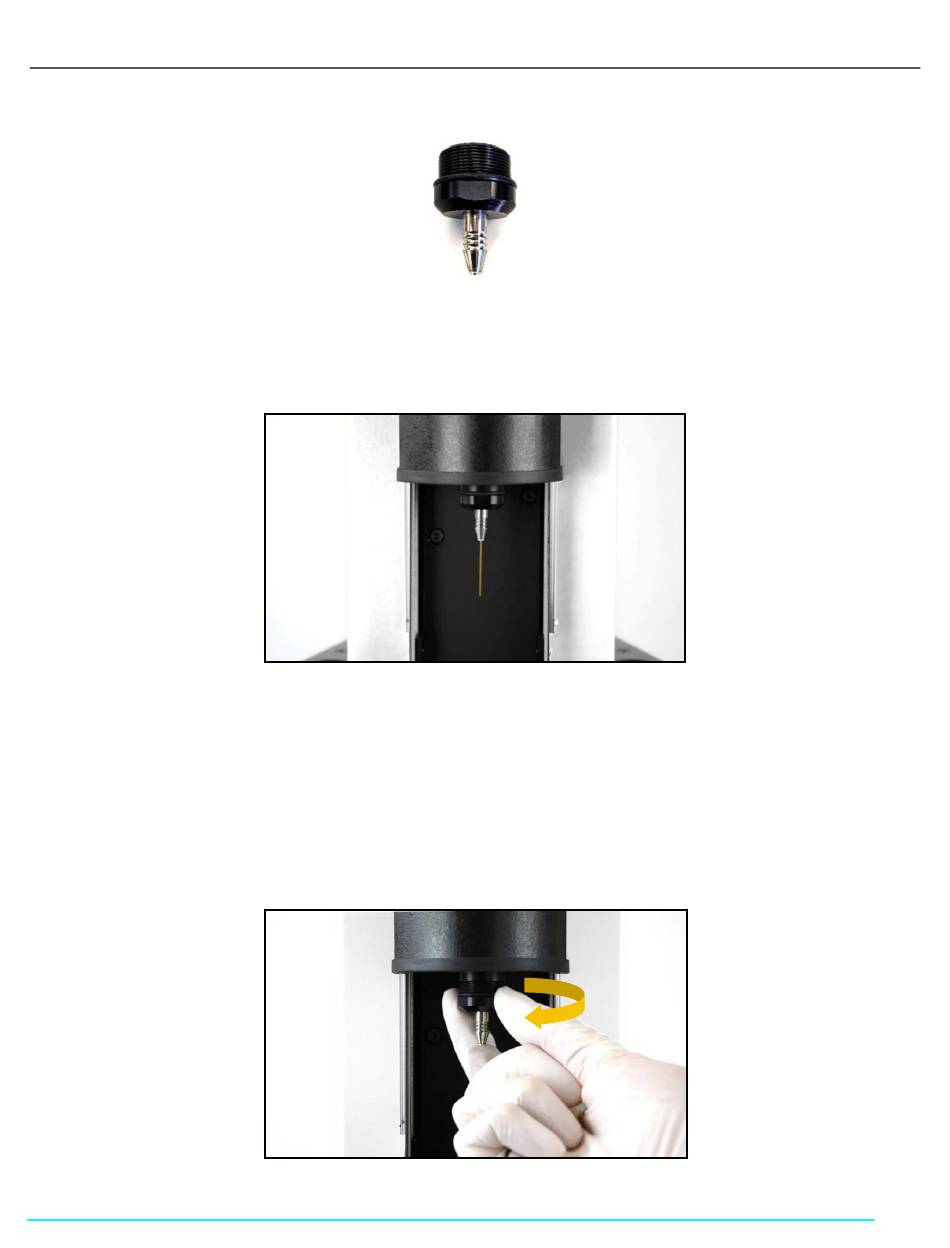

Figure 8. Quick Set Coupler with Fibrette Optical Component inserted.
