6. System Hardware Installation

Note: System installation should be performed only by a trained Repligen Field Service Engineer or authorized service provider.
Please read and understand the following instructions prior to making any connections. These step-by-step directions guide the user
through the process of making the four primary connections required between the computer, the Agilent Cary 60, and the SoloVPE
PLUS instrument.
Refer to the documents packaged with the computer and Cary 60 for further instruction on basic installation.
Below is the list of connections in the SoloVPE PLUS System, as well as a reference diagram for each cable and connection
connecting the SoloVPE PLUS instrument to the Cary 60 and computer.
Connections
USB
Power
Detector Port
Delivery Fiber

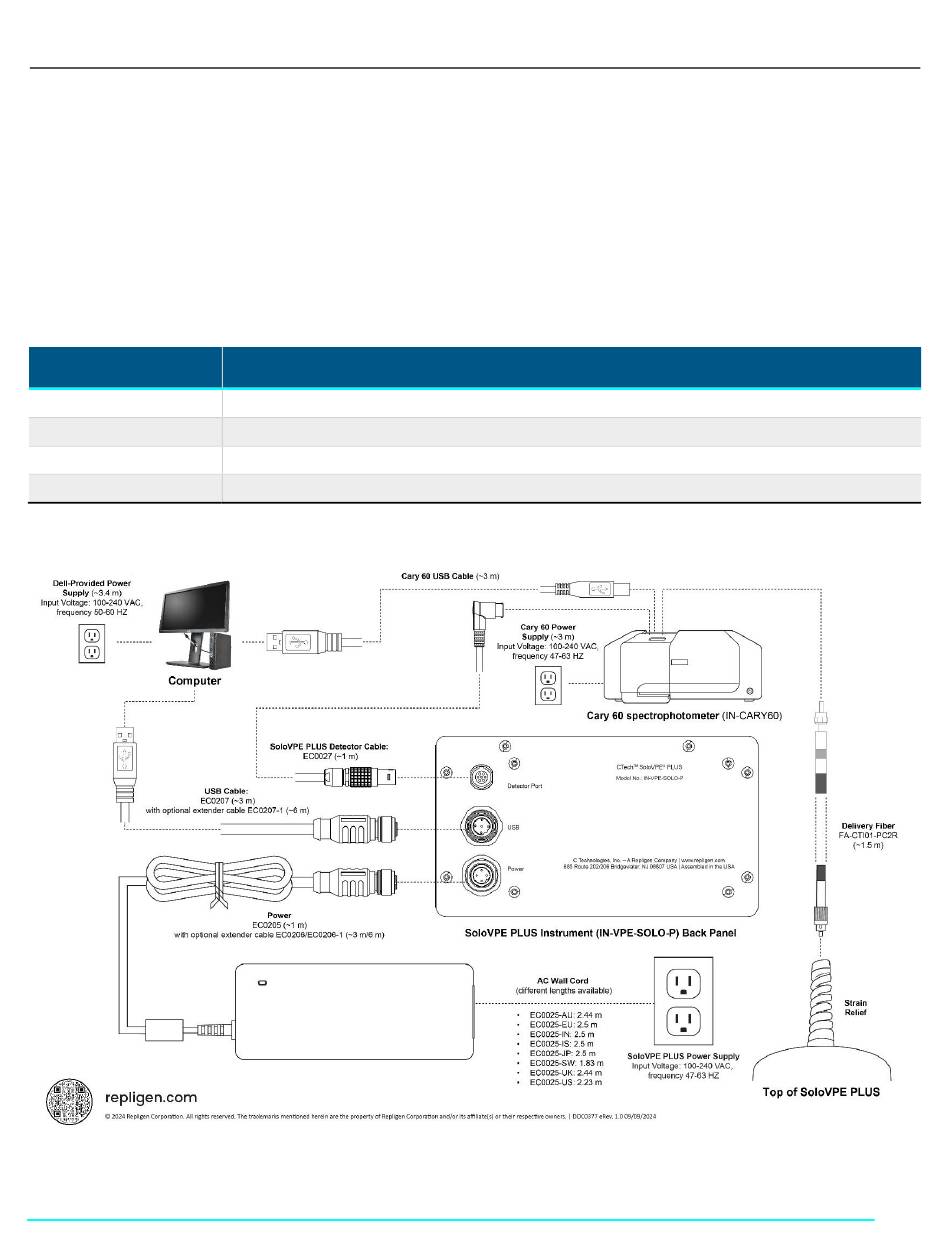

Figure 5. Diagram of SoloVPE PLUS cables and connections, including input voltages and part numbers.

DOC0362 eRev. 1.0 [Publication Date]
Description
Connects the SoloVPE PLUS instrument with the computer
Provides power to SoloVPE PLUS instrument
Provides power to the detector on the SoloVPE PLUS
Transmits light for spectroscopic measurements from Cary 60 to SoloVPE PLUS instrument
