CTech™ SoloVPE® PLUS System User Guide

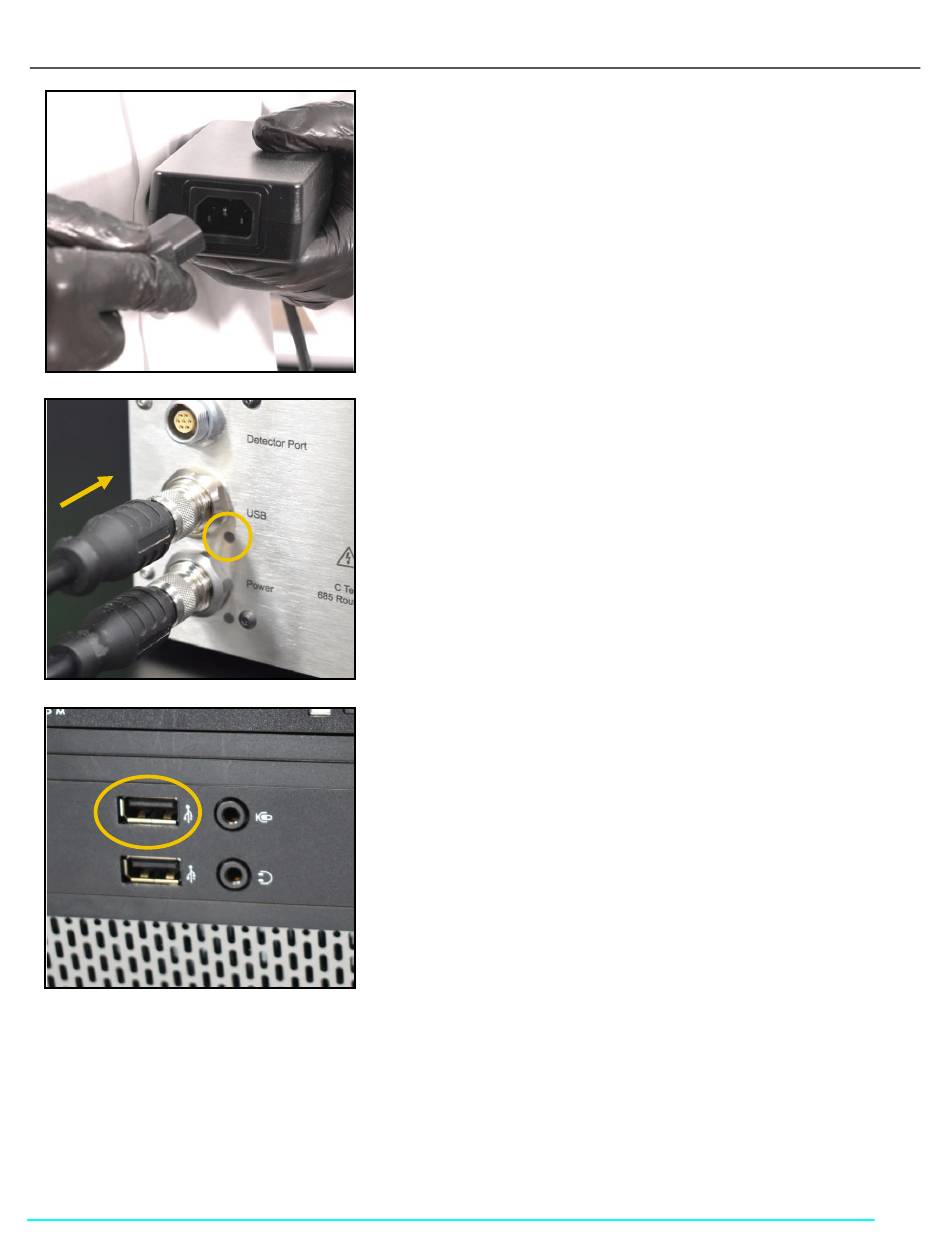

Step 4: Connect the Power Cable to the Power Brick
Connect the power cable to the power adapter brick (EC0025). Then plug the
opposite end into a power outlet with the approved input voltage (see Table 4.
Mains supply information or Figure 5).
Step 5: Connect USB Cable to SoloVPE PLUS Instrument
Connect the USB Cable (EC0207) to the back of the SoloVPE PLUS instrument.
Align the notch on the connector to the black dot on the back panel, push it
forward, and then tighten the metal cuff by rotating it clockwise.
Step 6: Connect USB Cable to Computer
Connect the other end of the USB Cable (EC0207) to one of the USB ports on
the computer.
