CTech™ SoloVPE® PLUS System
Notch

Figure 17. Connect Delivery Fiber to Transmission Tool.

3. Place the Transmission tool on top of the SoloVPE PLUS Detector Window (Figure 18).
4. Press Continue on the prompt window when ready. The Coupler Check will then be performed.
5. Once completed, the results are displayed in the prompt window. The user may add comments that will be recorded in the
Validate VPT Log.
6. During the Coupler Check, the system will assess the change in transmission compared to the previous Coupler Check.
•
If the Coupler Check result surpasses the change threshold, a prompt recommending a system cleaning will appear.
Perform the daily and weekly maintenance best practices, then retry the Coupler Check.
•
The threshold setting is configured within the App Configuration tab of Admin Settings. The default is 5.00%.
DOC0362 eRev. 1.0 [Publication Date]

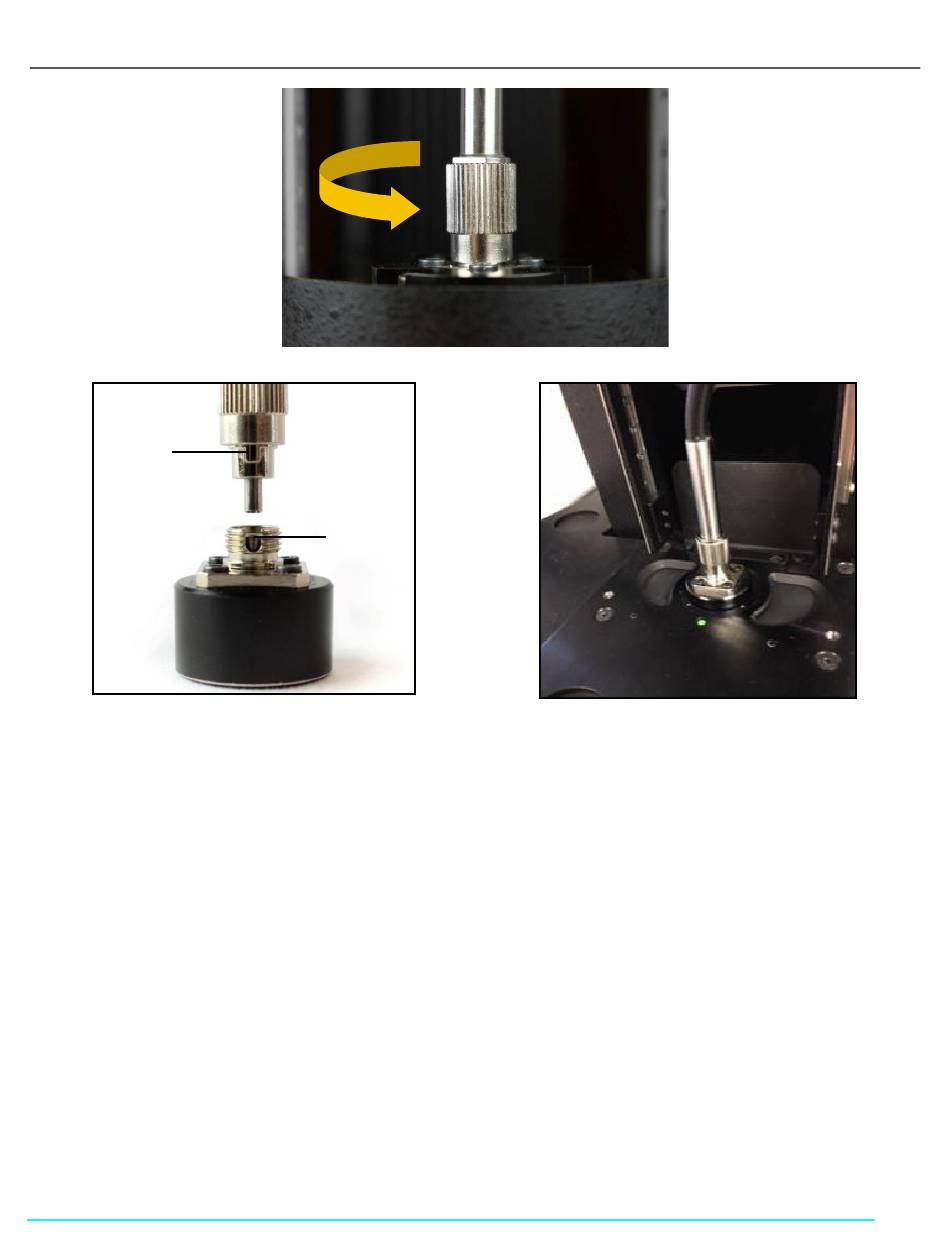

Figure 16. Disconnect Delivery Fiber from Translation Stage.

Keyway

Figure 18. Connect Transmission Tool to Translation Stage.

User Guide
31
