Only a certified Repligen analytical representative should perform the system installation. Prior to starting, please clear and
designate the laboratory bench space for the intended setup of the SoloVPE PLUS System. The SoloVPE PLUS instrument and Cary 60
may be set up in either of the configurations shown in Figure 7.

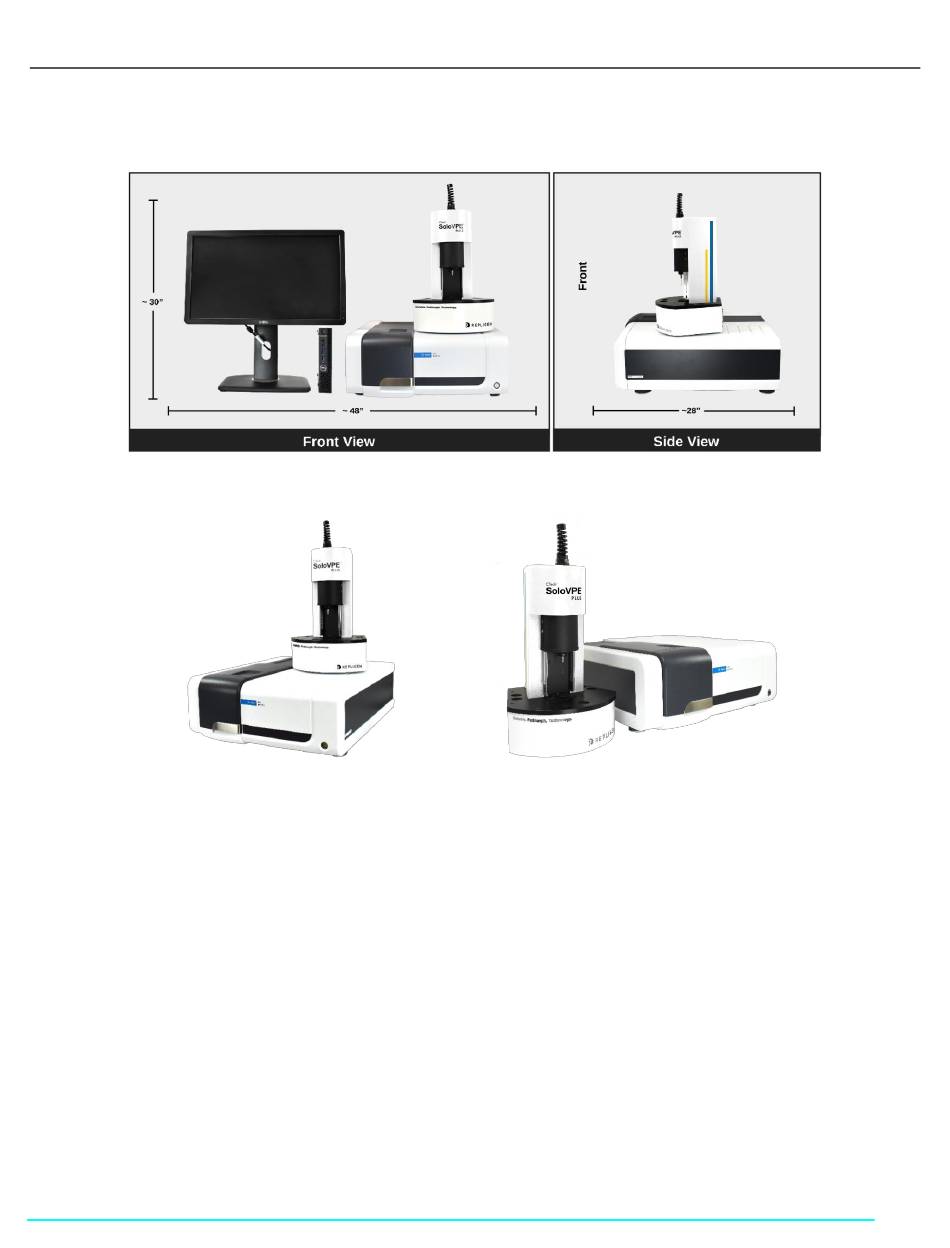

Figure 6. Dimensions of SoloVPE PLUS instrument, Cary 60 spectrophotometer, and computer.

Configuration 2: Adjacent to the Cary 60
Configuration 1: On top of the Cary 60

Figure 7. Optional configurations of SoloVPE PLUS instrument and Cary 60.

6.1 System Hardware Installation: Step-by-Step
Note: System installation should be performed only by a trained Repligen Field Service Engineer or authorized service provider.
