Figure 3. Solovpe Plus Parts And Components (Cover Up) - REPLIGEN CTech SoloVPE PLUS User Manual

CTech™ SoloVPE® PLUS System
Holder Lock
Sample Vessel
Holder Port
Locking Vessel
Holder
Indicator
5.2 Cary 60 Spectrophotometer
The Cary 60 UV-Vis spectrophotometer serves as the light source and electrical power supply for the SoloVPE PLUS instrument. The
Cary 60 uses a Dual Use Fiber Optic Coupler, provided by Repligen, to transmit light through the Delivery Fiber to the SoloVPE PLUS
instrument.
Note: Please reference documentation included with the Cary 60 spectrophotometer and computer for component-specific
requirements, instructions, and safety considerations.
5.3 Dual Use Fiber Optic Coupler
The Dual Use Fiber Optic Coupler couples light from the Cary 60 into the Delivery Fiber. Refer to the Dual Use Fiber Optic Coupler
User Manual DOC0047 for more information.
5.4 ViPER ANLYTX Software
The ViPER ANLYTX software controls all aspects of configuration, data acquisition, analysis, and reporting. The overall platform is
designed with an app-based architecture where each app is designed for a specific purpose.
For more detailed information about the software, please see the CTech ViPER ANLYTX User Guide DOC0343.
DOC0362 eRev. 1.0 [Publication Date]
Fibrette® Optical
Component
Vessel

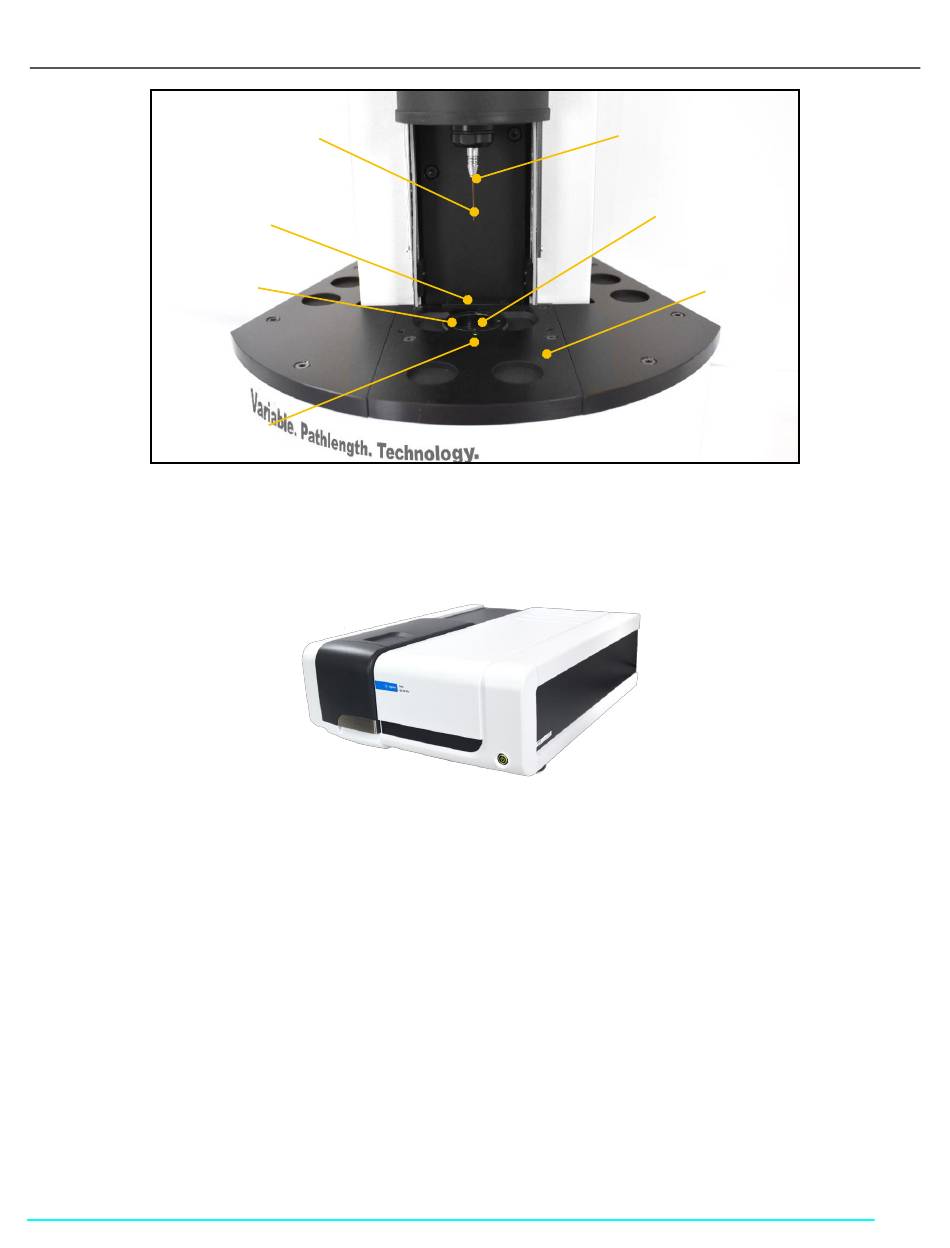

Figure 3. SoloVPE PLUS parts and components (cover up).

Quick Set
Fibrette Coupler
Detector Window
Sample
Platform
User Guide
10
