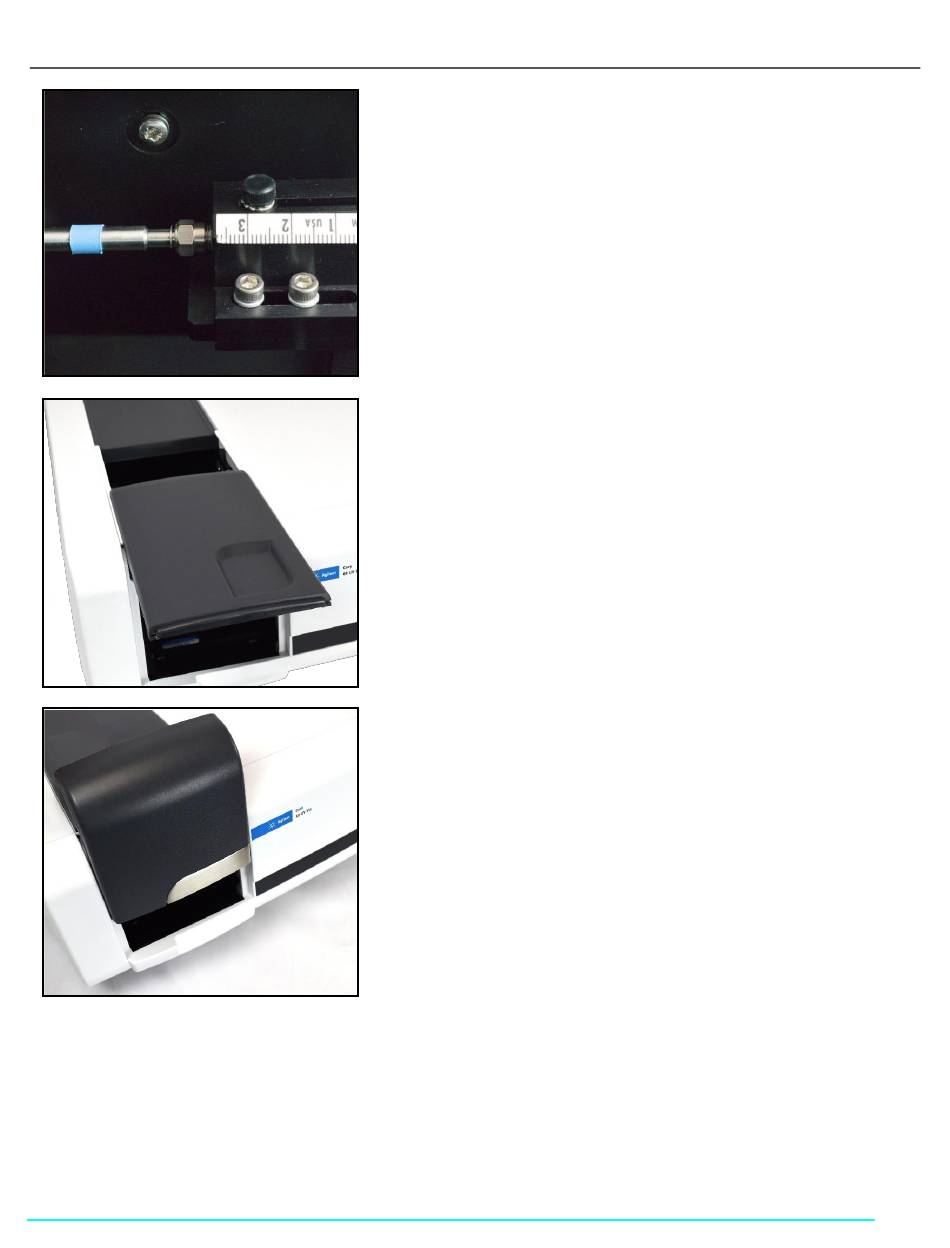

Step 16: Connect Delivery Fiber to Fiber Optic Coupler
With the FOC installed, uncap the Delivery Fiber that was fed into the sample
compartment. Connect the SMA end of the Delivery Fiber to the threaded
splice bushing at the back of the FOC. Use the hex nut to securely tighten the
connection.
Note: The alignment procedure must be followed in the Dual Use Fiber Optic
Coupler User Manual DOC0047 to maximize transmission through the
Fiber Optic Coupler.
Step 17: Reinstall Cary 60 Sample Compartment Top Cover
Carefully slide the Cary 60 sample compartment top cover back into place.
Slide the cover back far enough to allow installation of the sample
compartment front cover.
Step 18: Reinstall Cary 60 Sample Compartment Front Cover
Position and slide the sample compartment cover down into place. Once fully
inserted, reposition the top cover to close the compartment.
