Flow Setting - SMC Networks PF3W3 Series Operation Manual

Flow Setting

Measurement mode
The mode in which the flow is detected and displayed, and the switch function is operating.
This is the basic operating mode; other modes should be selected for set-point and other function setting
changes.
∗: The outputs will continue to operate during setting.
∗: If a button operation is not performed for 30 seconds during the setting, the display will flash (This is to prevent the setting from
remaining incomplete if, for instance, an operator were to leave during setting).
∗: 3 step setting mode and Function selecting mode are reflected on each other.
Display of sub screen

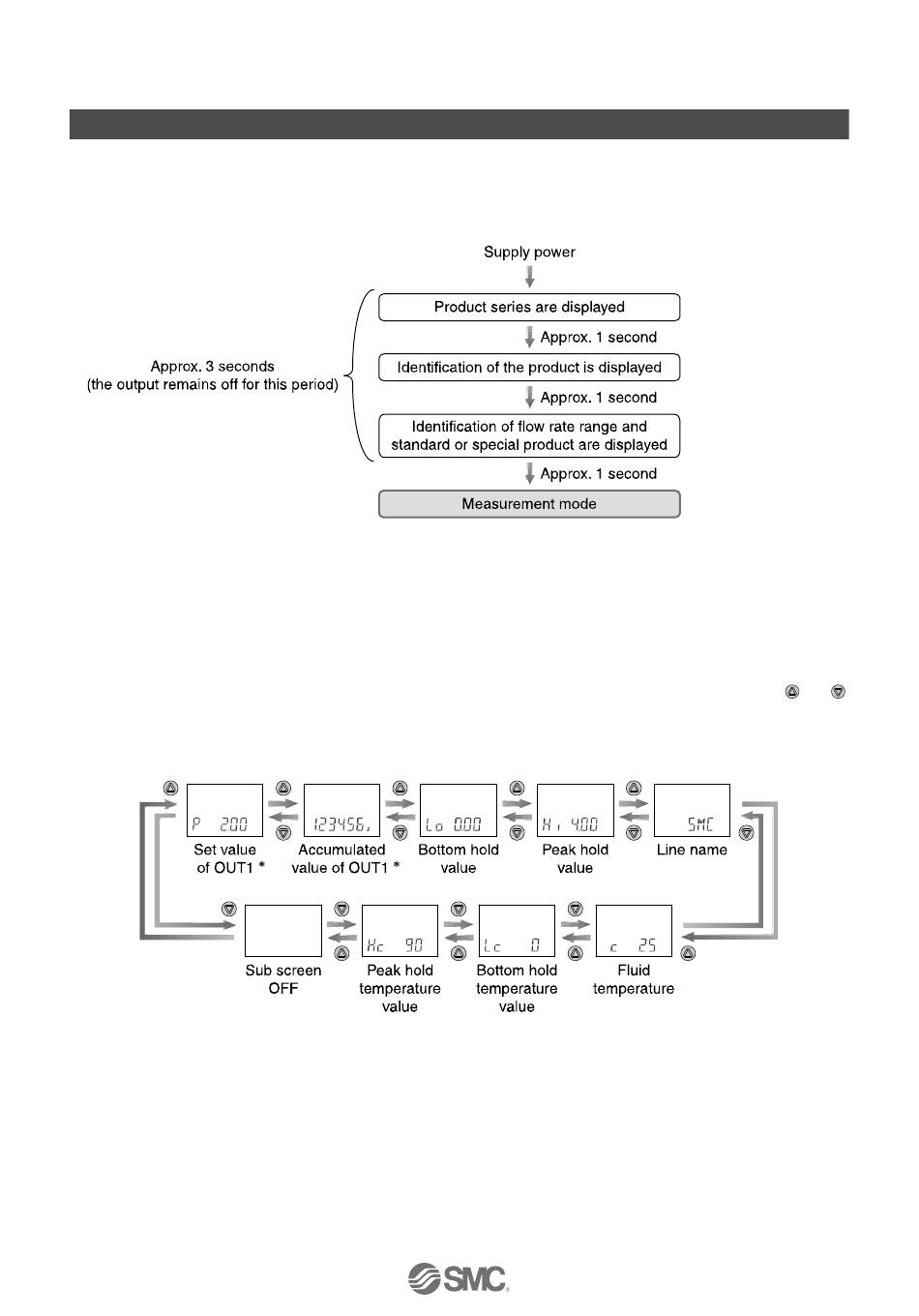

In measurement mode, the display of the sub screen can be temporarily changed by pressing the
buttons.
After 30 seconds, it will automatically reset to the display selected in [F10]. (Refer to page 43.)
(Example shown is for 4 L/min type)
∗: The set values and accumulated output of OUT2 cannot be displayed.
