■[F10] Selection of sub screen
The display shown on the sub screen during measurement mode can be set.
•Switch point value display: Displays the set value for switch point of OUT1.
•Accumulated value display: Displays the accumulated value of OUT1.
•Bottom value display: Displays the minimum measured flow rate value since the last reset.
•Peak value display: Displays the maximum measured flow rate value since the last reset.
•Display of line name: Displays the name of the line.
•Display of fluid temperature: Displays the temperature of fluid.
•Temperature bottom display: The bottom value of fluid temperature displayed.
•Temperature peak display: The peak value of fluid temperature displayed.
•OFF: Displays nothing.

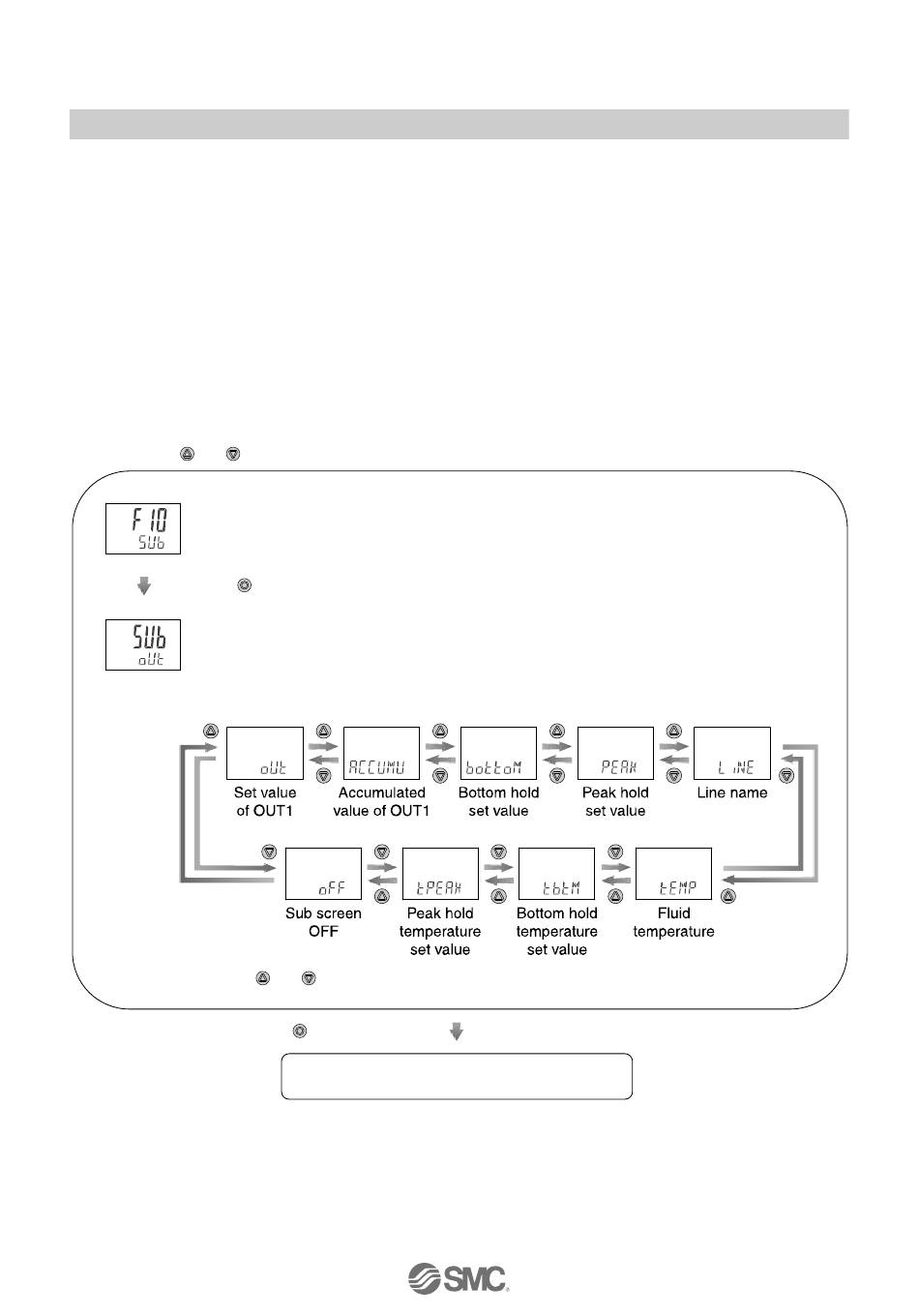

<Operation>
Press the or
The sub screen displays [SUb] and the current set value alternately.
Press the
The sub screen displays the current set value.
Sub screen
Press the
Press the
(The set value for the switch point of OUT2 can not be displayed.)
(The accumulated value of OUT2 can not be displayed.)
button in function selection mode to display [F10] on the main screen.
button.
or button to select the display.
button to confirm.
[F10] Selection of sub screen is completed.
Return to the function selection mode.
